China 500kg/H Electric Steam Generator for Chemical Use
| Price: |
US $ 37600-37800/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
China 500kg/h Electric Steam Generator for Chemical UseI. Product Introduction:
Specifications: LDR Series Electric Steam Generator
1. Certificate: CE (PED 97/23/EC)
2. Excellent service
3. High efficiency
A full-automatic PAC Kage type, casing is light insulating. LDR type Electric Boiler is made of stainless steel tube with chromium-nickel steel electric heating element, thus it is reliable, heating unit, both working life of the electric heating unit and the overall property of boilers increase.
II. Features:
1. Mechanical-electrical integration design make the boiler in small size, light weight, easy for installation and carriage.
2. Adopt the most reliable "water & electricity separation"structure, which effectively prevent the accidents of electricity leakage, fully guaranteed the users' security. In addition, users can carry out the maintainence without releasing any water from the boiler.
3. Adopts electric heating ceramic tubes with special material made casing which are changeable without releasing water from the boiler. High voltage and Low heat load surface effectively prevent the scale formation and prolong boiler's working life.
4. Using step-by-step heating elements, that reduce the impact on the power fluctuation, ensure the boiler runs stably.
5. Automatic temperature tracking, full automatic control
6. Apply various fault alarm devices, such as power leakage protection, limit water level protection etc...III. Technical Data:| Model | LDR0.1-0.8 | LDR0.15-0.8 | LDR0.2-0.8 | LDR0.25-0.8 | LDR0.3-0.8 | LDR0.4-0.8 | LDR0.5-0.8 |
| Item | Unit |
| Rated Steam Capacity | Kg/h | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Rated Working Pressure | MPa | 0.8 (1.0, 1.25, 1.6) |
| Saturated Steam Temperature | °C | 175 (184, 194, 204) |
| Input Power | KW | 72 | 108 | 144 | 180 | 216 | 288 | 360 |
| Input Current | A | 113 | 169.2 | 235 | 270 | 329 | 432 | 547 |
| Voltage | V/Hz | 380,50 (Made to order) |
| Water Inlet | DN | 15 | 25 | 25 | 25 | 25 | 25 | 25 |
| Steam Outlet | DN | 25 | 25 | 32 | 32 | 32 | 32 | 40 |
| Blowdown Valve | DN | 25 | 25 | 32 | 32 | 32 | 32 | 32 |
| Safety Valve | DN | 25 | 25 | 25 | 32 | 32 | 32 | 40 |
| Dimension | mm | 1020×1230
×1750 | 1250×1400×1870 | 1320×1510×2100 | 1380×1600×2360 |
| Weight | Kg | 280 | 320 | 410 | 650 | 770 | 850 | 960 |
IV. Details for 500kg/h Electric Steam Generator:4.1High Quality Accessories
1) Pump: NIKUNI-JAPAN
2) Water level probe: OMRON-JAPAN
3) Material of heating elements: Incoloy 800
4) Electrical components: Schneider, LG

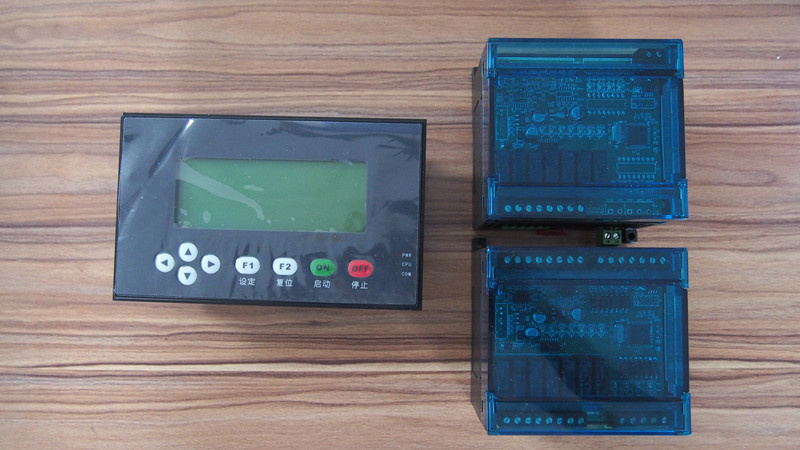

4.2) Intelligent LCD Control Panel:
1) Heating stage: 5(start one by one)
2) Time: Start operation and shut down
3) Fault: Self detection & Alarm
V. Ready for Packing:
| Prod Model: |
LDR0.5-0.8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
China 500kg/H Electric Steam Generator for Chemica |
| Paint: |
Blue, White |
| Steam Capacity: |
500kg/H |
| Saturated Steam Temperature: |
175°c |
| Main Power Source: |
3p/220-600V/50-60Hz |
| Thermal Efficiency: |
98% |
| Lead Time: |
25days/Set |
| Rated Working Pressure: |
0.8MPa |
| Condition: |
New |
| Port Of Loading: |
Shanghai, China |
| Function: |
Steam Boilers |
| Fuel: |
Electric Heating |
| Installation: |
Packaged Boiler |
| Media: |
Steam |
| Drum Placement: |
Vertical Boiler |
| Pressure: |
Low Pressure |
| Manufacturing Level: |
C |
| Structure: |
Tubuless |
| Water Circulation: |
Boiling Boiler |
| Burning Style: |
None |
| Usage: |
Reactor, Autoclave.... |
Zhangjiagang Future Boiler Manufacture Co., Ltd., is a National boiler manufacture license enterprise, which has the certified for the certificate of ISO9001: 2000 quality assurance system. Future Boiler specializes in Oil (Gas) Fired Steam Boiler, Electric Steam Boiler, Small Electric Steam Generator, Electric Hot Water Boiler, Oil(Gas) Fired Hot Water Boiler, Marine Boilers, Boiler Accessories & Auxiliary Machines, etc...We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.
The company enjoys a good reputation in domestic and abroad by the outstanding quality and consummation service, our products already exported to more than 50 countries and regions, including USA, Europe and other developed countries. Continues growing market needs numerous innovative product concepts.
"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable advancing pace, and in getting along with customers, partners, internal staff and competitors.
