Home Generator Products China 42.5kVA Three Phase Brushless Synchronous Alternator (JDG184J)

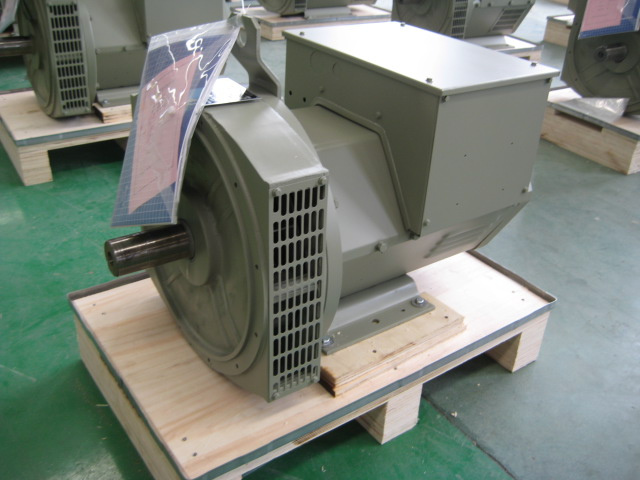

China 42.5kVA Three Phase Brushless Synchronous Alternator (JDG184J)

China 42.5kVA Three Phase Brushless Synchronous Alternator (JDG184J)
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 5/Set
Pay Type: L/C,T/T
1) Power range: 34kw/42.5kVA.
2) Brushless Synchronous A. C. Alternator,
3) Stamford Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
Features
1) A. V. R. (Automatic Voltage Regulator)controlled
2) 12 wire reconnectable winding;
3) 100% famous brand copper wire;
4) 2/3 pitch windings avoid excessive neutral currents;
5) Dynamically balanced rotor and sealed-for-life bearings;
6) Permanent Magnet Generator(PMG) is available as an option;
7) Reliable supplier with Quality Materials, and strict Quality Controller (by QC Dept. )
8) Easily coupled with power networks or other genetator sets,
9) Balance rotor with single or two sealed ball bearings available,
10) Convenient installation and easy maintenance, easy access to terminal, rotating rectifier and coupling bolts,
11) Wide range of flange adaptor and single bearing coupling disc,

Parameters
1) Rated voltage 400V, 110V-690V for option
2) Three phase, single phase for option
3)50Hz/1500rpm and 60Hz/1800rpm for option
3) Drip-leak-proof structure: IP22/23 protection class
4) Insulation class H
5) Adjusting rate of stable voltage≤ 1%
6) Transient state voltage≤ -15% - +20%
7) Wave aberration rate of voltage THD≤ 3%
8) Telephone harmony wave factor of telephone THF≤ 2%

Standards&Certifications
1) GODLIKE generators are comformity to International standards of IECBS 5000, IEC 34,
2) GODLIKE generators are Certified of CCC, CE, ISO9001, SGS

Solutions
1) Easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc,
2) Widely used in Industry, Commercial, real estate, hospital, hotel, railway, telecommunications, datacenters and mining etc

Warranty:
2 years, Godlike Power DHL new parts for replacement within 3 days upon customer's complaint.
Catalogue    of  JDG  series  alternators
Model 50hz  /  1500rpm/3  phase 60  hz/  1800rpm/  3  phase
190  -  454V 110-240V/230-690V
KVA KW KVA KW
JDG  184E 22.5 18 30 24
JDG  184F  27.5 22 35 28
JDG  184G 31.3 25 37.5 30
JDG  184H 37.5 30 46.9 37.5
JDG  184J 42.5 34 50 40
Parameter
Frequency: 50Hz 60Hz
Power  range: 8-1250kva  at  50Hz 10-1500kva  at  60Hz
Rotational  speed: 1500rpm  at  50Hz 1800rpm  at  60Hz
Rated  voltage: 110-690V
Insulation  class: H
Temperature  class: H  (can  meet  class  F  working  and  standby  working)
Bearing: single  bearing  two  bearing
Protection  class: IP23
Features: 4  poles;
AVR  controlled;
12  wire  reconnectable  winding;
100%  famous  brand  copper  wire;
2/3  pitch  windings  avoid  excessive  neutral  currents;
dynamically  balanced  rotor  and  sealed-for-life  bearings;
110%  loading  can  work  1  hour  every  12  hours;
Permanent  Magnet  Generator(PMG)  is  available  as  an  option;
Terms
MOQ: 2  units
Packing: in  strong  plywood
Color: standard  BAL7030  (according  to  the  customer' s  request)
Load  Port: Shanghai  Port,   China
Lead  time: about  7days(1  week);
Warranty: 2  years

Prod Model: JDG184J
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire: 100% Pure Copper Wire
Cooling Method: Air Cooled
Installation Method: Fixed
Output Type: AC Three Phase
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.

Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.

GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.

GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.

Warmly welcome to GODLIKE.
