1. Working principles:

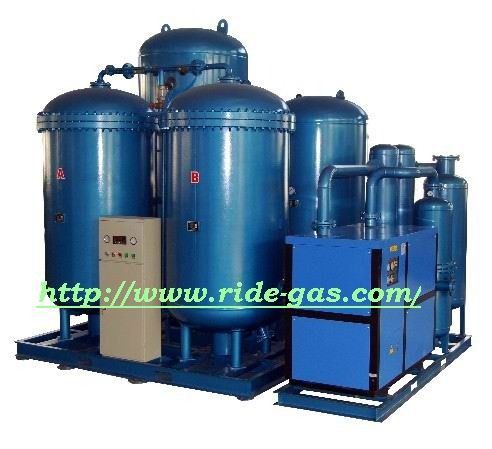

RD series oxygen generators are based on the PSA principles using high quality zeolite molecular sieve as adsorbent to get oxygen from the air in certain pressure. The compressed air is pressed and Decompressed desorption in the absorber adsorption after purifying and drying. Due to the aerodynamics effect, nitrogen in the zeolite molecular sieve pore diffuse more quickly than oxygen, oxygen is adsorbed by zeolite molecular sieve priority, oxygen enrichment in gas phase to form oxygen products. And then after decompression to atmospheric pressure, sorbents achieve regeneration by adsorption and desorption of nitrogen and other impurities. Usually there are two adsorption Towers in the system, one is used to adsorb and produce oxygen the other is used to adsorb and regenerate. Through the PLC controller controls the pneumatic valve open and close to keep alternating between the two towers, then we can achieve the purpose of getting continuous production of high-quality oxygen. The whole system consists of the following parts: Compressed air components, air tanks, oxygen and nitrogen separator, oxygen buffer tank
2. Technical index:
Oxygen capacity: 3-300N3/h
Purity: 91%-95%
Outlet pressure: 0.2-0.3Mpa (adjustable)
3. Features:
3.1 quick and convenient start and stop
3.2 low investment and energy consumption
3.3 high automation
3.4 simple operation and maintenance
3.5 short installation period and small ground treatment workload
Ride is a company specialized in the manufacturing of PSA nitrogen-producing unit, PSA oxygen-producing unit and compressed air purification equipment to provide gas equipment with world top-notch quality for our clients. Our products for operation mainly cover the following: PSA nitrogen-producing unit, PSA oxygen-producing unit, air-purification equipment, micro-heat regenerating dryer, heat-free regenerating dryer, freeze dryer, filter and controller with over 200 specifications for the applications in the fields of metal heat treatment, food, medicine, chemical industry, electronics, new material, glass, petroleum, aviation and space industry etc.
Ride as a manufacturer with rich experience and technical skills, consultations for model selection and analysis on operation conditions for the clients can be made by its sales engineers for scientific, reliable and economical recommendation service in accordance with different gas application requirements and application conditions; Our individual products are fully shown with advanced technology and state-of-the-art manufacturing adopted by our production staff and technical management personnel with strong technical support; Our after-sales service system and customer service concept ensure that every piece of equipment put into operation under the optimal working conditions.
