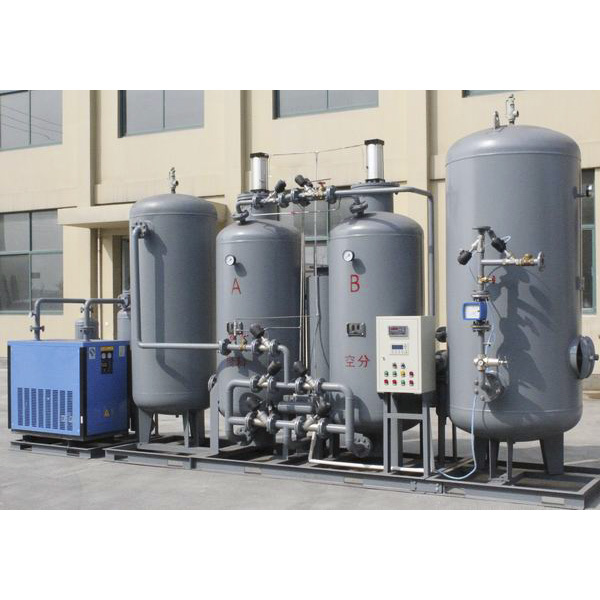

Chemical Oxygen Generator (KSO-10)

Chemical Oxygen Generator (KSO-10)
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: T/T,D/P
KSO PSA oxygen generator Principle of operation KSO PSA oxygen generator chooses high quality zeolites molecular sieve as adsorbent, and make use of variable pressure swing adsorption principle, then get the oxygen from compressed air directly. 1. Compressed air via air purification system to remove impurities like oil, solid dust and so on, then enter into adsorption tower equipped zeolite molecular sieve. As zeolite molecular sieve has the characteristic of selective adsorption, nitrogen and carbon dioxide, steam is adsorbed by molecular sieve, while oxygen has a high spread rate, thus the oxygen go through adsorbent and gets separated. 2. When the impurities like nitrogen adsorbed in adsorption tower arrives at a certain extent, reducing pressure to make zeolite molecular sieve desorb, then the adsorbent will regenerate, so the adsorbent can get cycle use. Technical characteristics 1. Unique molecular sieve protective measures so as to lengthen the service life of carbon molecular sieve. 2. Self-reliance type cylinder pressure device can avoid high-speed airflow rushed out, it can not cause of molecular sieve pulverization phenomenon. Equipped with the limit settlement alarm system, when it reach the floor level of journey, the equipment will sound and light alarm by itself. 3. Configureed DCS remote control system interface, it can monitor the system operatie condition through the computer. 4. Intelligent interlocking nitrogen vent device can guarantee the quality of nitrogen. 5. Perfect process design and excellent energy conservation characteristics reduce the cost of gas. 6. Reasonable structure design make the transportation, sling and installation very convenient. 7. Selecting the safe and reliable control components, so the equipment can run stable and reliable, it also has various fault alarm. 8. It operates easily, Runs Stably, , and has a high degree of automation, can realize no one operates. 9. Choose aluminum alloy material, module assembly, it can according to the user actually covering area to layout, only need an area of small.
Model O2 Output Effective gas consumption Air purification system
(Nm3/h) (Nm3/min)
KSO_5 5 1 KJ_1
KSO_10 10 2.2 KJ_2
KSO_20 20 4.3 KJ_6
KSO_40 40 8.5 KJ_10
KSO_60 60 12.5 KJ_12
KSO_80 80 16.5 KJ_20
KSO_100 100 21 KJ_20
KSO_150 150 31 KJ_30
KSO_200 200 42 KJ_40
Prod Model: KSO-10
Markets: Southeast Asia,Africa,Mid East,Eastern Asia
Brand: Juke
Dew Point: Less Than- 40 Centigrade(in Normal Pressure)
Pressure: 0-0.5 Mpa
Purity: 90%-94%
Use: Chemical, Food Industry, Pharmaceutical Ind
Model: Kso
Hangzhou Juke Air Separator Installation Manufacture Co., Ltd. is a high-tech enterprise established in 2008. We are specialized in the research, development and manufacture of nitrogen generators, oxygen generators, compressed air dryers, and so on. Our products are widely applied to petroleum chemical, metallurgical coal, electronic electricity and biomedical industries.

We have a professional and experienced technical development team which is willing to design and manufacture products with both standard and customized specifications. All of our products must be 100% tested to ensure their functionality, reliability, security and durability before shipment.

During the past few years, our priority has always been "customer services and customer satisfaction". We have done a lot to raise our quality level and have striven to establish a sound quality management and guarantee system. Furthermore, our company has attained ISO9001: 2008 Quality Management System certificate.

By virtue of excellent energy saving technologies and unremitting efforts of Juke people, we have reasons to believe that Juke will become the technology leader in this industry. Quality is our life, prestige is our basis and service is our cornerstone! Juke is willing to work hand in hand with friends from all circles to create a bright future.
