Advantages
A: Stability, reliability and easy-service
B: Low operating and maintenance cost
C: Widely used, location to meet customer needs
D: Easy-installation, easy-operation and maintenance
General Features
1. All qualified generator sets are subjected to a comprehensive performance test which includes 50% load, 75% load, 100% load, 110% load and to check, verify that all control systems, alarm and shut-down protection.
2. Equipped with battery charger and 24V high performance maintenance-free lead-acid starting
Batteries and connecting cables.
3. Equipped with industrial silencer and flexible exhaust hose.

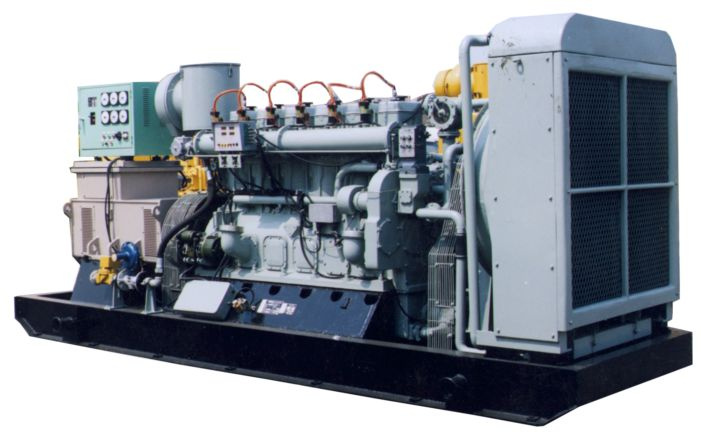

Generating set general Model |
ZY40GFT |
Structure |
integral |
Exciting method |
AVR Brushless |
Rated Power (kW) |
40 |
Rated Current(A) |
72 |
Rated Voltage(V) |
400/230 |
Rated Frequency(Hz) |
50 |
Rated Power Factor |
0.8 LAG |
No load voltage setting range |
95%-105% |
Steady state voltage regulation rate |
≤±1% |
Transient state voltage regulation rate |
≤-15%_+20% |
Voltage fluctuation rate |
≤3s |
Steady state frequency regulation rate |
≤±0.5% |
Transient state frequency regulation rate |
≤±10% |
Frequency stabilization time |
≤5s |
Line-voltage waveform sinusoidal distortion rate |
≤2.5% |
Gas Engine |
Model |
NR65D5 |
Type |
In line, 4 strokes, electric control ignition, pre-mixed stoichiometry burn |
Cylinder number |
6 |
Bore x Stroke (mm) |
115×125 |
Total displacement (L) |
6.5 |
Rated Power (kW) |
50 |
Rated Speed (r/min) |
1500/1800 |
Speed Regulation Mode |
Electrical |
Starting Mode |
Electrical |
Fuel type |
Biogas |
Overall dimension (L x W x H)(mm) |
2200×840×1300 |
Net weight (kg) |
1000 |
Wincom Industrial Co., Limited. Established in 1985, covers an area of 28, 000 square meters, 188 engineers and 290 workers. We produce 8kw to 2000kw diesel generator, gas generator and brushless alternator. The generators are equipped with CUMMINS, Volvo, DEUTZ brand engine and Stamford, Marathon and our own alternators. We have CE certificate and export to over 30countries around the world now
We have produced generators for nealy 30years old. The annual prodution capacity is more than 26, 000sets now. "ZY is our brand. It enjoys superior quality and professtional test. The global service is 18months. "ZY" brand generators are warmly welcomed by the customers.
We wish to establish long term friendly business relations with cutomers all over the world. We warmly welcome all frends and customers to visit our company.
