Home Generator Products Cheap Price and Silent Type 50kw Deutz Diesel Generator

Cheap Price and Silent Type 50kw Deutz Diesel Generator

Cheap Price and Silent Type 50kw Deutz Diesel Generator
Price: US $ 5590/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

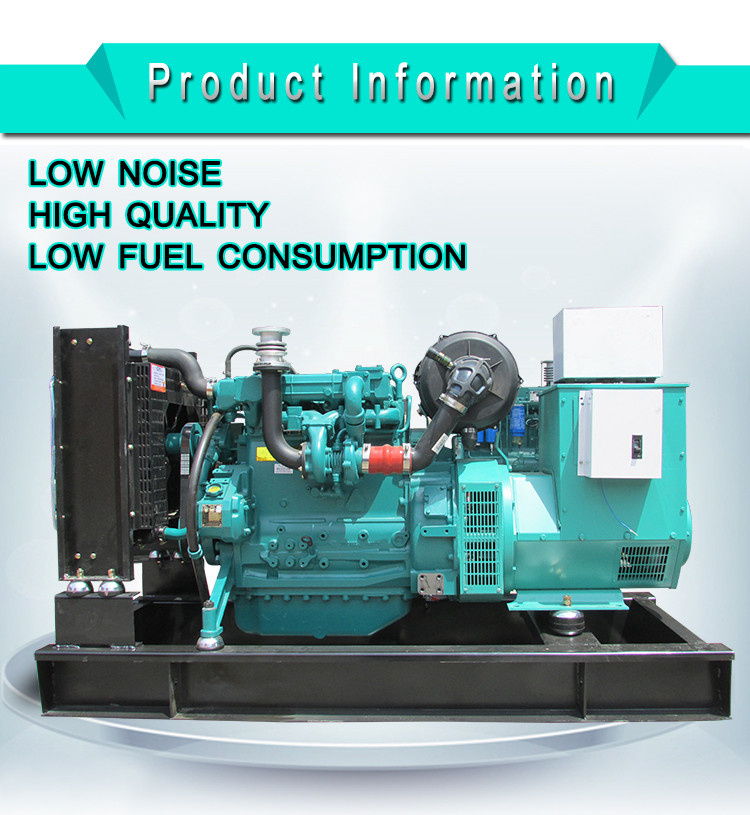

50kw Deutz Diesel Generator

something about our diesel generaotr


Our Generator Standard configurations:
1. Standard High-level quality engine Ricardo series.
2. Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H.
3. Maintenance-free start battery.
4. After acidification under frame, High-level strong.
5. Electric start, use key start.
6. Electric throttle.
7. Standard control panel Spray-print or LCD show panel.
8. Daily fuel tank.
9. High-level shock absorber system.
10. Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler.
11. 40°C radiator as standard.
12. Exhaust silencer
13. Charger motor for battery.
14. Standard export box.
15. Manuals.
16. Tools box.





Deutz Diesel Generator Set Features:

 1. Diesel generator adopt the Weifang original Weichai Deutz(Weichai), as the main power support.
     Engine charactors: Injection, Inline.Four stroke,water-cooled.

 2. Engine produced by Weichai Power company,which cooperation with Germany Deutz Company.

 3. Weichai Deutz engine caus its hig performance,strong power output,continous working time and stable work life and global service, sell to all over the world.Deutz engine continous work time more than 72 hours. Because its good quality and good service, widely known by all over the world.

 4. Alternator, adopt option brand like China brush alternator, Stamford, Faraday, Marathon,Leroy-somer, Lanzhou,etc so famous brands alternators.

 5.This series diesel generator is the special type we promotion for abroad market, and make the highly quality level than other configurations.

6.Diesel generator including abersorber system,and protect the generator during its working time.

7.All generator surface after acidification , and suitalbe wet condtion working .

 8.Standard control panel design basic the operation,and easy show all meters you care during generator working time.

9.Structure: adopt the high strong steel make the under frame, and easy moved and stable long life.

10.We offer options generators as the below shows:

A.Frequency we offer 50HZ and 60HZ.

B.Voltage: we offer 110/220v, 240v,380v/440v,254v/440 etc,or depend on your request.

C.Phase: we offer three phase or single phase generator

D.Options parts like: Electric speed adjustment, LCD show panel,protection system,Automatic transfer    system. Silent canopy, Weatherproof canopy,Fuel tank


50KW DIESEL GENERATOR DETAILS
ModelHQD50GFStart MethodDC 24
Generator Prime Power(KW/KVA)50/63Output Current(A)90
Standby Power(KW/KVA)55/69Voltage(V)400/230
Power Factor0.8PhaseThree phase, Four Wires
Frequency(Hz)50Weight(kg)850
Size(mm)LWG
 18006501450
Diesel Engine Data
ManufacturerDeutzModelWP4D66E200
Rated Speed(Rpm)1500Diesel Engine Max Power(KW/H)66
Cylinder No.3Arrangement TypeIn-line
Bore×Stroke(mm)105×120Displacement(L)3.8
Intake MethodTurbochargedCompression ratio15.5:01
FuelDiesel FuelFull Load Consumption(g/kw.h)≤209
Oil Capacity(L)10Start MethodElectrical
Engine Cooled Methodfans are driven by belt with safety guard.
Alternator Data
ManufacturerChina StanfordModelXN50
Rated Power(KW/KVA)50/63Excitation TypeBrushless
Insulation ClassHProtection GradeIP22
Unload Voltage Adjustment≥±5%Stable Voltage Adjustment±1%
Efficiency (%)94.8Voltage Control MethodAVR





The Engine Features

Deutz series diesel engines manufactured by joint venture in China are selected for Deutz diesel generators. Manufactured under optimized design and strict quality control, diesel generator sets are in line with ISO8528, German DIN6280, IEC34, VDE0530 as well as Chinese standard GB/T2820. This series are stable and reliable, easy to install, showing excellent performance. Thus, they are very suitable for occasions lack of main power supply.

Deutz series have some advantages of the characteristics:

Deutz diesel generators adopt modular design, featured by compact structure, small size and light weight; this series generator is featured by strong power, low fuel consumption, small vibration and low noise; The best is the strong adaptability, particularly suitable for use in heating, cold and arid regions.

We can offer from 25kw to 120kw.






the details and advantages of our diesel generator

U-Steel Under Frame: the high-strength channel steel base,increse the stability of the base and reduce the vibration during working to make the unit work more stable and life longer.

High-grade Dumping Block: units used imported technology to reduce the damage to the machine caused by unit vibration. thus greatly extend the life of the unit.And high grade damping block can effectively reduce the noise generated by the vibration.

Plastic Sparying Dashboard:Using high quailty pai-nt,build quality and beautiful dashborad to make the data show up more intuitively and effective prevent corossion to long life.

Costomized Fuel Pump:Famoue brand pump.special for Weichai Power,With good quailty and stable speed adjustment,sensitive and fuel-efficient,and the life is 3 to 4 times as other ordinary pump.

Diesel Generator Protection system
Alarm function: Sound alarm and stop machine.Alarm content:high water temoer ature,high oil temperature,high oil pressure and high speed, then urgent stopping.It have been used widely in exported units.

Electrical Fuel Injection Pump:
1.Control max speed,provent diesel engine over speed
2.Contorl lowest speed, promise stable working under the lowest speed
3.Less Consumption,it can adjustment engine speed itself basic the real load applied more less fuel reduce.

ATS Smart Transfer System(Automatic switch)
1.Intelligent dual power supply automatic switching control cabinet to introduce the latest micro processing technology,using industrial grade components assembly manufacturing,safe and reliable;the button control panel swith contorl, easy to operate.
2.Main functions:Control,Swtich,Protection,Charger...(also we call ie AMF witH  ATS,the real smart system no need person on duty,itself-operating diesel generator.)

Soundproof Diesel Generator (Silent)
1.Excellent silent performance,reduce the noise to 75db(at the distance 1m to the generator)
2.Compact structure,small size, beautiful appearance
3.Multiayer shielded sound absorbing cover.
4.Efficient niose reduction intake and exaust pipe to make sure good dynamic performance.
5.lager impedance compound muffler.
6.Have quick open cover and easy to mantain.

Mobile Station Diesel Generator(Trailer)
1.Including mobile trailer,container trailer.etc.It is easy and safe to operate.
2.Trailer station models:Rainproof,weather proof and silent type.




Sales Promises
Huaquan provides a full line of brand new and high quality products.Each and every unit is strictly factory tested Warranty is according to our standard conditions:12 months or 1000 running hour's ,subject to the earlier one .Service and parts are available from our factory




About Our Company

Founded in 2006, Huaquan Power Machinery  is located in the diesel engine manufacturing city, Weifang. For many years, we have become a professional manufacturer of diesel generators. Our main products include fixed, mobile, silent, ATS, remote monitoring types and other smart power plants.

These products are widely used in power generation equipment,engineering machinery, agricultural machinery, fixed operations and other fields. Marketing throughout the country, we also export to Southeast Asia, the Middle East, Africa and other
areas.

 We have advanced production lines, sophisticated testing equipment and complete quality management system, and implement the "quality first, customer first, honesty, competition and enterprising spirit". We also employ a group of highly qualified engineers, technicians and a support staff dedicated to the rapid development of the company.

 We are committed to providing efficient, energy-saving, eco-friendly, high-quality and reliable diesel generator sets to ensure clients' satisfaction. We accept small orders and provide competitive price and high quality. Quick delivery time is also our advantage.


1. Offer the main Power range from 10kva~1500kva.
2. Adopt the famous engines like Weichai engines, Deutz engines, Steyr engines, Cummins engines, Perkins engines, Isuzu engines, Ricardo engines, Changchai engines, Yuchai engines, Jichai engines etc. These are widely used all over the word.
3. We only adopt standard high-level quality alternator, to produce the high-level diesel generators.
4. We offer Open-generators, Silent-Generators, Automatic-Generators and Trailer-Generators.
5. All spare parts serviced directly by our company.
6. We are confirmed as the OEM factory by many those engine factories and alternator factories.







Our experience

We specialized in producing diesel generator for many years. We have exported to many countries and widely used in domestic.
Exported countries: Nigeria, Indonesia, Malaysia, Philippine, North Korea, Ghana, Gabon, South Africa, Guinea, Russia, Iraq, Iran, Colombia, Burkina Faso, Liberia, Zambia, etc.
Domestic: Send to most of the cities in china, and get high praise from my clients








Prod Model: HQ50GF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Fator: 0.8
Fuel: 0#Diesel Generator
Color: Green
Efficiency: 94.8%
Stroke: Four Stroke
Type: Self-Starting Diesel Generator
Cooling Method: Water Cooling
Installation Method: Portable
Output Type: DC
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw
