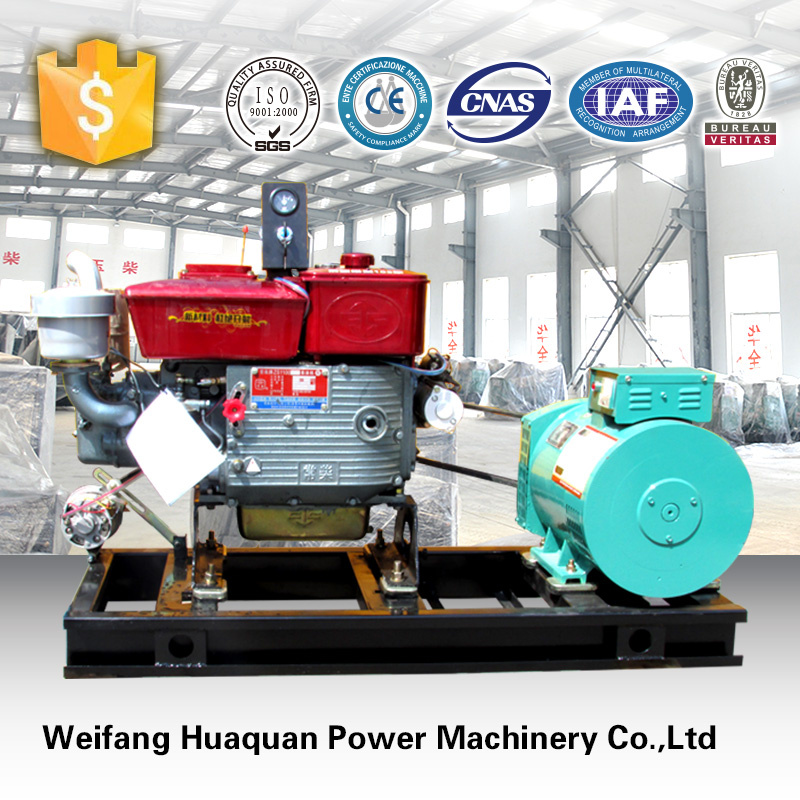

Changchai Small Single Cylinder Diesel Generator
Price: |
US $ 1142/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
changchai small single cylinder diesel generator
supply 20kw changchai diesel generator 20kw mobile generator diesel engine
The novel design for gensets
Output:6.5kw-1600kw
Reliability quality and performance
Famous diesel engine
Warranty on global
he main parameters of the engine |
Brand | Changzhou changchai |
Model | L28 |
Type | four strokes, waste gas turbine boost,direct spurting type |
Cooling way | water cooling |
With type | Inline type |
Bore*Trip | 100mm*115mm |
Cylinder | 1cylinder |
Displacement | 1.63L |
Speed adjustment way | mechanical speed |
Rotating speed | 2200r/min |
Starting way | starting with electricity |
The main parameters of the generator |
Brand | HUAQUAN |
Model | STC-20KW |
Type | brushless (AVR automatic voltage regulating) |
The connecting way of the phase | three phases four lines |
Insulation degree | H degree |
TIF | <50 |
THF | <2% |
The factor of rated power | ≤±1% |
Grading Protection | IP22 |
Unit parameters |
Power | 20kw 25kva |
Rated voltage | 400V/230V |
Rated current | 36.1A |
Rated frequency | 50 HZ |
The factor of rated power | 0.8 |
The regulating rate of instantaneous voltage | ≤-15%/ +20% |
The regulating rate of steady voltage | ≤±1% |
The time of steady voltage | ≤3sec |
The waving rate of voltage | ≤0.5% |
Voltage waveform distortion degree | ≤8% |
The regulating rate of steady frequency | ≤5% |
The regulating rate of instantaneous frequency | ≤-10%/+12% |
The time of steady frequency | 3sec |
The waving rate of frequency | ≤1.5% |
The waste of fuel with full load | 265.2g/kw.h |
Size(mm) | 1200*650*900 |
Weight(kg) | 500 |
Prod Model: |
HQC |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Current: |
36A |
Starting Way: |
Electric |
High Combustion Efficiency: |
Low Fuel Consumption |
Warranty: |
a Year or 1500h |
Optional Part: |
Trailer |
After Sal Eservice: |
Lifetime Consultant |
Colour: |
Yellow, Blue, Green, Red, White, etc |
Canopy: |
Open Type or Silent Type |
Type: |
Basic Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Single Phase |
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw
Huaquan Power Mchinery Co., Ltd, located in diesel engine manufacturing powerhouse-Weifang, the capital of kites.
Huaquan Power has more than 500 employees worldwide and it has four advanced production lines, sophisticated testing equipment, complete quality management system, and marketing all around the world in the past 10 years, such as Southeast Asia, the Middle East, Africa and other regions.
Huaquan Power ensures that providing the energy saving, environment protection, high quality and reliable diesel engine and generators, to ensure user satisfaction and rest assured! We sincerely look forward to your cooperation!
