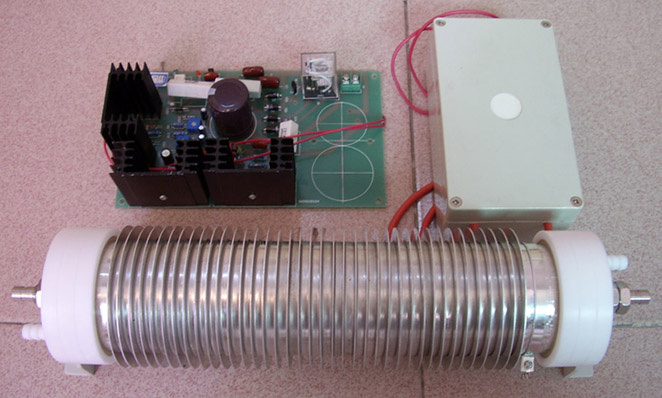

Ceramic Ozone Generator Air and Water Treatment (SY-G280)

Ceramic Ozone Generator Air and Water Treatment (SY-G280)
Price: US $ 450/Piece
Trade Terms: FOB,DAP,CIP
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Item: Ceramic Ozone Generator
Model No.: SY-G280
Input: AC220V/50Hz

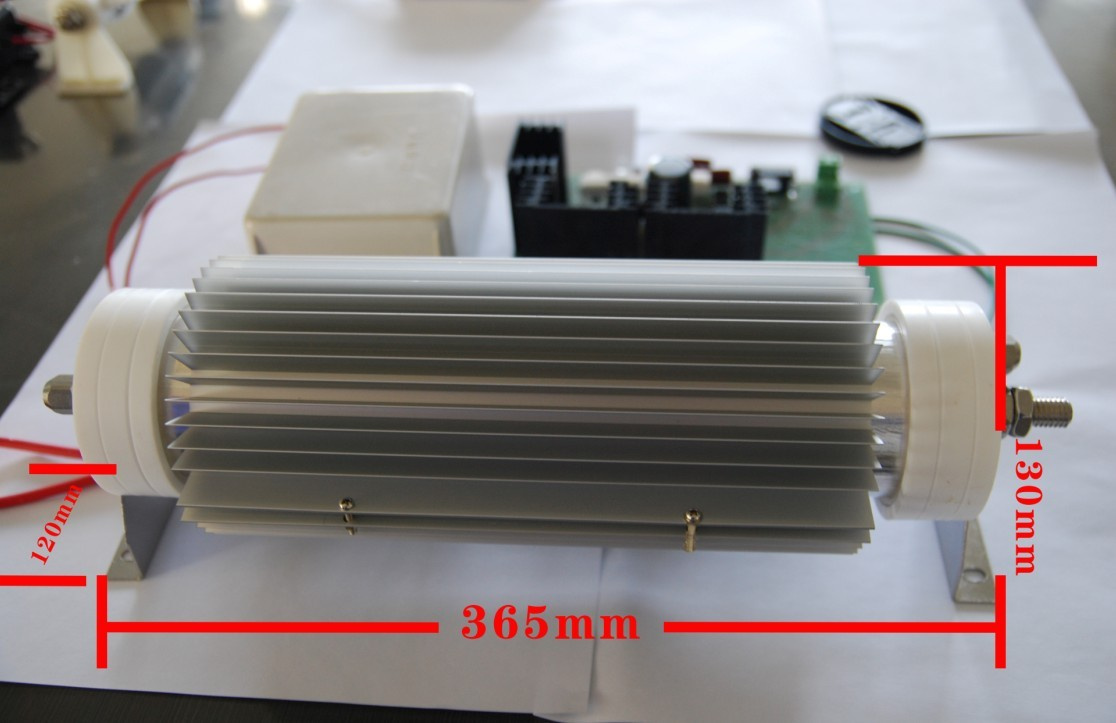

Pipe: 400X80X110mm
Power: 320X210mm
Cooling: Air/Water Cooling
Interface Sizes: %10mm
Water Flow: 5 L/min
Power: 280W
Ozone Adjustable: Standard and adjustable

Oxygen In 0.24m3/h: Ozone output 20300mg/h
Oxygen In 0.48m3/h: Ozone output 33200mg/h
Oxygen In 0.72m3/h: Ozone output 35000mg/h
Oxygen In 0.96m3/h: Ozone output 38400mg/h
Oxygen In 1.23m3/h: Ozone output 40300mg/h

Ozone Generator Major Characteristics:
(1) High Efficiency: 800-1000G/M2, 4-5 times more than the common ozone generators
(2) Low Output: High frequency corona discharge, the consume rate of 8-10KW. H/kg O3
(3) Small Sizes: Save your space, the cubage is 1/4 to 1/3 than common ozone generators at the same output
(4) Very Long Life, Non-Coorode, Non-Oxygenization, High Temp. Resistance: Imported material to be sintered into the high purified ceramic, 316 stainless inner electrode and tighten firmware, polytetrafluorethylene/Teflon, high purified silicon rubber material, all the pipes equipped with radiator slice, 10 years normal life
(5) No Break: The generating pipe with the working voltage of 10% of the Breaking voltage, high non-conductivity rate, low power
(6) Effective Cooling Systems: There is outer air cooling and inner water cooling combination, low degradation rate at continuous working
(7) Good Voltage Flexibility: 50V to generate ozone and 200V to get the efficiency, convenient to adjust the ozone levels
(8) Save Oxygen Source: High ozone density/output and save the oxygen cost
Prod Model: SY-G280
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Portable
Structure: Wall Mounted
Usage: Industry
Air Volume: 151-300m³/h
Type: Ozone
Certification: CE
Application Area: >61m²
Power Source: Electrical
Purifying Technology: Ozone
Anion Density: >4000000pcs/m³
Operating Principle: Ozone
