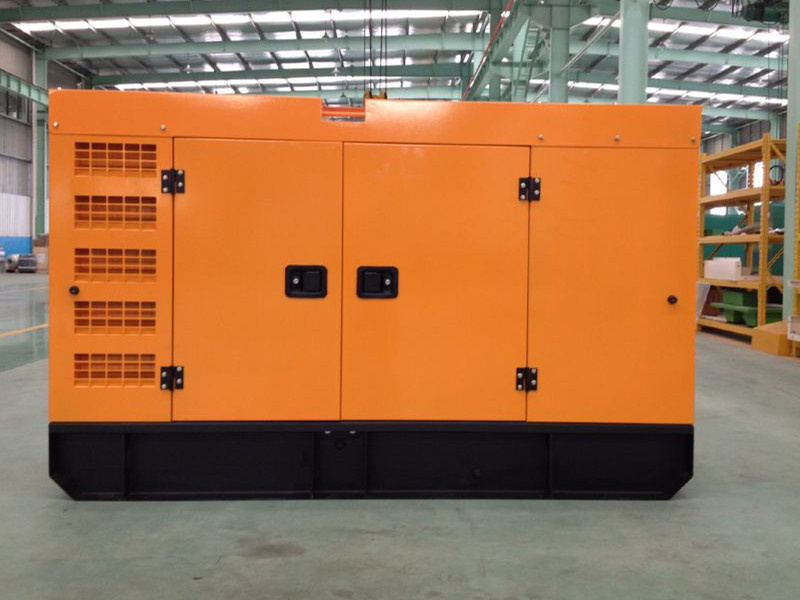

CE Supplier 60kVA Silent Cummins Engine Diesel Generator (4BTA3.9-G2) (GDC60*S)
Standard Silent Type Gensets
Specifications
1. noise performance is conforming to international standard 65-75dBA at 1m distance.
2. 3C good ventilation system and heat radiation handling can protect gensets working in any ambient temperature all the time.
3. base tank designed can assure gensets running continuously about 8-10hours.
4. newly developed noise-absorbing material adopted, and anti-damping between base fram and gensets body can further reduce noise.
5. with design of 3 doors and 1 observation windows.
6.Excellent engines and alternators featured with strong power,high torque,quick start,easy maintenance and operation.
7.Compact structure,small size,and longer service life.
8.The canopies are made of high quality steel and powder coated.The paint is highly endurable against erosion and scratch,and strongly rustproof.
9.The control panel,service doors and canopy board adopt waterproof design and effectively stop rain and dust intrusion.
10.All movable devices are fixed firmly,and therefore help reduce vibration.
| 1. Specification of genset |
| Gensets Model | GDC60*S |
| Prime Power(KVA) | 60 |
| Standby Power(KVA) | 66 |
| Rated Voltage(V) | 380 |
| Rated Frequency(HZ) | 50 |
| Rated Speed (rpm) | 1500 |
| Power Factor(COS) | 0.8(lagging) |
| Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97;A 10% overload capability is available for a period of 1 hour within a 12-hour of operation. |
| Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. |
| 2. Specification of diesel engine |
| Engine brand | Cummins |
| Engine model | 4BTA3.9-G2 |
| Number of Cylinders | 4 |
| Cylinder arrangement | Vertical in-line |
| Cycle | Four stroke |
| Aspiration | Turbo charged and Water/Air cooling |
| Fuel System | AD type fuel pump, EFC |
| Bore×Stroke (mm×mm) | 102x120 |
| Displacement (Liter) | 3.9 |
| Compression Ratio | 16.5:1 |
| Speed Governor | Electronic |
| Cooling System | Forced Water Cooling Cycle |
| Total lubrication system capacity (L) | 16.4 |
| Fuel Consumption at 100% Load (g/kwh) | 210 |
| Starting Method | DC24V electrical starting |
| 3. Specification of alternator |
| Alternator brand | Stamford |
| Orgin | WuXi |
| Alternator model | UCI224F |
| Number of Phase | 3 |
| Connecting Type | 3 Phase and 4 Wires |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
| 4. Specification of control Panel |
| The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. |
