CE Single Cylinder Air Cooled Engine 5kw Gasoline Generator (WH6500/WH6500E)
| Price: |
US $ 300-400set |
| Trade Terms: |
FOB,CIF |
| Min Order: |
50sets |
| Pay Type: |
L/C,T/T |
Wahoo gasoline generator 389cc(13HP) OHV engine provides worksite reliability
5500watts peak output, 5000watts rate output
Low oil shut-off protects engine
Circuit breaker protect generator and application
Super quiet muffler reduces engine noise
Weather Protected Control Panel protects your control panel from rain, dirt, dust and debris.CE Approved 5kw gasoline Generators of Top Quality WH6500Feature:
1.Start easily with a lightly pull
2.16months warranty
3.stable voltage and frequency
4.low fuel consumption
5.We can supply OEM brand
6.We will according to customer's demand
Quality Approvals: CEMain Export Markets: Eastern Europe, South America, Mid East, South Africa, Asia, Western Europe, Australia, Russia.Payment Terms: T/T or L/C
FOB Port: Ningbo or Shanghai
Lead Time: 20 days
|
Model No. |
WH6500-H |
|
Rated frequency(Hz) |
50 |
|
Rated voltage(V) |
220 |
|
Rated output power(kW) |
5.0 |
|
Max. output power(kW) |
5.5 |
|
Rated rotation speed(rpm) |
3000 |
|
DC output |
12V 8A |
|
Power factor |
1.0 |
|
Phase number |
singe |
|
Noise level dB@7m |
72-78 |
|
Fuel tank (L) |
23 |
|
Engine model |
WG390 |
|
Engien type |
Single cylinder, 4-stroke, air-cooled, OHV, gasoline engine |
|
Displacement (cc) |
389 |
|
Compression ratio |
8.5: 1 |
|
Rated rotation speed(rpm) |
13.0/3600 |
|
T. C. I. |
With |
|
Spark plug |
F6RTC |
|
Starting system |
Recoil starter |
|
Rotation direction |
Clockwise |
|
Fuel type |
Automotive unleaded gasoline |
|
Lube oil brand |
SAE10W30 (above CC grade) |
|
Low oil alarm system |
With |
|
|
|
|
|
|
Packing |
|
|
|
|
Packing: natural carton box |
|
|
|
|
Net Weight(kg) |
94 |
|
Gross Weight(kg) |
95 |
|
Outer-Carton(mm) |
Length |
Width |
Height |
|
695 |
540 |
595 |
|
Container Type |
20FT |
40FT |
40HQ |
|
QTY |
101 |
215 |
286 |

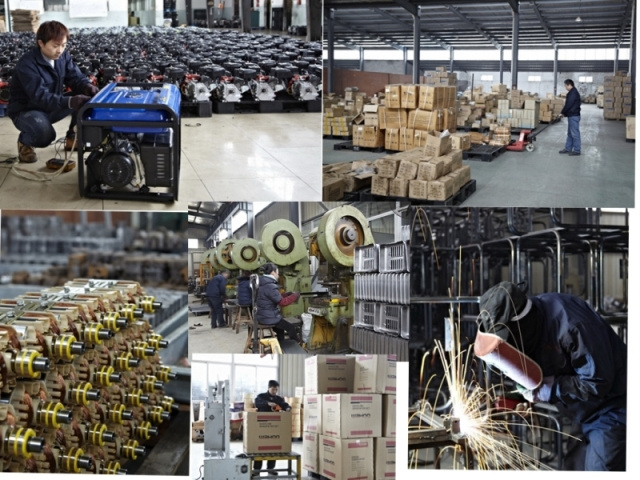

Production Machinery:
|
|
|
Machine Name |
Brand & Model No. |
Quantity |
Number of Year(s) Used |
|
|
Punching Machine |
J23, JB04-1 |
7 |
5.0 |
|
|
Cutting Machine |
215 |
3 |
5.0 |
|
|
Tube Bending Machine |
DB38 |
3 |
5.0 |
|
|
Plate Shearing Machine |
QC12Y-4*2500 |
1 |
5.0 |
|
|
Drilling Machine |
Z512,Z4116 |
8 |
5.0 |
|
|
Bench Milling Machine |
Xj51 |
1 |
5.0 |
|
|
Welding Machine |
TCW-32D, NBC-350, DN160 |
10 |
4.0 |
|
|
Winding Machine |
PR-2 |
2 |
4.0 |
|
|
Cleaning Machine |
ZQX-2000 |
1 |
3.0 |
|
|
Marking Machine |
HUAPU |
2 |
4.0 |
|
|
Hydraulic Machine |
MAOYI, 5T |
8 |
4.0 |
|
Testing Machinery:
|
|
|
Machine Name |
Brand & Model No. |
Quantity |
Number of Year(s) Used |
|
|
Withstand Voltage Tester |
CS2670A |
4 |
3.0 |
|
|
Low DC Resistance Tester |
TH2512, WB2511A |
2 |
3.0 |
|
|
Performance Test Bench |
No Information |
4 |
5.0 |
|
|
Spring Tension Tester |
TLS-S |
1 |
3.0 |
|
|
Rockwell Apparatus |
HR-150A |
2 |
3.0 |
|
|
Gear Runout Tester |
1-6mm |
1 |
3.0 |
|
|
Torque Tester |
NJ-100 |
1 |
3.0 |
|
|
Test Platform |
No Information |
1 |
3.0 |
|
|
Inverter Welder Tester |
SJ |
1 |
4.0 |
|
|
Turbine Dynamometer |
No Information |
2 |
4.0 |
|
| Prod Model: |
WH6500/WH6500E |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuel: |
Gasoline |
| Output Type: |
AC Single Phase |
Patented Motor Designs
We are one of the few companies in mainland China that has patents on its motor designs. That means you won' T have problems with IP protection laws when you source our power generators, water pumps, pressure washers and other motor-driven items, even in strict regions such as North America and Europe.
Wanhao has won over many customers around the world because we offer competitive prices and are dedicated to craftsmanship and quality. Some of our valued customers include Home Depot, GMC, Electrolux and TTi. We have EPA 2005 Motor Year Certification and CE certification.
A Variety of Production Capabilities
Our company designs and manufactures general purpose gasoline engines from 2.6HP to 13.5HP, gasoline generators from 1kW to 6kW, water pumps from 1.5 inches to 4 inches, and pressure washers at 1800PSI, 2500PSI and 2700PSI.
Emphasis on Quality Control
Much of Wanhao' S success is due to our extensive Quality Control Department. Our 30 QC staff carefully perform inspections at every stage of production, from the time we receive raw materials to packaging. Noise, power, and stability are tested to ensure that our engines can endure 580 hours of constant use. Our management system is approved under ISO 9001: 2000, and we have CE product approval.
Service
We' Ll print custom logos and product documentation in your language, and provide spare parts for easily worn down components. We also can design and deliver OEM/ODM samples in one month. You can discuss your requirements with our English-speaking staff.
