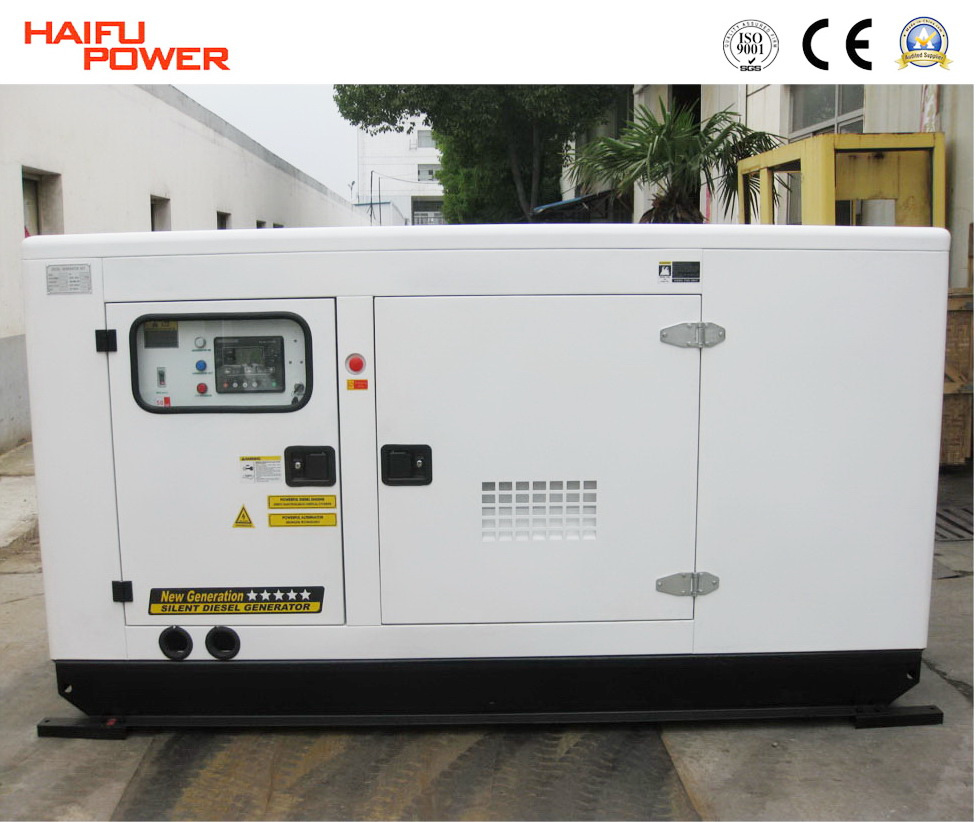

CE Silent/Soundproof Diesel Generators
Silent Generators/CE Generators/Diesel Generator Set/Generating Set/Diesel Generating Set/Power Generator/Silent Generators/Soundproof Generator/Diesel Genset/Genset
1, DCEC Cummins Diesel Engine
2, Stamford / Leroy Somer / Marthon Alternator
3, CE Approved
4, One Year Warranty
Cummins Series Diesel Generators Power From 20kVA up to 1500kVA, with compacted structure and best configuration.
OEM CUMMINS Powered Diesel Generator Sets with its high reliability, low use and maintenance cost win the loyalty of many customers in the field of Army, transportation engineering system and mine industries. Established in 1919, headquartered in Columbus, Indiana, (USA) Cummins Inc. Serves customers in more than 160 countries and territories through its network of 680 Company-owned and independent distributor locations and more than 5, 000 dealer locations. As the largest foreign engine investors of China, Cummins possess Chongqing Cummins Engine Co., Ltd (produce M, N, K series engine) and Dongfeng Cummins Engine Co., Ltd (produce B, C, L series engine ) and produce CUMMINS engines with globally uniform quality standards.
Cummins Generators 50HZ |
Genset Model | Standby / Prime Power | Engine Model | No. of Cylinder | Displacement (L) | Oil Capacity (L) | Coolant Capacity (L) | Genset Size (mm) | Weight (KG) |
KVA | KW | Cummins | L | W | H |
HF20C | 30/25 | 24/20 | 4B3.9-G2 | 4 | 3.9 | 11 | 17 | 1470 | 650 | 1145 | 650 |
HF30C | 40/37.5 | 32/30 | 4BT3.9-G2 | 4 | 3.9 | 11 | 17 | 1685 | 650 | 1145 | 700 |
HF40C | 62/50 | 50/40 | 4BTA3.9-G2 | 4 | 3.9 | 11 | 18 | 1800 | 670 | 1190 | 830 |
HF50C | 70/62.5 | 56/50 | 4BTA3.9-G3 | 4 | 3.9 | 11 | 18 | 1900 | 670 | 1190 | 850 |
HF64C | 90/80 | 72/64 | 6BT5.9-G2 | 6 | 5.9 | 16 | 29 | 2100 | 790 | 1320 | 1050 |
HF80C | 110/100 | 88/80 | 6BT5.9-G2 | 6 | 5.9 | 16 | 29 | 2100 | 790 | 1400 | 1080 |
HF90C | 125/113 | 100/90 | 6BTA5.9-G2 | 6 | 5.9 | 16 | 29 | 2200 | 790 | 1450 | 1150 |
HF108C | 150/135 | 120/108 | 6BTAA5.9-G2 | 6 | 5.9 | 16 | 29 | 2400 | 840 | 1450 | 1200 |
HF128C | 175/160 | 140/128 | 6CTA8.3-G2 | 6 | 5.9 | 16 | 30 | 2480 | 860 | 1450 | 1400 |
HF144C | 200/180 | 160/144 | 6CTA8.3-G2 | 6 | 8.3 | 24 | 35 | 2480 | 860 | 1460 | 1650 |
HF160C | 220/200 | 176/160 | 6CTAA8.3-G2 | 6 | 8.3 | 24 | 39 | 2700 | 950 | 1460 | 1650 |
HF180C | 250/225 | 200/180 | 6LTAA8.9-G2 | 6 | 8.9 | 24 | 47 | 2700 | 960 | 1500 | 1800 |
HF200C | 275/250 | 220/200 | 6LTAA8.9-G2 | 6 | 8.9 | 24 | 47 | 2700 | 960 | 1500 | 1900 |
HF220C | 300/275 | 240/220 | 6LTAA8.9-G3 | 6 | 8.9 | 24 | 47 | 2700 | 960 | 1500 | 2050 |
HF280C | 375/330 | 300/264 | QSM11-G2 | 6 | 11 | 38 | 62 | 3110 | 1200 | 1745 | 2880 |
HF320C | 450/400 | 360/320 | NTAA855-G7A | 6 | 14 | 37 | 65 | 3300 | 1250 | 1720 | 3050 |
HF360C | 500/450 | 400/360 | KTA19-G3 | 6 | 19 | 50 | 99 | 3310 | 1290 | 1720 | 3100 |
HF420C | 575/525 | 460/420 | KTA19-G4 | 6 | 19 | 50 | 99 | 3600 | 1290 | 1900 | 3750 |
HF500C | 688/625 | 550/500 | KTAA19-G6A | 6 | 19 | 50 | 195 | 3800 | 1500 | 1980 | 4500 |
HF620C | 850/775 | 680/620 | KTA38-G2 | 12 | 38 | 135 | 265 | 3860 | 1600 | 2195 | 6000 |
HF720C | 1000/900 | 800/720 | KTA38-G2A | 12 | 38 | 135 | 303 | 3860 | 1600 | 2195 | 7000 |
HF820C | 1125/1025 | 900/820 | KTA38-G5 | 12 | 38 | 135 | 309 | 5300 | 1950 | 2500 | 8500 |
HF1020C | 1400/1275 | 1120/1020 | KTA50-G3 | 16 | 50 | 177 | 349 | 5300 | 2150 | 2520 | 9950 |
HF1200C | 1675/1500 | 1340/1200 | KTA50-G8 | 16 | 50 | 204 | 349 | 5300 | 2200 | 2550 | 10500 |
YANCHENG HAIFU POWER MACHINERY Co., Ltd. located in Yancheng High-Technology Development Zone. Here, congregated many world famous manufacturers. HAIFU Power owns the modern diesel genset's production scope covering an area of 10, 000 square meters, with an assembly workshop of 5, 000 square meters.
HAIFU Power devoted itself to research, manufacture and maintenance of famous diesel gensets in the past 15years. Capacity from 5KW up to 1500KW. With the steady quality and advanced manufacturing technique, HAIFU Power has won widely acclamation from both competitors and customers all over the world.
HAIFU Power has long-term cooperation with world leading companies, such as: Cummins, Perkins, Volvo PENTA, Deutz, Lovol, Doosan, Yanmar, Kubota, Stamford, Leroy Somer, Marthon etc.
HAIFU Power excellent products originates from not only scientific management and advanced manufacturing technique, but also our people's continuous quality awareness. Each manufacturing procedures from outside inspection, engine machining, electric wiring to spray-paint are under strict quality control.
Our conception is to supply gensets with advanced technology, reliable quality and environmental-protection. With this conception, HAIFU Power keeps updating of technology and improvement of quality all the time.
ADVANCED, RELIABLE, ENVIRONMENTAL - YOUR BEST CHOICE!
