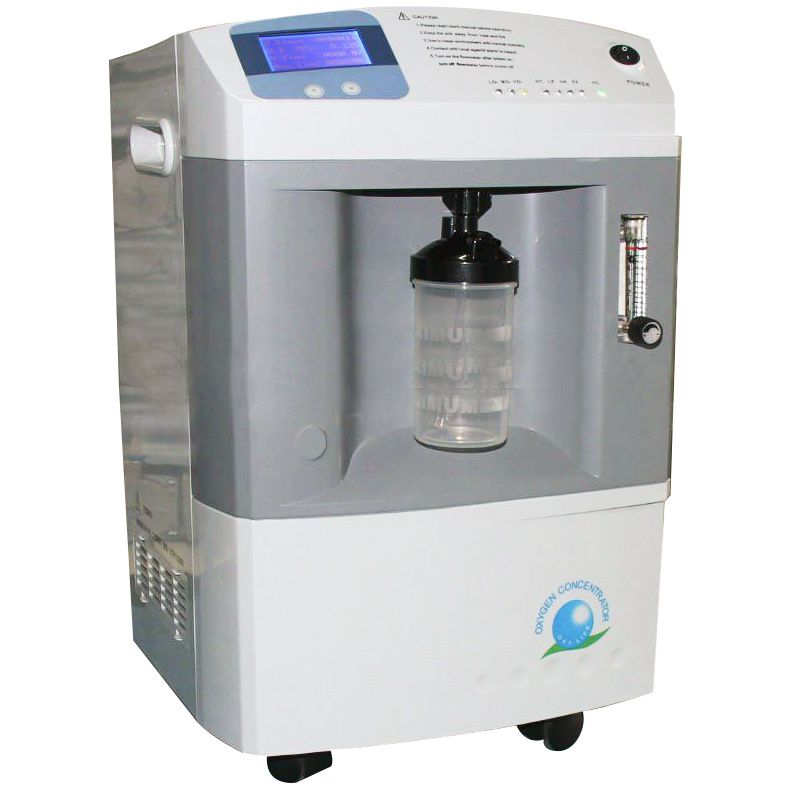

Oxygen concentrator(JAY-8)
FEATURES:
PSA(Pressure Swing Adsorption) technology
Adjustable flowrate
Large LCD display for: Accumulating timing, present timing, presetting timing.
Digital: Pressure digital, temperature digital, purity digital, SpO2 digital.
Maintenance reminding.
SPECIFICATION:
Oxygen flow(L/min): 3L, 5L, 8L, 10L
Purity (%): 93%± 3%
Outlet pressure(Mpa): 0.04-0.07
Sound level dB(A): ≤ 50
Power: AC220± 10%50/60± 1Hz AC110± 10% 50/60± 1Hz (special demands are available)
Power consumption: ≤ 480W
Timer: Accumulating timing: Present timing
Alarm: Power failure alarm, High & Low pressure alarm, high temperature alarm
Net weight (kg): 27
Electric classification: Class II Grade B
Size(mm): 365× 375× 600
ALTERNATIVELY:
Nebulizer
Purity alarm: (Oxygen purity monitoring: When purity is above 85%, it will give green light; When the purity is between 85% and 73%, it will give yellow light; When purity is below 73%, it will give red light)
Maintenance alarm: Alarm for maintenance will be haeard after 3000 hours of operation.
Pulse Oximeter: Fingertip oximeter is available for monitoring patient oxygen saturation on site
Longfian Scitech Co., Ltd, located in Longxing Building A(413), 77 Longxing Road, 071051 Baoding China, The company has first-class professional management personnel and research&development technical team, with their own product development capabilities, mainly engaged in medical molecular sieve oxygen concentrator as well as assorting the development of electronic products, now has a variety of standard models and a variety of uses oxygen concentrator, has successfully developed JAY-1, JAY-2, JAY-3, JAY-5, JAY-6, JAY-8, JAY-10 type normal pressure medical oxygen concentrator, JAY-10-4.0, JAY-15-4.0, JAY-20-3.5 with 0.14 ~ 4KG pressure of high-pressure oxygen concentrator, industrial oxygen concentrator and ozone generator etc.; The product has got EU's CE certificate, ISO certificate and FDA certificate, and exported to the United States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 60 countries and regions, enjoy a high reputation in Foreign markets
In recent years, the company has joined OEM companies and developed some related medical products for the demands of market, especially for pulse oximeter, SpO2&Blood pressure monitor, SpO2&ECG monitor, syringe pump, infusion pump, etc.
Our goal is "PROFESSIONAL IN QUALITY, FOCUS ON RESPIRATORY PRODUCTS ", to meet the demands of various specialists of medical field and continue to bring you not just the innovative equipment but also the most reliable, long-lasting & quality products.
