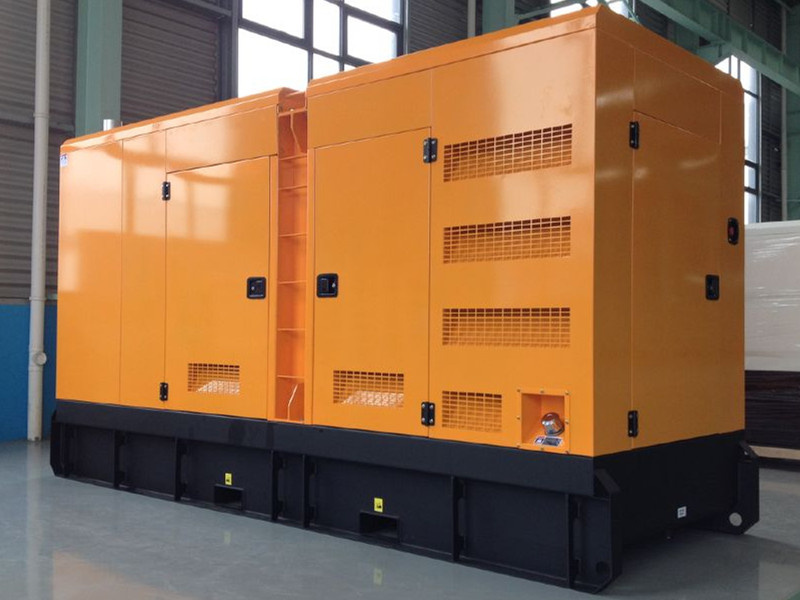

CE, ISO Quality Super Silent 400kw/500kVA Cummins Power Generator (GDC500*S)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
CE,ISO quality Super Silent 400kw/500kVA Cummins Power Generator (GDC500*S)
Color of Canopy: according to the customer's choice Standard Silent Type GensetsSpecifications1. noise performance is conforming to international standard 65-75dBA at 1m distance.2. 3C good ventilation system and heat radiation handling can protect gensets working in any ambient temperature all the time.3. base tank designed can assure gensets running continuously about 8-10hours.4. newly developed noise-absorbing material adopted, and anti-damping between base fram and gensets body can further reduce noise.5. with design of 3 doors and 1 observation windows.6.Excellent engines and alternators featured with strong power,high torque,quick start,easy maintenance and operation.7.Compact structure,small size,and longer service life.8.The canopies are made of high quality steel and powder coated.The paint is highly endurable against erosion and scratch,and strongly rustproof.9.The control panel,service doors and canopy board adopt waterproof design and effectively stop rain and dust intrusion.10.All movable devices are fixed firmly,and therefore help reduce vibration.SafetyDesign, production and testing of the generator sets comply with EU CE safety standard;Equipped with circuit breaker to avoid possible electric risk at re-startup when engine stops in emergency.The controller has a historical operation recording function for troubleshooting and inspection.Powerful EnginesAdopts world-famous engines,with low noise and low emission.Rugged structure ensures lowest vibration.Common rail system: (for some models) significantly lowers the combustion temperature, and also leads to cleaner exhaust.For the turbocharged machines, the carbon dioxide (CO2) emission is reduced.

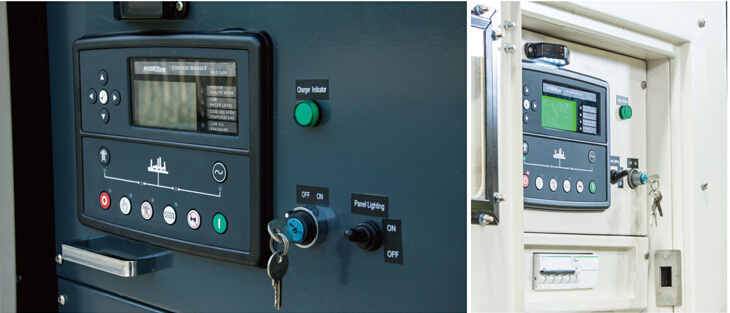

Control SystemMicro-processor cored digital system.Multiple languages, automatic control.Connected with the mains through ATS, which can help realize automatic transfer between the mains and the generators. Also, multiple generators can be paralleled for bigger power needs.
Generator main specifications:
| 1. Specification of genset |
| Gensets model | GDC500*S |
| Prime power | 400KW/500KVA |
| Standby power | 440KW/550KVA |
| Rated Voltage | 220/380V |
| Rated frequency(HZ) | 50HZ |
| Rated Speed | 1500rpm |
| Power Factor | 0.8(lagging) |
| Dimensions(mm) (L×W×H) | 4310x1720x2450 |
| Genset Weight(kg) | 6225 |
| 2. Specification of diesel engine |
| Engine brand | Cummins |
| Engine model | KTA19-G8 |
| Number of Cylinders, Cylinder arrangement | 8 ,Vertical in-line |
| Cycle | Four stroke |
| Standby Rated Output kW | 490 |
| Aspiration | Turbocharged, Air / Air Cooling |
| Fuel System | Direct injection |
| Bore×Stroke (mm×mm) | 132*145 |
| Displacement (Liter) | 15.874 |
| Speed Governor | Electronic |
| Cooling System | Forced Water Cooling Cycle |
| Fuel Consumption at 100%/75%/50% Load (L/h) | 119/89.3/59.6 |
| Starting Method | DC24V electrical starting |
| 3. Specification of alternator |
| Alternator brand | Copy Stamford |
| Alternator model | JDG354E |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±0.5% |
| Transient State Voltage | ≤-15%~+20% |

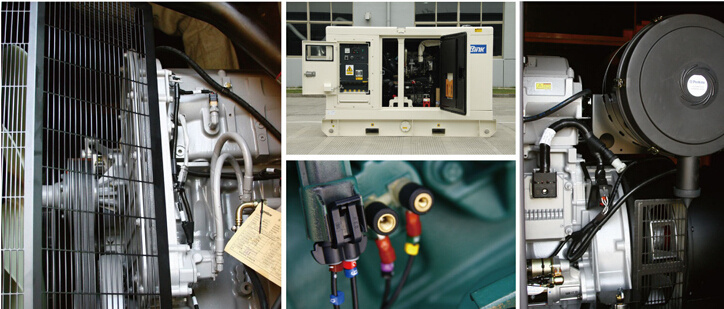

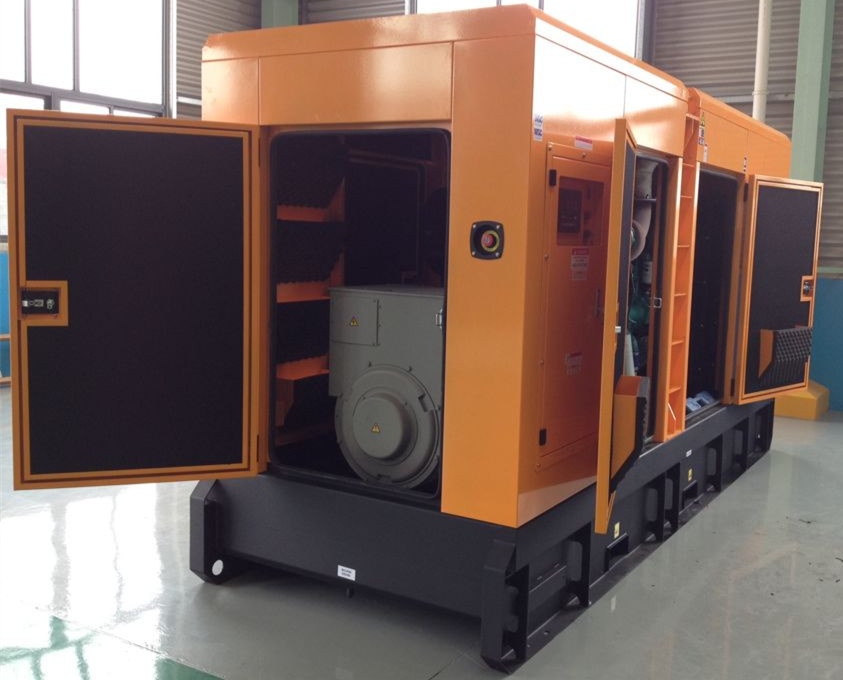

400KW/500KVA Cummins Power Generator photos
Contact: Ms Vicki YuanTel:86 0514 80915716
| Prod Model: |
GDC500*S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Cummins Kta19-G3a, Perkins, Deutz Is Optional |
| Alternator: |
Stamford Hci544c, Marathon, Engga, Godlike |
| Controller: |
Dse7020, 7320 |
| Load Test: |
25%, 50%, 75%, 100%, 110% |
| Voltage Range: |
25%, 50%, 75%, 100%, 110% |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
