| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Technical data | |
Genset Model | GDC50*S |
Prime Power | 40KW/50KVA |
Rated Voltage | 400/230V |
Frequency | 50/60Hz |
Power Factor | 0.8(lagging) |
The regulating rate of steady voltage | ≤±0.5% |
The regulating rate of instantaneous voltage | ≤-15%/ +20% |
The time of steady voltage | ≤1.5sec |
The waving rate of voltage | ≤1.0% |
The regulating rate of steady frequency | ≤3% |
The regulating rate of instantaneous frequency | ≤±10% |
The time of steady frequency | 3sec |
Dimension (L×W×H) (mm) | 1800*750*1200 |
Genset weight (kg) | 920 |
Diesel Engine | |
Brand | cummins |
Model | 4BTA3.9-G2 |
Number of Cylinders | 4 |
Rotating Speed | 1500RPM |
Cycle | Four stroke |
Type | waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) | 102*120 |
Displacement(L) | 3.9 |
Lubricating Capacity(L) | 11 |
Speed Governor | Electrical |
Cooling System | Water-cooled |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 208g/kw.h |
Starting Method | DC24V Electrical starting |
Alternator | |
Brand | Stamford |
Model | UCI224E |
Number of Phase | 3 |
Connecting Type | Three Phase and Four Lines |
Number of Bearing | 1 |
Grading Protection | IP23 |
Altitude | ≤1000m |
Exciter Type | Brushless (AVR automatic voltage regulating) |
Insulation Class | H degree |

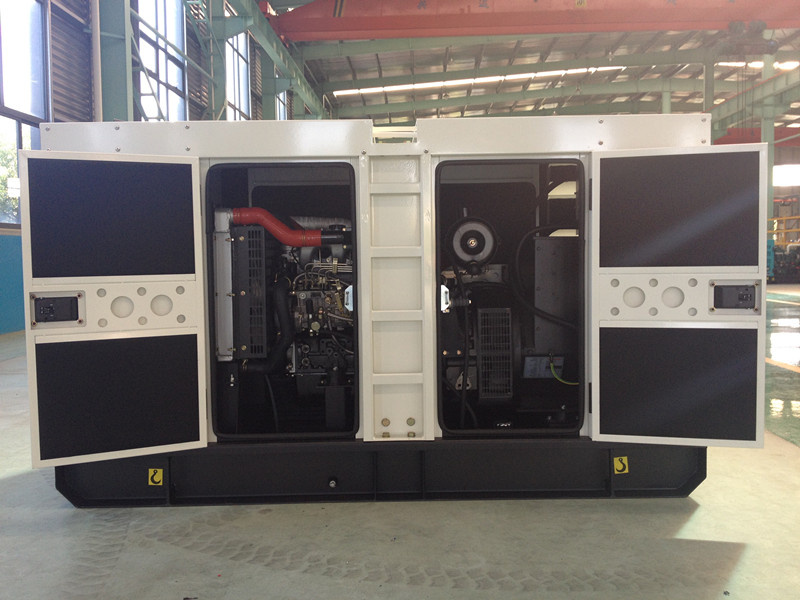

The components of the genset | |
(1) CUMMINS Diesel Engine; (2) Stamford Alternator; (3) Control Panel | |
Control Panel | |
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. | |
Safety
Design, production and testing of the generator sets comply with EU CE safety standard;
| Prod Model: | GDC50*S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: | Cummins 4BTA3.9-G2, Perkins, Mtu Is Optional |
| Alternator: | Stamford Uci224D, Marathon, Engga, Godlike |
| Controller: | Dse, Smartgen Is Optional |
| Rated Voltage: | 400V/415V/440V |
| Prime Power: | 40kw/50kVA |
| Load Test: | 25%, 50%, 75%, 100%, 110% |
| Type: | Basic Diesel Generator |
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
