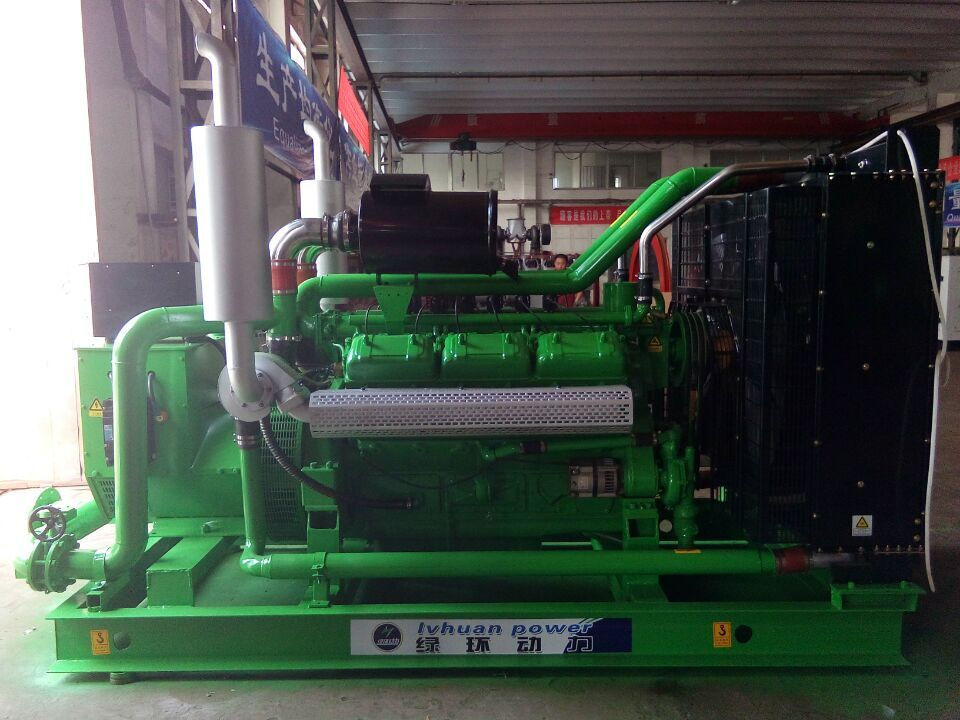

CE&ISO 200KW biomass electric generator set best price 12V135 engine
We have a sales staff can speak in Russian, If you from Russia, Kazakhstan , Ukraine, Belarus, Uzbekistan, and other countries,you can visit our Russian website: www.lvhuanpower.ru.
| Model Number (Engine Type) | LHBMG200 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 160KW/200KW |
| Rated Speed | 1500/1800RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant consumption | ≤1.0g/kw.h |
| Engine Capacity | 26.9L |
| Cylinder Number | 12 |
| Cylinder Bore | 138mm |
| Stroke | 150mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Chinese Stamford |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 3250x1450x2140mm |
| Weight | 3200kg |
Worksite requirements:
The worksite needs to meet following basic requirements:
a) Ambient temperature between -40ºC~45ºC;
b) Relative humidity less than 90%(35ºC);
c) Site elevation not higher than 2000m;
d) For outdoor installation, simple rain shelter is required.
Its main index requirements are as follows:hardness:0.7~5.3me/L ;
chloride ion content:<150mg/L; PH≤7~8.5
Fuel gas requirement:
1m distance away from genset's pressure regulating valve of inlet
1)Temperature of biomass gas ≤40ºC;
2)Pressure of biomass gas 3~10kPa, velocity of pressure≤ 1kPa/min;
3)H2S≤200mg/Nm3;
4)NH3≤20mg/Nm3
5)Tar Content ≤20%mg/Nm3
6) Impurities particle size≤5μm; impurity content≤30mg/Nm3;
7)Moisture Content of biomass ≤40g/Nm3;Heat value more than 4.2MJ/Nm3
