CE Certified Biogas Generator Set/Natural Gas Genset/Biogas Co-Generation Unit

CE Certified Biogas Generator Set/Natural Gas Genset/Biogas Co-Generation Unit
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram

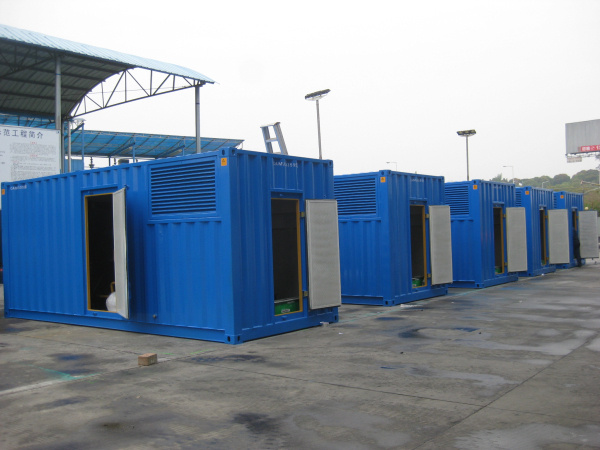

CUMMINS BIOGAS GENERATOR SET Introduction 1 Equipped with World famous engine brand: Cummins   2 High quality-price ratio       3 Stable Operation performance   4 Applied gas: Biogas gas, natural gas, oil gas 5 Leroy somer or stamford alternator 6 ComAp,Deepsea for automatically controlling; 7 ABB or Chint circuit breakers for options;   8 Auto air-fuel adjusting ;     9 Cylinder exhaust temperature display   10 CHP, Synchro panel with Grid, Silent Container, Remote radiator available; 11 Spare parts at Wholesale   Catalogue of 50HZ/60HZ CUMMINS BIOGAS GENERATOR SET   PROJECT SITE PICS GENSET WORKING CONDITION: ACCEPTABLE WORKING CONDITIONS: Ambient temperature : -40ºC~+45ºC (antifreeze or hot water needed for below -20ºC) Relative humidity:<90%(20ºC) Altitude:≤1000m NORMAL WORKING CONDITIONS: Genset can run at rated power on the conditions: Atmospheric Pressure: 100kPa, Ambient Temp: 20ºC, Relative Humidity: 30%. APPLIED GAS: Natural Gas, Biogas Acceptable gas pipeline pressure: 0.8~450kPa Engine inlet pressure: 0.8~5.0kPa (80~500mmH2O) CH4 content: for natural gas ≥85%; for biogas≥40% Sulphur content≤400ppm FEATURES AND ADVANTAGE 1 Experiment- evidential gas engine technology 2 overhaul term: 25000-30000 hours 3 Over 80% cogeneration efficiency 4 Economical and low-cost running: lower gas and oil consumption 5 Specially-designed air valves, crankshaft, camshaft, pistons, ignition system and combustion    chamber according to international brands gas engine technology(Waukesha, MAN, Guascor, Daewoo) 6 4 air valves design for each cylinder, sufficient air intake and exhaust, more air intake, to realize higher power output and stronger capability of load 7 Electronic Air/Fuel Ratio mixer, better combustion and lower emission, sufficient combustion to reduce gas consumption and increase engine heat efficiency, effectively lessen NOX emission. 8 Original Cummins engine body, 90% parts made by Cummins China factory, long life and durable engine parts produced strictly accord to ISO9001-2000 International Quality Management System 9 Unique air-fuel ratio adjusting system adapting 30%~70% CH4 Methane concentration 10 Integrated Crankshaft Forging for gas engine made by Cummins, different from other China     brands which the crankshaft is forged by subsections and then assembled into a whole. 11 Continuous 24hours running 12 Exceed 10-year genset repair and maintenance experience 13 Low pressure gas intake, biogas no need boosting pressure 14 Larger displacement engine to keep much surplus for genset power output. 15 Sound alarm and protection system 16 Electrical efficiency higher 10%~20% than other China brands 17 With good command of biogas anaerobic technology. 18 ISO standard production 19 Adopting high-precision special gas engine speed governor: precise speed governing, instant recovering ability so as to fit different loads upon the three signals: rotating speed, load and temperature. 20 Precisely-controlled engine air intake and exhaust time. 21 Advanced ignition sensor and ECU (Electronic Control Unit) ignition system with computer core: Precise ignition at right cylinder and right time, prompt startup ability to avoid the ratio of detonation and make stable engine. 22 Cylinder Block: High quality alloy cast iron for the rigidity performance and good stability. 23 Crankshaft and Rod: Robust and fully balanced crankshaft design for a more steadily rotation and higher strength. 24 Lubrication System: Dual spin-on filter can separate impurity above 10um effectively and lower cost. 25 Less accumulated carbon, reduces the abrasion between cylinder and valve, it can much prolong genset lifetime.
Prod Model: biogas genset with cummins engine
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Capacity Range: 20kw-500kw
Voltage: 380V, 440V, 220V, 110V
Frequency: 50Hz, 60Hz
Rpm: 1500.1800
Ignition System: Altronic
Alternator: Leroy Somer, Stamford, Marathon
Controller: Deepsea, Comap
Engine: Cummins
Air-Fuel Mixer: Huegli
Gas Source: Biogas
Power: 20-500kw
ALONG ENVIRON TECH LIMITED

Is a technical enterprise with focus on clean energy and environmental protection technology, with strong ability of research &develop, technology consultant, construction and operation of organic waste treatment project.

We specialized in supplying one-stop solution for biogas plants, Scope of cover:

1) Animal farm, Slaughter house: Anaerobic fermentation of animal manure

2) Food waste treatment

3) Biomass treatment project(straw, palm oil, wooden gas)

4) Organic wastewater treatment

5) Landfill

Our service and equipments are throughout Europe, Asia, South America and Africa,

Main products covers:

1) Design, installation and equipment supply for biogas plants under TURN-KEY;

2) Membrane products, such as membrane, single -membrane gas holders(separate standing or mounted on top of digester), double-membrane gas holders mounted on top of digester, high frequency welding machine(processing membrane to gas holders), etc;

3) Biogas power generation unit, such as open type, soundproof type, container type, co-generation unit.

4) Biogas purifying system, such as ceramic filter, gravel filter, desulfurizer, condensate tank, etc;

5) Digesters and parts, such as braid, in-tank mixer, pressed steel panel, etc.

6) Biogas blowers, such as roots blower, high-pressure blower, low-noise blower, ring blower, etc.

7) Pumps, such as grinding pump, progressing cavity pump and rotary lobe pump, etc.

8) Piping system, such as gate valve, butterfly valve, SS/PE/PVC biogas pipes, biogas pressure regulator, explosion-proof solenoid valve, flame arrestor, etc.

9) Instruments, such as gas meters, flowmeters, pressure gauge, biogas analyzer, digester thermometer, etc.

10) Waste processing machine, such as liquid-solid separator, double-shaft shredder, dryer, gasifier, etc.

Biogas is an environmentally friendly Resource which is renewable energy, it contributes to environment protection, Agriculture development, solving energy problems;
