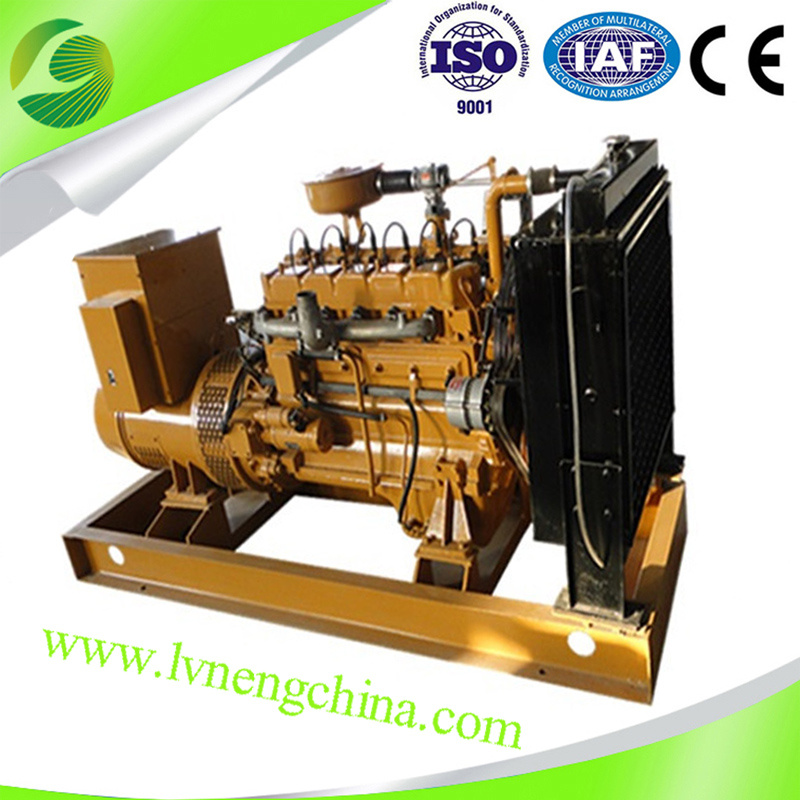

CE approved small power plant natural gas generator (50kw)
Worksite requirements
The worksite needs to meet following basic requirements:
A) Ambient temperature between -40º C~40º C;
B) Relative humidity less than 95%(35º C);
C) Site elevation not higher than 2500m;
D) For outdoor installation, simple rain shelter is required.
Gas requirements
1m from genset's pressure regulating valve of inlet
1. Pressure of natural gas: 80~300kPa
2. CH4 content of natural gas≥ 70%
3. H2S≤ 20mg/Nm3
4. Impurities particle size≤ 5μ M, impurity content≤ 30mg/Nm3
Purification of natural gas has a significant impact on machine life and continuous running time!
The advantage of our generator set
1. Can adapt to the changing of gas power generation, gas concentration control system has the function of gas concentration range set, through effective set concentration range, guarantee in the case of concentration changes has been in the best air/fuel ratio. To keep a stable output power and continuous.
2. Gas pressure≥ 5kP(Naturally aspirated generator set ), Low pressure gas transportation safety performance is good
3. High power gas turbine control technology mature, the international famous brands such as caterpillar, wacker summer gas, natural gas units adopt the control technology.
4. Especially in 400 kw gas main important parts used only 190 engine parts, "gold medal" brand green ring USES the spare parts is one of the world's most advanced high sophisticated processing equipment, ensure the spare parts has the characteristic such as high machining precision, reliable performance, to ensure the reliability of the gas generator and durability
| Parameter of Natural Gas Generator Set |
| Model Number (Engine Type) | LNNG50 |
| Brand Name | LVNENG |
| Prime Power/Standby Power | 40KW/50KW |
| Rated Speed | 1500/1800RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤ ±2% |
| Voltage transient | ≤ ±10% |
| Voltage Stable time | ≤ 1s |
| Heat consumption | ≤ 9.8mj/kw.h |
| Lubricant consumption | ≤ 1.0g/kw.h |
| Engine Capacity | 6.49L |
| Cylinder Number | 6 |
| Cylinder Bore | 105mm |
| Stroke | 125mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Chinese Stamford |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 2300x1000x1480mm |
| Weight | 1350kg |
JiNan LVNENG POWER MACHINERY EQUIPMENT Co., Ltd was founded in July, 2009. It's located in high-tech development zone in the east of Jinan city with advantageous geographical position and good transport facilities The Company owns two factory regions research and production, with more than 150 staffs in company. And twenty of them are high-level technical talented person We own developed production line, impeccable quality test system and professional sale and service-after-sell team, and our company is committed to research production marketing and after-sale service of synthesis firm. With our excellent quality product and perfect after-sale service, we won praises and approbation from our customers.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. And our main products are kinds of diesel engines, diesel generator and fuel gas generator, including natural gas generator methane gas generator straw gas generator biomass gas generator sets coal gas generator, coke oven gas generator sets, Mobile power station(Mobile trailer series), Static-speaker unit, Diesel engine and diesel generator sets etc.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
All large, medium and small power products can be produced and the power performance, economical efficiency and reliability are all in the advanced level of this field, with the improvement of R & D department, Our Company install the valve seal and exhaust temperature meter for the products which are out form company, really save fuel consumption/automatic temperature control. For the vast number of users to save a lot of cost, has been widely praised by users
JiNan LVNENG POWER MACHINERY EQUIPMENT CO, . Ltd persist in scientific and technological innovation manage Innovation development direction Always insist on customer-first Business ideas of Mutual benefit, insist on Energy saving and environmental protection Safe and reliable quality policy Insist on fast\Exquisite Standard Service tenet. Inherit" Quality is the first, credit as prerequisite" as Core concept, constantly creating greater value for customers, Promoting sustained and healthy development of the company
"LVNENG, Dedication power \Pursuit excellence" A broad application market, quality products, quality and service will be our cooperation to build a good platform. Join hands with LVNENG success-together. Looking forward to Look forward to working with you.
