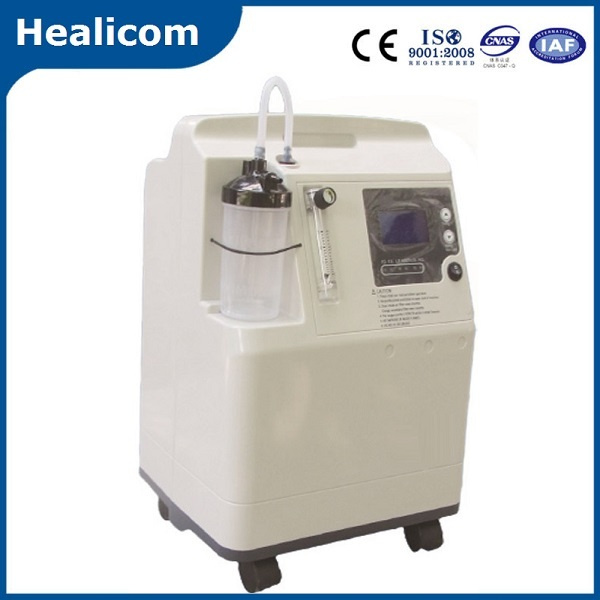

Our JAY-3 0-3L/min health care oxygen concentrator has light weight and is easy to use. After being connected to power, this oxygen equipment can produce oxygen quickly. This is a safe and trustworthy product with service life longer than 5 years.
Features
1. Adopting PSA physical method to produce oxygen, this oxygen gas generator is safe and economical.
2. The oxygen flow rate can be adjusted from 0L/min to 3L/min.
3. Our JAY-3 oxygen concentrator is equipped with a PLC display which can show the operating pressure, operating temperature, present working time, accumulated working time, preset time, etc.
4. Designed with timing function, the oxygen producing machine will stop working automatically when it reaches to the preset time.
5. Imported molecular sieve and humidification bottle (pressure relief valve value: 6spi) have been used in our products.
6. The OCSI (oxygen concentration status indicator) guarantees stable oxygen concentration and allows the user to use our oxygen generating equipment without any worries.
7. Our oxygen concentrator has alarm system for temperature, high/low pressure and power failure. The alarm system ensures safe machine operation.
Application
Our economical oxygen concentrator is suitable for the home rehabilitation oxygen therapy for respiratory system diseases, cardio vascular and cerebral vascular system diseases and altitude sickness.
Model |
JAY-3 |
JAY-5Q |
Flow rate |
0-3L/min |
0-5L/min |
Purity |
93±3% |
Outlet Pressure (Mpa) |
0.04-0.07 |
Sound Level |
≤38db |
≤40db |
Power |
AC220V±10%, 50/60±1Hz; AC110V±10%, 50/60±1Hz |
Power Consumption |
≤280W |
≤350W |
LCD display |
Switch time, operating pressure, present working time, accumulating time and presetting timing from 10mins to 40hours |
Alarm |
Power failure alarm, High & Low pressure alarm |
Net Weight |
14Kgs |
16Kgs |
Size (mm) |
320×360×600mm |
OPTIONAL |
*Nebulizer
*Low purity alarm: when oxygen purity is above 82%, it will give green light; when the purity is blow 82%( 82% not included), it will give red light
*Maintenance alarm: alarm for maintenance after 3000 hours operation
*Alarm for high temperature inside systems above 50°C
*Pulse oximeter: fingertip pulse oximeter is available for monitoring patient oxygen saturation on site.
*Small LCD display: accumulating time; present working time presetting time. |
