Home Generator Products CE Approved Hummer Small Sized 48V Wind Turbine Generators

CE Approved Hummer Small Sized 48V Wind Turbine Generators

CE Approved Hummer Small Sized 48V Wind Turbine Generators
Price: US $ 6340/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

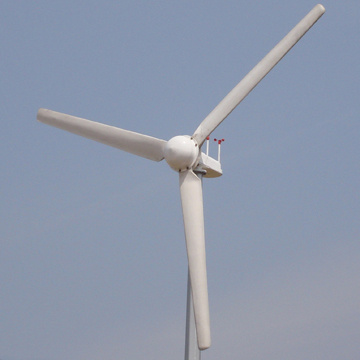

Hummer 48V Wind Turbine Generator

1. Product features:

1) SCF (Supercritical generator technology) as core, Feature is extremely light &small&fasting&stable with higher power efficiency.
2) Adopt SKF bearings, which have a 15 years life span without maintenance
3)Adopts the smart touch-screen PLC (Programmable Logic Controller) which is integrated with Siemens controlling unit.
4)Specail machinery yaw shaft base on folding-up tail design with patents for against strong wind to protect itself and keep balance.
5)National patents and international patent ensure the perfect performance.

2. Application area:

1) Housing, office, farm and factory;
2) Telecommunications Station
3) TV Transfer Station;
4) Monitoring Station (military, hydrology, observatory)
5) Water-pumping Station;

3. Company strong strength:

1)High Technology--Won gold award of 37th World Invention Exposition in Brussels Eureka WITH 7 Patents;
2)High Quality--CE, UL, ISO Certificate;
3)Hight Service--Long time warranty with Unique Service department.

4. Currently product range:

1)500W-100kw wind turbine Off-grid /Grid-tied;
2)400W-600W Wind-Solar LED street light and traffic light;
3)Wind-Solar hybrid generating system;
4)Wind-Solar-Diesel hybrid generating system;
5) 1KW-5KW 48V system for Telecom/Mobile Stations

Rated  power(W)5000
Maximum  output  power(W)7500
Charging  voltage(V)DC48V
Blade  quantity(PCS)3
Rotor  blade  materialGRP
Rotor  blade  diameter(m)6.4
Start-up  wind  speed(m/s)2.5
Rated  wind  speed(m/s)10
Rated  rotating  rate(r/min)240
Tower  height(m)12m
Generator  weight(kg)147
Speed regulation methodYawing+electromagnetism braking (Customize hydraulic Braking)

Prod Model: 1KW to 5KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Generator Type: Permanent Magnet Generator
System Output Voltage (VDC): 110/220 Single Phase or 380 Three Phases
Certificate: CE, UL,ISO
Direction Of Rotation: Clockwise Looking Upwind
Working Wind Speed: 3m/S to 25m/S
Over Speed Control: Electromagnetism Brake, Yawing
Survival Wind Speed: 50m/S
Blade Material: Fiber Glass
Tower Selection: Guyed Tower, Freestanding Tower or Hydraulic Tower
Number Of Blade: Three Blade
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Phase: Three Phase
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.

We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.

There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.

All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.

Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.

Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
