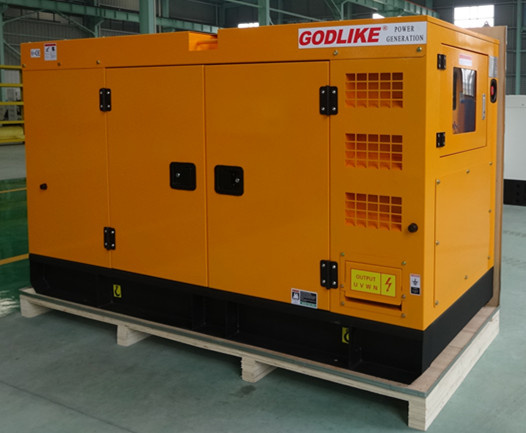

CE Approved Famous Engine 40kw/50kVA Electric Generator (GDYD50*S)

CE Approved Famous Engine 40kw/50kVA Electric Generator (GDYD50*S)

Gensets model: GDYDseries
Prime power: 50KVA/40kW
Standby power: 55kVA/44KW
Rated Voltage: 400/230V
Rated Current: 360A
Rated frequency(Hz): 50
Rated Speed: 1500rpm

Engine brand: Yangdong
Model: Y4102D
Cylinder arrangement: Natural Aspirated
Cycle: Four stroke
Aspiration: Turbocharged and Water/Air cooling
Speed Governor Electronic
Cooling System Forced Water Cooling Cycle
Starting Method DC24V electrical starting

Alternator brand: Stamford Copy Alternator
Model: JDG224
Number of Phase: 3P
Connecting Type: 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP23
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper winding wire
Insulation Class: H.
Control Panel
It includes:
1. Automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button

Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers' request
3. Polyester varnish for appearance protecting for shining and raining
4. Two hours testing before out factory
5. ISO9001 and CE certification

Factory Inspection, the test items before delivery are mainly as follows:
1. Each genset should be put into commission more than 4 hours totally. They are tested on idle load, fully load and 10% overload.
2. The noise level is be tested.
3. All the metres on the control panel should be tested
4. The appearance of the gensets and all of the label and nameplate shall be checked.

YANGDONG configuration and technical data

50HZ, 3 Phase, 400/230V
No.	GENSET Model	OUTPUT POWER 1500RPM 50HZ				Engine Model	Alternator Model	Weight	Dimensions (L*W*H, mm)	Fuel Cons.
		Prime KVA	Prime KW	Standby KVA	standby KW	YANGDONG	GODLIKE	KGS	Silent type	(lir/hr)
1	GDYD11*S	11	9	13	10	YD380D	JDG164B	613	1800*850*1112	3
2	GDYD13*S	13	10	14	11	YD385D	JDG164C	624.5	1800*850*1112	3.36
3	GDYD16*S	16	13	18	14	YD480D	JDG164D	670	2000*950*1150	3.39
4	GDYD19*S	19	16	21	17	YND485D	JDG184E	747	2000*950*1150	4.7
5	GDYD24*S	24	19	26	21	YSD490D	JDG184E	706	2100*1000*1250	6
6	GDYD28*S	28	22	30	24	Y490D	JDG184F	736	2100*1000*1250	9
7	GDYD31*S	31	25	34	27	Y495D	JDG184G	/	2100*1000*1250	9.8
8	GDYD34*S	34	27	38	30	Y4100D	JDG184H	748.4	2300*1000*1250	10.2
9	GDYD38*S	38	30	41	33	Y4102D	JDG184H	938	2300*1000*1250	11.4
10	GDYD44*S	44	35	48	38	Y4105D	JDG184J	968	2300*1000*1250	13.2
11	GDYD55*S	55	44	60	48	Y4102ZLD	JDG224ES	/	/	/
12	GDYD63*S	63	50	69	55	Y4105ZLD	JDG224E	/	/	/
