CE Approved Factory 40kw/50kVA Cummins Silent Diesel Generator (GDC50*S)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
CE approved factory 40kw/50kVA Cummins Silent Diesel Generator (GDC50*S)
Scope of Supply: 1-Brand new engine and brushless AVR controlled alternator
2-Set mounted Smartgen Auto Controller
3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown.
4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank.
5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables.
6-Genset equipped with industrial silencer and flexible exhaust hose.
7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade).
8-Genset with filtering systems including air filter, fuel filter & lub-oil filter.
9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternatorWarranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost pricesOur service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
Generator general specifications:
| Genset model | GDC50*S |
| Type | sound proof/weather proof/canopy |
| Genset output power range | 40kw/50kva |
| Rated voltage | 220/380V,230/400V,240/415V,120/240V |
| Frequency | 50/60HZ |
| Power factor | 0.8 |
| Rated speed | 1500/1800rpm |
| output type | AC three phase/single phase |
| Motor | brushless |
| Frequency | <3% |
| Frequency at stable state: | <0.5% |
| Frequency deviation at instantaneous state | ≤+10% |
| Frequency return time | ≤3s |
| Voltage deviation at stable state | ≤±1% |
| Voltage deviation at instantaneous state | ≤+20% |
| Voltage return time | ≤4s |
| Voltage modulation | ≤0.3% |
2.The specification of engine: | Model | Cummins 4BTA3.9-G2 |
| Cooling Method | water cooled |
| Rotating speed | 1500rpm/1800rpm |
| Governor system | electrical or mechanical governor |
| Aspiration mode | natural aspirated or turbocharged |
| Starting method | 12/24V DC electric starting |
| Stroke | 4 stroke |
3.The specification of alternator: | Brand | Stamford, Leroy semor, Maraton etc. |
| Regulator | AVR automatic voltage regulating |
| Excite type | pret or shunt |
| Connecting type | 3PH star, 3PH-DELTA |
| Steady frequency change | 0-5% |
| No load voltage | ≥95%-105 |
| Steady voltage | ≤±1 |
| Insulation degree | H degree |
| Exclosure degree | IP23 |
Cummins generator series main specifications| Engine | Alternator (Copy type and original) | Prime Power | Standby Power |
| Cummins | GODLIKE | STAMFORD | KVA | KW | KVA | KW |
| 4B3.9G1/24KW | JDG 184F/22KW | PI144E/20KW | 25 | 20 | 28 | 22 |
| 4B3.9G2/24KW | JDG 184F/22KW | PI144E/20KW | 25 | 20 | 28 | 22 |
| 4BT3.9G1/36KW | JDG 184G/25KW | PI144G/24KW | 30 | 24 | 33 | 26 |
| 4BT3.9G2/36KW | JDG 184G25KW | PI144G/24KW | 30 | 24 | 33 | 26 |
| 4BT3.9G1/36KW | JDG184H/30KW | PI144J/32KW | 38 | 30 | 41 | 33 |
| 4BT3.9G2/36KW | JDG184H/30KW | PI144J/32KW | 38 | 30 | 41 | 33 |
| 4BTA3.9G2/50KW | JDG 224D/40KW | UCI224D/40KW | 50 | 40 | 55 | 44 |
| 4BTA3.9G2/58KW | JDG 224E/48KW | UCI224E/48KW | 60 | 48 | 66 | 53 |
| 4BTA3.9G11/70KW | JDG224GS/64KW | UCI224G/68KW | 75 | 60 | 83 | 66 |
| 6BT5.9G1/86KW | JDG 274C/80KW | UCI274C/80KW | 100 | 80 | 110 | 88 |
| 6BT5.9G2/86KW | JDG 274C/80KW | UCI274C/80KW | 100 | 80 | 110 | 88 |
| 6BTA5.9G2/106KW | JDG 274DS/96KW | UCI274D/96KW | 120 | 96 | 132 | 106 |
| 6BTAA5.9G2 /120KW | JDG 274ES/112KW | UCI274E/112KW | 138 | 110 | 151 | 121 |
| 6BTAA5.9G12 /140KW | JDG274F/128KW | UCI274F/128KW | 160 | 128 | 176 | 141 |
| 6CTA8.3G1/163KW | JDG274G/152KW | UCI274G/145.6KW | 188 | 150 | 206 | 165 |
| 6CTA8.3G2/163KW | JDG274G/152KW | UCI274G/145.6KW | 188 | 150 | 206 | 165 |
| 6CTAA8.3G2/183KW | JDG 274H/160KW | UCI274H/160KW | 200 | 160 | 220 | 176 |
| 6LTAA8.9G2/220KW | JDG 274J/184KW | UCDI274J/184KW | 225 | 180 | 248 | 198 |
| 6LTAA8.9G2/220KW | JDG 274K/200KW | UCDI274K/200KW | 250 | 200 | 275 | 220 |
| NT855-GA/231KW | JDG274K/200KW | UCDI274K/200KW | 250 | 200 | 275 | 220 |
| 6LTAA8.9G3/230KW | JDG314DS/220KW | HCI444C/200KW | 263 | 210 | 289 | 231 |
| NTA855-G1A /264KW | JDG 314DS/220KW | HCI444D/240KW | 275 | 220 | 303 | 242 |
| NTA855-G1B/284KW | JDG 314ESS/250KW | HCI444ES/260KW | 313 | 250 | 344 | 275 |
| MTAA11-G3 /282KW | JDG 314ESS/250KW | HCI444ES/260KW | 313 | 250 | 344 | 275 |
| NTA855-G2A /312KW | JDG 314E/280KW | HCI444E/280KW | 344 | 275 | 378 | 303 |
| NTA855-G4/317KW | JDG 314E/280KW | HCI444E/280KW | 350 | 280 | 385 | 308 |
| 6ZTAA13-G3/340KW | JDG 314FS/304KW | HCI444FS/304KW | 375 | 300 | 413 | 330 |
| NTAA855-G7/343KW | JDG 314FS/304KW | HCI444FS/304KW | 375 | 300 | 413 | 330 |
| NTAA855-G7A/407KW | JDG 314F/320KW | HCI444F/320KW | 400 | 320 | 440 | 352 |
| NTAA855-G7A/407KW | JDG 354C/360KW | HCI544C/400KW | / | / | 450 | 360 |
| 6ZTAA13-G2/390KW | JDG 354C/360KW | HCI544C/400KW | 438 | 350 | 480 | 385 |
| 6ZTAA13-G4/400KW | JDG 354C/360KW | HCI544C/400KW | 450 | 360 | 495 | 396 |
| KTA19-G3 /403KW | JDG 354C/360KW | HCI544C/400KW | 450 | 360 | 495 | 396 |
| QSZ13-G2/400KW | JDG 354C/360KW | HCI544C/400KW | 450 | 360 | 495 | 396 |
| QSZ13-G3/450KW | JDG 354D/400KW | HCI544C/400KW | 500 | 400 | 550 | 440 |
| KTA19-G3A/448KW | JDG 354D/400KW | HCI544C/400KW | 500 | 400 | 550 | 440 |
| KTA19-G4 /448KW | JDG 354D/400KW | HCI544C/400KW | 500 | 400 | 550 | 440 |
| KTAA19-G5 /470KW | JDG 354ES/450KW | HCI544D/440KW | 525 | 420 | 578 | 462 |
| KTAA19-G6/520KW | JDG 354E/480KW | HCI544E/488KW | 575 | 460 | 633 | 506 |
| KTA19-G8/575KW | JDG 354E/480KW | HCI544E/488KW | 600 | 480 | 660 | 528 |
| KTA19-G8/575KW | JDG354F/536KW | HCI544F/536KW | / | / | 650 | 520 |
| KTAA19-G6A/610KW | JDG 354FS/500KW | HCI544FS/500KW | 625 | 500 | 688 | 550 |
| KTAA19-G6A/610KW | JDG 354G/560KW | LVI634B/600KW | / | / | 688 | 550 |
| KT38-G/560KW | JDG 354FS/500KW | HCI544FS/500KW | 625 | 500 | 688 | 550 |
| KT38-GA/711KW | JDG 354G/560KW | HCI544F/536KW | 700 | 560 | 770 | 616 |
| KT38-GA/711KW | JDG 404C/640KW | LVI634C/640KW | / | / | 800 | 640 |
| KTA38-G1/634KW | JDG 354G/560KW | LVI634B/600KW | 713 | 570 | 784 | 627 |
| KTA38-G2/664KW | JDG 404B/600KW | LVI634B/600KW | 750 | 600 | 825 | 660 |
| KTA38-G2B/711KW | JDG 404C/640KW | LVI634C/640KW | 800 | 640 | 880 | 704 |
| KTA38-G2A/813KW | JDG 404D/728KW | LVI634D/728KW | 910 | 728 | 1001 | 801 |
| KTA38-G4/880KW | JDG 404E/800KW | LVI634E/800KW | 1000 | 800 | 1100 | 880 |
| KTA38-G4/880KW | JDG 404F/900KW | LVI634F/904KW | / | / | 1100 | 880 |
| KTA38-G5/880KW | JDG 404E/800KW | LVI634E/800KW | 1000 | 800 | 1100 | 880 |
| KTA38-G9/1089KW | JDG 404F/900KW | LVI634F/904KW | 1125 | 900 | 1238 | 990 |
| KTA38-G9/1089KW | JDG404G/1000KW | LVI634G/1000KW | / | / | 1250 | 1000 |
| KTA50-G3/1097KW | JDG 404G/1000KW | LVI634G/1000KW | 1250 | 1000 | 1375 | 1100 |
| KTA50-G8/1200KW | JDG454B/1120KW | PI734A/1008KW | 1375 | 1100 | 1513 | 1210 |
| KTA50-GS8/1287KW | JDG454C/1240KW | PI734B/1120KW | 1475 | 1180 | 1623 | 1298 |

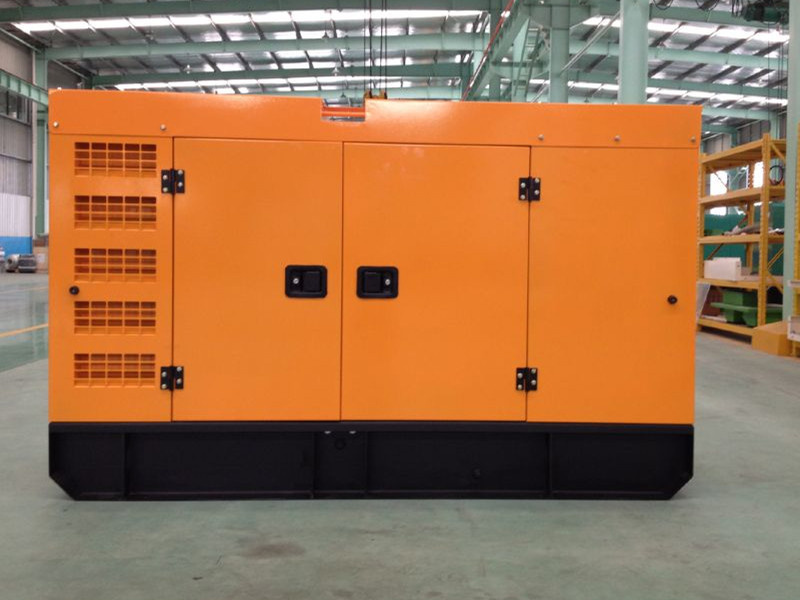

40kw 50kva silent diesel generator pictures:
European and Australia market recommend silent diesel generators:
Contact: Ms Vicki Yuan
Tel:86 514 80915716
| Prod Model: |
GDC50*S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Cummins Brand, Mtu, Deutz Is Optional |
| Alternator: |
Stamford, Marathon, Engga, Godlike |
| Controller: |
Dse, Smartgen Is Optional |
| Function: |
ATS, Amf, Mobile, Open, Soundproof Is Optional |
| Certificate: |
CE, ISO, SGS |
| Voltage Range: |
110V-690V |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
