| Price: | US $ 112000/Roll |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Paypal,Western Union |
1) the running cost of biogas generator is lower.
2) Our engineer will install the biogas generator on your site.

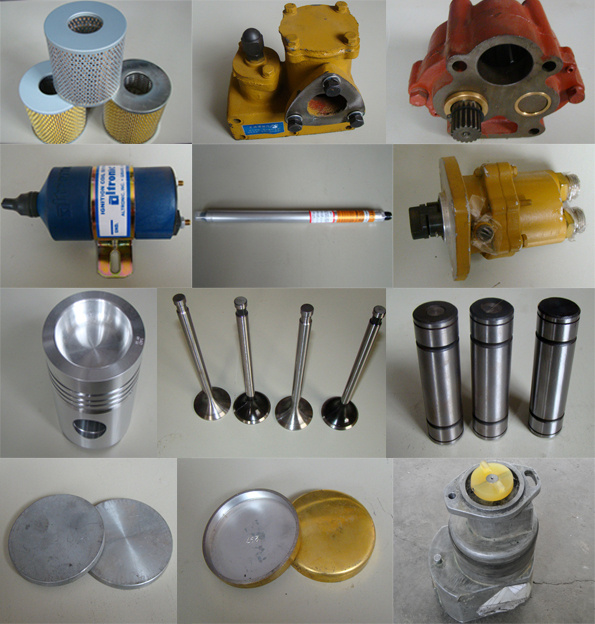

3) spare parts can be offered
TECHNICAL PARAMETER OF BIOGAS GENSET
| Model No. | CW-500GFZ |
| Engine No. | 12V190ZLDT-2 |
| Gas mix type | outside |
| Rated power | 500kw |
| Continuous Power | 400kw |
| Rated voltage | 400V/230V |
| phase | 3p4w |
| Rated frequency | 50Hz |
| Rated rotation | 1000r/min |
| Rated power factor | 0.8 |
| Rated current | 902A |
| Frequency volatility rate | ≤0.5% |
| Voltage regulating range | 95-105% |
| Heat consumption | ≤11.5mj/kw.h |
| Lubricant consumption | ≤1.5g/kw.h |
| pressure | 3-20kpa |
| Cylinder number | 12-V |
| Cylinder diameter | 190mm |
| stroke | 210mm |
| Compression ratio | 8:1 |
| Starting mode | 24V electric motor |
| Overhaul time | ≥25000h |
| Noise | ≤105dB(A) |
| Intake mode | Supercharging, inter cooler |
| Sparking mode | Spark plug |
| Voltage regulation mode | automatic |
| Speed regulation mode | electronic speed regulate |
| Lubrication mode | Pressure and splash |
| Cooling mode | Circulating water cooling |
| Exhaust temperature | ≤650ºC |
| Displacement | 71.45L |
| Genset dimensions | 6000×1970×2735 |
PARTS FOR GENSET
| Prod Model: | CW-500GFZ biogas engine |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Generator: | 500kw Biogas Generator |
| Gas Source: | Biogas |
