CE Approved Affordable Price 80kw/100kVA Silent Europe Engine Generator (GDC100*S)Specifications
1) Power range: 100kVA /80kw
2) Brushless Synchronous A. C. Alternator,
3) Stamford& Leroy somer Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
5) Rated voltage 400V, 110-690V option
Control system:
1. Automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button
Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
1. Specification of genset |
Gensets model | GDC100*S |
Prime power | 100KVA |
Rated Voltage | 380/220V |
Rated frequency(HZ) | 50 |
Rated Speed | 1500rpm |
Power Factor(COS) | 0.8(lagging) |
Dimensions(mm) (L×W×H) -- silent type | 2880x1140x1800 |
Net Weight(kg) | 1100 |
Noise Level | 72 db(A) at 7 meters |
2. Specification of diesel engine |
Engine brand | UK Imported |
Engine model | 1104C-44TAG2 |
Number of Cylinders | 4 |
Cylinder arrangement | Vertical in-line |
Cycle | Four stroke |
Aspiration | Turbo Charged |
Bore×Stroke (mm×mm) | 105×127 |
Displacement (Liter) | 6.6 |
Compression Ratio | 18.2:1 |
Maximum Standby Power at Rated RPM | 103kw/138bhp |
Speed Governor | Electronic |
Cooling System | Forced Water Cooling Cycle |
Lub. oil capacity (L) | 8 |
Fuel Consumption, Stand-by (L/h) | 22.6 |
Starting Method | DC 24V Electrical starting |
3. Specification of alternator |
Alternator brand | Stamford |
Alternator model | UCI274C |
Number of Phase | 3 |
Connecting Type | 3 Phases and 4 Wires |
Number of Bearing | 1 |
Protection Grade | IP23 |
Maximum Capacity | 115KVA |
Altitude | ≤1000m |
Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
Insulation Class | H |
Telephone Influence Factor (TIF) | ≤50 |
THF | ≤2% |
Voltage Regulation, Steady State | ≤±1% |
Transient State Voltage | ≤-15%~+20% |
4. Specification of control Panel(with Harsen controller) |
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with alarm of low oil pressure,high water temperature,over speed,over load protection function. |

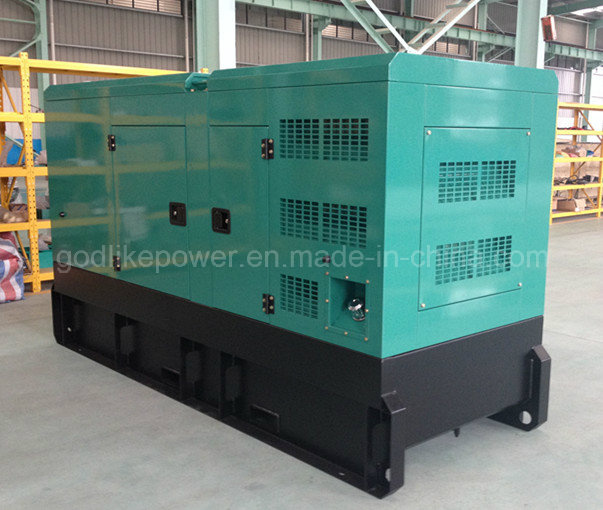

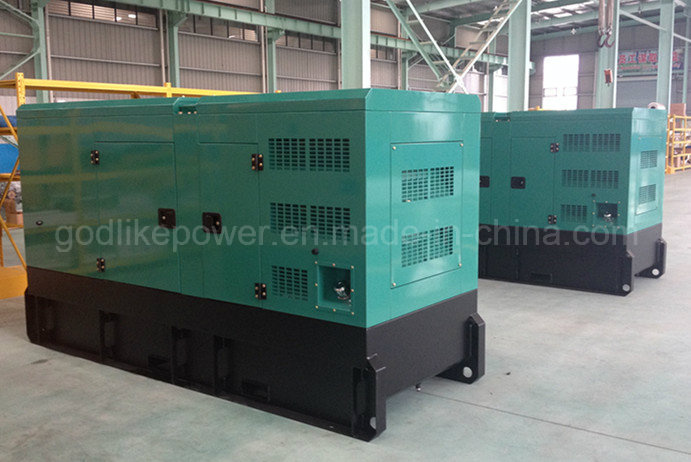

Generator photos:
