Home Generator Products CE Approved AC 3 Phase Biomass Electric Generator (100KW)

CE Approved AC 3 Phase Biomass Electric Generator (100KW)

CE Approved AC 3 Phase Biomass Electric Generator (100KW)
Price: US $ 1/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T
 CE Approved AC 3 phase
biomass electric generator(100KW)


Biomass generator system requirements for gas

 Within 1meter from gas intake valve of generator
1. Gas temperature ≤ 40ºC
2. Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min
3. H2S ≤ 200mg/Nm3
4. NH3 ≤ 20mg/Nm3
5. CH4 content ≥ 40%, changing rage ≤ 2%/min
6. Tar Content ≤ 20 mg/Nm3
7. Heat value ≥ 4.2MJ/Nm3
8. Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
9. Moisture content ≤ 40g/Nm3

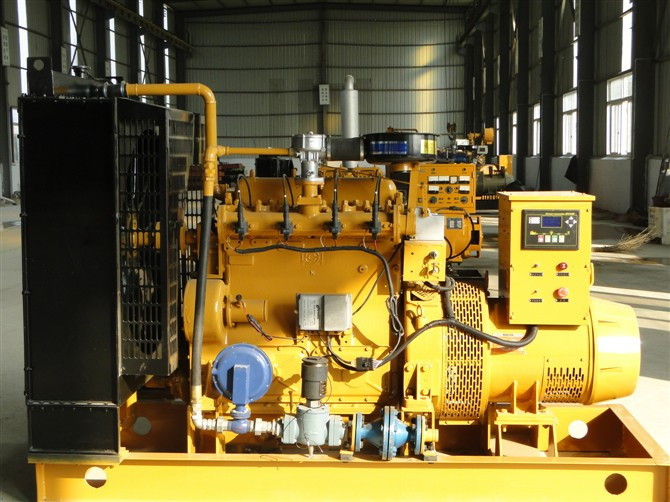

                                                     parameter of Biomass Generator Set
Model Number (Engine Type) LHBMG100
Brand Name LVHUAN
Prime Power/Standby Power 80KW/100KW
Rated Speed 1500/1800RPM
Rated Frequency 50/60Hz
Rated Voltage 400V/230V
Phase AC 3-Phase, 4 wire
Voltage Stability ≤ ±2%
Voltage transient ≤ ±10%
Voltage Stable time ≤ 1s
Heat consumption ≤ 9.8mj/kw.h
Lubricant consumption ≤ 1.0g/kw.h
Engine Capacity 12.90 L
Cylinder Number 6
Cylinder Bore 135mm
Stroke 150mm
Starting System DC 24V electric motor
Cooling method water cooler
Lubricant method Passive and flying lubricant
Isolation class H
Protection IP23
Alternator Chinese Stamford
Power Factor 0.8 lagging
Exciting method brushless
Colour your choice
Certificates ISO 9001:2008, CE
Warranty 1 year or 1000 running hours which arrives first
Type Open
Control system Automatic alarm system
Size 2850x1100x1750mm
Weight 1900kg

Prod Model: LHBMG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Intake Mode: Natural Intake
Sparking Mode: Spark Plug
Cooling Mode: Circulating Water Cooling
Gas Source: Biomass
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.

Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.

We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.

Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
