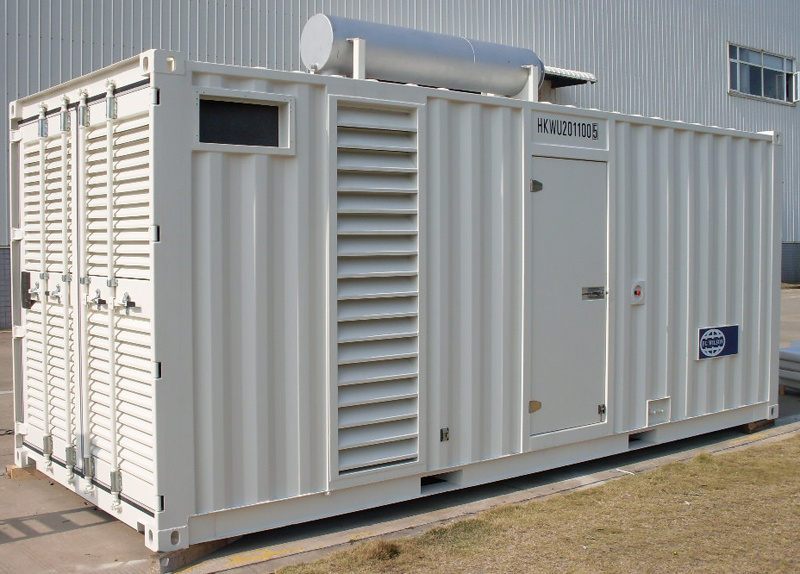

CE approved 800kW/1000kVA Silent Cummins Diesel Generator (GDC1000*S)
Cummins Engine: KTA38-G5
Stamford/ GODLIKE alternator
Control Panel: Smartgen/ Deepsea
Circuit breaker: Chint/ Delixi
Generator type: Diesel / Silent
Prime Power: 800KW/ 1000KVA, 50Hz / 400V / 3Phase
Warranty 1year/1000hour limited (whichever comes first)
GODLIKE Power Generation controller integrating digital, intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.
1, HGM6110 control panel
2, Using microprocessor as a core, graphics LCD with big screen & back light;
3, Control protection: Manual start/stop, load transfer and alarming of generator;
4, Display of generator cumulated electricity energy;
5, Security password - protected programming levels;
6, Several crank success conditions are opitional;
7, Builtin speed/ frequency detecting units can accurately judge the states such as crank success and over speed;
8, Power supply range is wide, accommodating to different starting battery voltage environment;
9, All parameters use digital modulation, abandoning analog modulation using conventional electronic potentiometer, reliability and stability are increased;
10, Built-in watch dog can never be dead halt, ensuring smooth program execution;
11, Modular configuration design, inserted type connection terminal, flush type installation, compact structure, easy installation.
DIESEL GENERATOR | Diesel Generator Model | GDC1000*S |
Prime power (KW/KVA) | 800/1000 |
Standby power (KW/KVA) | 880/1100 |
Rated voltage(V) | 220/380 |
Rated current (A) | 1600 |
Frequency(Hz) | 50 |
Rated Rotary Speed (RPM) | 1500 |
Power factor | 0.8 |
Power supply mode | 3 phase,4wire |
Starting method | 24 V DC |
ENGINE | Diesel Engine | Cummins |
Model | KTA38-G5 |
Engine prime power (KW) | 880 |
Engine standby power(KW/KVA) | 970/1213 |
Cylinder Qty. | 12 |
Fuel consumption.(L/ h) | 209 |
Bore(mm) *Stroke (mm) | 159*159 |
Compression rate | 13.9:1 |
Cooling liquid volume (L) | 124 |
Displacement(L) | 37.8 |
Lubricant capacity (L) | 135 |
Cooling method | Water cooled |
Intake method | Turbocharged |
ALTERNATOR | Alternator Features: 1. Stamford alternator 2. Brushless, 4 poles, rotation magnet 3. IP23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤±1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adaptors and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof |
CCEC Cummins Diesel Generator Set (50Hz) |
Cummins Engine Series | Power(kw/kva) | Cylinders No. | Displacement(L) | Lubricating Capacity(L) | Fuel Consumption(g/kw.h) | Dimention(mm*mm*mm) | Weight(Kg) |
|
MTA11-G3 | 260/325 | 6/L | 10.8 | 39 | 206 | 2800*1000*1600 | 3200 |
NTA855-G1 | 200/250 | 6/L | 14 | 36.7 | 206 | 3000*1100*1750 | 2600 |
NTA855-G1A | 240/300 | 6/L | 14 | 36.7 | 206 | 3000*1100*1750 | 2900 |
NTA855-G1B | 260/325 | 6/L | 14 | 36.7 | 206 | 3020*1100*1900 | 2950 |
NTA855-G2 | 260/325 | 6/L | 14 | 36.7 | 206 | 3020*1100*1900 | 2600 |
NTA855-G2A | 280/350 | 6/L | 14 | 36.7 | 206 | 3020*1100*1900 | 3000 |
NTA855-G4 | 280/350 | 6/L | 14 | 36.7 | 206 | 3250*1160*1900 | 3100 |
NTAA855-G7 | 300/375 | 6/L | 14 | 36.7 | 206 | 3250*1160*1900 | 3250 |
NTAA855-G7A | N/A | 6/L | 14 | 36.7 | 206 | 3250*1160*1900 | 3250 |
KTA19-G3 | 360/450 | 6/L | 18.9 | 50 | 210 | 3400*1360*2030 | 3500 |
KTA19-G4 | 400/500 | 6/L | 18.9 | 50 | 210 | 3400*1360*2030 | 3650 |
KTAA19-G5 | 440/550 | 6/L | 18.9 | 50 | 210 | 3650*1800*2100 | 4000 |
KTAA19-G6A | 500/625 | 6/L | 18.9 | 50 | 203 | 3650*1800*2100 | 4300 |
QSK19-G3 | 520/650 | 6/L | 18.9 | 50 | 203 | 4550*2060*2450 | N/A |
KTA38-G2 | 600/750 | 12V | 37.8 | 135 | 206 | 4550*2060*2450 | 8650 |
KTA38-G2B | 640/800 | 12V | 37.8 | 135 | 206 | 4800*2060*2450 | 8650 |
KTA38-G2A | 728/910 | 12V | 37.8 | 135 | 213 | 4800*2060*2450 | 8700 |
KTA38-G5 | 800/1000 | 12V | 37.8 | 135 | 213 | 4800*2060*2450 | 9370 |
KTA38-G9 | 904/1130 | 12V | 37.8 | 135 | 210 | 5200*2100*2600 | 9500 |
KTA50-G3 | 1000/1250 | 16V | 50.3 | 177 | 210 | 5200*2100*2600 | 11000 |
KTA50-G8 | 1008/1260 | 16V | 50.3 | 204 | 210 | 5200*2100*2600 | 12000 |
KTA50-GS8 | 11201400 | 16V | 50.3 | 210 | 210 | 5200*2100*2600 | 12100 |
| | | | | | | |
Cummins Diesel Generator Set (60Hz) |
Cummins Engine Series | Power(kw/kva) | Cylinders No. | Displacement(L) | Lubricating Capacity(L) | Fuel Consumption(g/kw.h) | Dimention(mm*mm*mm) | Weight(Kg) |
|
NTA855-G1 | 240/300 | 6/L | 14 | 36.7 | 206 | 3000*1100*1750 | 2600 |
NTA855-G1B | 288/360 | 6/L | 14 | 36.7 | 206 | 3020*1100*1900 | 2950 |
NTA855-G3 | 336/420 | 6/L | 14 | 36.7 | 206 | 3250*1160*1900 | 3100 |
KTA19-G2 | 384/480 | 6/L | 18.9 | 50 | 210 | 3400*1360*2030 | 3500 |
KTA19-G3 | 440/550 | 6/L | 18.9 | 50 | 210 | 3400*1360*2030 | 3500 |
KTAA19-G4 | 475/594 | 6/L | 18.9 | 50 | 210 | 3650*1800*2100 | 4000 |
KTAA19-G5 | 500/625 | 6/L | 18.9 | 50 | 210 | 3650*1800*2100 | 4000 |
KTAA19-G6A | 570/713 | 6/L | 18.9 | 50 | 203 | 3650*1800*2100 | 4300 |
KT38-G | 620/775 | 12V | 37.8 | 135 | 206 | 4550*2060*2450 | 8650 |
KTA38-G2 | 740/925 | 12V | 37.8 | 135 | 206 | 4550*2060*2450 | 8650 |
KTA38-G2A | 850/1063 | 12V | 37.8 | 135 | 206 | 4550*2060*2450 | 8650 |
KTA38-G4 | 960/1200 | 12V | 37.8 | 135 | 213 | 4800*2060*2450 | 9370 |
KTA38-G9 | 1000/1250 | 12V | 37.8 | 135 | 210 | 5200*2100*2600 | 9500 |
KTA50-G3 | 1120/1400 | 16V | 50.3 | 177 | 210 | 5200*2100*2600 | 11000 |
KTA50-G9 | 12001500 | 16V | 50.3 | 210 | 210 | 5200*2100*2600 | 12100 |
