CE Approved 50Hz 250kVA/200kw Silent Cummins Generator (GDC250*S)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
CE Approved 50Hz 250kVA/200kw Silent Cummins Generator (GDC250*S)
Scope of Supply:
1-Brand new engine and brushless AVR controlled alternator
2-Set mounted Smartgen Auto Controller
3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown.
4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank.
5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables.
6-Genset equipped with industrial silencer and flexible exhaust hose.
7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade).
8-Genset with filtering systems including air filter, fuel filter & lub-oil filter.
9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternatorControl SystemMicro-processor cored digital system.Multiple languages, automatic control.Connected with the mains through ATS, which can help realize automatic transfer between the mains and the generators. Also, multiple generators can be paralleled for bigger power needs. 250KVA/200KW Generator Main Specifictaions:GenSet Model | GDC250*S |
Continuous Output | 200KW / 250KVA |
Engine Brand & Model | Cummins NT855-GA |
Type | Water-cooled, 4-stroke, Natural Engine |
No. of cylinder | 6 |
Bore x Stroke | 114x145mm |
Engine power | 220kw |
Compression ratio | 17.3: 1 |
Fuel consumption | ≤ 207g/kw. h |
Displacement | 8.9L |
Engine speed | 1500rpm |
| |
Lubricant Capacity | 28L |
| |
Starting system | D. C. 24V electric start |
Cooling way | Positive Water Cooling Cycle |
Alternator Brand & Model | GODLIKE JDG274K |
Frequency | 50HZ |
Voltage | 380/220V |
No. of phases | 3 |
Excitation | brushless |
Insulation class | H |
Power factor | 0.8 |
Protection Grade | IP23 |
Altitude | ≤ 1000m |
Voltage Regulation, Steady State | ≤ ± 1% |

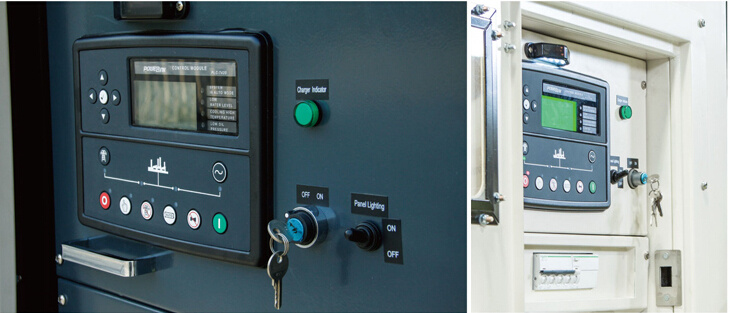

Control Panel - Standard equipped or LCD digital control module |
Base Fuel Tank & battery included |
Options: ATS |

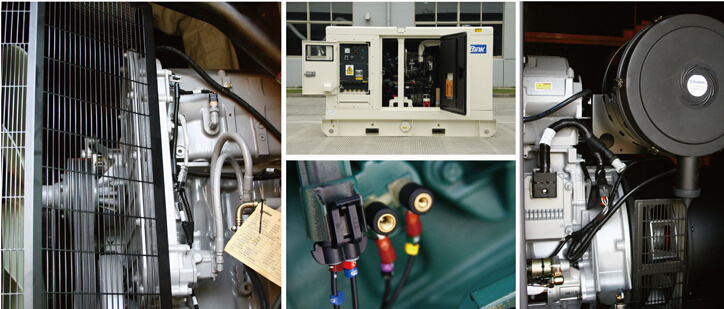

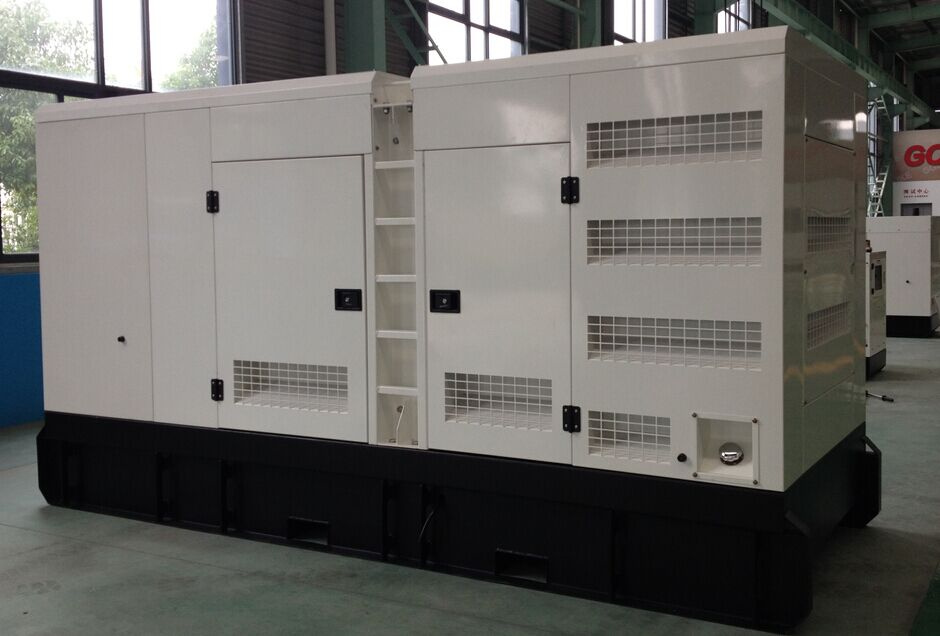

250kVA 200kW Soundproof Type Generator photos
Contact: Ms Vicki YuanTel:86 514 80915716
Prod Model: |
GDC250*S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine: |
Cummins Brand, Deutz, Perkins Is Optional |
Alternator: |
Stamford, Marathon, Engga, Godlike |
Controller: |
Dse, Smartgen Is Optional |
Function: |
ATS, Amf, Synchronised Panel |
Color: |
Optional |
Certificate: |
CE, ISO, SGS etc |
Test Load: |
25%, 50%, 75%, 100%, 110% |
Type: |
Basic Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
