Home Generator Products CE Approved 40kw Cummins Diesel Generator 60Hz in Stock for Sale

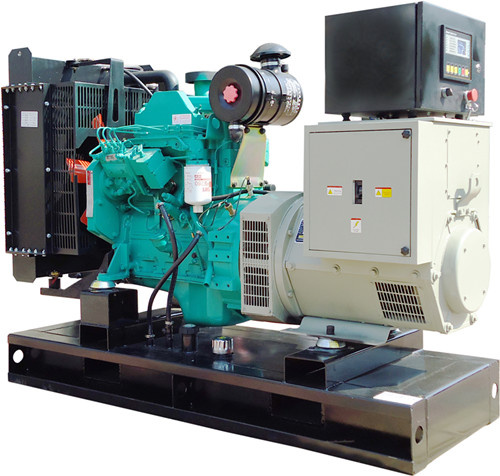

CE Approved 40kw Cummins Diesel Generator 60Hz in Stock for Sale

CE Approved 40kw Cummins Diesel Generator 60Hz in Stock for Sale
Price: US $ 7900/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T


Product Description

1.International Warranty Service
2. Short delivery time
3. With ISO9001& CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator or Chinese alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz
8. Rigorous test including 50% load, 75% load, 100% load and 110% load



Model No.STANDBY POWERPRIME POWERENGINEALTERNATORCONTROLLER
KVAKWKVAKW
OCL60-50504045364BT3.9-G2LTG184H16110
254/440VAC,60Hz,0.8PF (lag),Three phase four wires

Generator set specifications

Governor ClassISO8528 G3
Potential Drop1%
Steady Voltage Regulation1%
Frequency DropSynchronous(0%)
Steady-state Frequency0.25%
R.R.I.SuppressionBS EN 61000-6-4 / BS EN 61000-6-2
Fuel Consumption Rate ,g/kw.h(L/hr)215(9.5)
Starting Battery Capacity ,A/hrhhr60*2
Total Coolant Capacity ,L21
Fuel Capacity (base tank),LN/A
Engine Data
Model4BT3.9-G2
TypeIn-line 4 Cylinder,4 Cycle
Displacement ,L3.9
Compression Ration16.5:1
AspirationTurbo
Fuel SystemA Type Fuel Pump,EFC Electronic Governor
Bore*Stroke(mm)102*120
Rated Speed ,rpm1800
Governor TypeElectronic
Starting Voltage24V ,Negative ground
Battery Charging System24V 35A
Lubricant Capacity ,L11
Coolant Capacity, L21
Alternator Data
Protection ClassIP21
Insulation ClassClass H
Temperature Rise in Standard125 ºC(When Ambient Temp.is 40 ºC)
Excitation TypeBrushless & Self-excited
Waveform DistortionNo load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)<50
Telephone Interference(THF)<2%
Exhaust System
Exhaust air flow7.1m3/min
Exhaust Temperature  487ºC
Max Back Pressure 10kPa
Air Intake System
Max Intake Restriction6.35kPa
Burning Capacity2.96m3/min
Air Flow150m3/min
Lubricant System
Total Lubricant Capacity11L
Lubricant Consumption4g/kwh
Engine Oil Tank Capacity9.5L
Oil Pressure at Rated Speed345kPa

Cooling System
Total Coolant Capacity21L
Thermostat82-95ºC
Max Water Temperature104ºC

SMARTGEN CONTROLLER
6110 Controller6120 Controller
CHARACTERISTICS:
·LCD DISPLAYStarting up can accumulate Max.999999 times
Using microprocessor as a core, Symbol LCD with backlight·Control protection: Automatic crank/stop of diesel engine, load
  Display, two languages display, key touch operation  Transfer(ATS control) and completely faults display protection
·RS485 PORT·With ETS, idle control, pre-eat control, raises speed control
Have a RS485 port with Modus communication protocol  functions and all types of them are belong to relay output
·Adapt to 3 phase- 4 wires, single phase-2 wires or ·Parameters setting: Allow user to modify setting and store
2 phase- 3 wires(120/240V),50/60Hz AC power system.  Them by inside internal FLASH memory, the parameters can
·Measure and display 3 phase voltage, 3 phase current,not be lost even with power off. All of parameters can be set
  frequency, power,etc.parameter of mains and gens:  not only from the front panel, but by PC via SG72(an adaptor,
MAINS                       GENSUSB-LINK-RS485) module; or, through RS485 port via PC
Line voltage(Uab,Ubc,Uca)   Line voltage(Uab,Ubc,Uca)·Most of temperature, pressure, oil level sensor can be directly
Phase voltage(Ua,Ub,Uc)    Phase voltage(Ua,Ub,Uc)  Used, and also user can define sensor curve by themselves
Frequency   Hz              Frequency   Hz·Multiple crank disconnection conditions can be selected.
   (Speed sensor, oil pressure, gens)
  LOAD·Power supply range is wide(8~35) VDC, accommodating to
  Power current(IA,IB,IC)   Apparent power     kVA  Different starting battery voltage environments
  Active power Kw         Power factors      Cos·All parameters use digital modulation, abandoning analog
  Inactive power kVar      Accumulate total gens power kWh  Modulation using conventional electronic potentiometer, more
·Mains have over voltage, under voltage, loss phase function  Reliability and stability
 ;Gens have over voltage, under voltage, over frequency, under·Modular configuration design, Flame Retardant ABS plastic
frequency, over current function  Shell, inserted type connection terminals, flush type
·Precision measure and display parameters about Engine,  installation, compact structure, easy installation
Temp. (WT),             ºC/ºF both are display
  Oil pressure(OP)         kPa/Psi/Bar all be display
  Fuel oil level(FL)         %(unit)
  Speed(SPD)             RPM(unit)
  Voltage of Battery(VB)    V(unit)
  Voltage of chargert(VD)   V(unit)
  Hour count(HC) can accumulate Max.999999 hours



FAQ(Frequently Asked Question):

1.     What is your warranty period?
Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.

2.     Does your generator have global warranty?
Yes, most of our products like Cummins diesel generator enjoy the global warranty service. And the alternator we use like Leateck also enjoy the global warranty service, so you do not need to worry about the aftersales service.

3.     Can you accept OEM?
Yes, we can accept OEM.

4.     What is your payment  terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight.

5.     What is your delivery time?
Our normal delivery time is 20 to 25 days. But if your order is some special engine and alternator, then the delivery time is longer.

Contact Details:
FOSHAN ORIPO POWER ENGINEERING CO.,LTD
Contact person:Janet
Mobile:+86-18923200408
Fax:0757-28791208

Web:http: //en.oripo.com
Prod Model: OCL60-50
Markets: South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Dimension: 2500*1000*1602mm
Alternator: Leateck/Stamford
Control Panel: LED Control panel
Insulation Grade: H
Protection Grade: IP21-23
Start System: Electric Start
Type: Micro-Computer Control Automatic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.

Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.

During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
