Home Generator Products CE Approved, 2.8kw, Silent Diesel Generator (TP3500DGS)

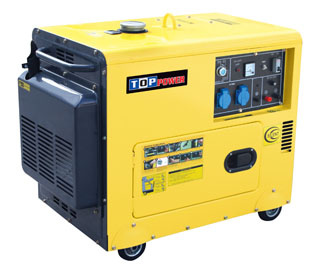

CE Approved, 2.8kw, Silent Diesel Generator (TP3500DGS)

CE Approved, 2.8kw, Silent Diesel Generator (TP3500DGS)
Price: US $ 479-499/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Rated frequency: 50Hz or 60Hz Rated voltage: 110/220/230/240/380V Rated output: 2.8kw/50Hz, 3.0kw/60Hz Power factor: 1.0 Phase: Single or 3 phase Noise level: 70-72dB(A) @ 7m Structure type: Silent type Engine No: TP178FE Displacement: 296cc Compression ratio: 20: 1 Fuel type: 0#(summer) -10#(winter) -35#(chiness) diesel Lube oil type: CD grade or SAE 10W-30, 15W-40 Starting system: Electric start Battery: Include Voltage regulator: AVR Wheels and handels: Include Recoil starter: Optional ATS: Optional Remote control: Optional Protection system: Low oil alarm and circuit breaker Net weight: 100kg Gross weight: 110kg Overal dimension: 950*570*770mm
SILENT TYPE TP3500DGS TP5500DGS TP6500DGS TP7500DGS
Rated frequency[Hz] 50/60
Rated voltage[V] 110/115/120/220/230/240,110/220,115/230,120/240
Rated output power[KVA] 2.8/3.0 4.0/4.5 4.5/5.0 5.5/6.0
Max output power[KVA] 3.0/3.5 4.5/5.0 5.0/5.5 6.0/6.5
Rated rotation speed[rpm] 3000/3600
Power factor[cos@] 1.0
Phase number Single phase
Noise level[Db(A)@7m] 70-74
Excitation mode Self-excitation brushless
Engine model Single cylinder,4-stroke,air-cooled,direct injection, diesel engine
Engine type 178FE 186FE 186FAE 188F
Displacement[ml(cu/in)] 296 406 418 456
Compression ratio 20:1 19:1
Starting system Electric start
Rotation dircetion Clockwise
Fuel 0#(summer) or -10#(winter) -35#(chillness) diesel oil
Lube CDgrade or SAE 10W-30,15W-40
Low oil pressure alert system With
Overall dimension(LxWxH)[mm] 880x565x770 950x565x770
Dry weight[kg] 150 160 170 175
Prod Model: TP3500DGS
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery: Include
ATS: Optional
Cooling Method: Air Cooled
Stroke: Four Stroke
Installation Method: Portable
Type: Basic Diesel Generator
Output Type: AC Single Phase
Our company has always insisted on relying quality to seek survival, benefit to seek development. Use fine after-sale service to meet the needs of consumers. Honesty and credit. Products are sold well all over our country. Warmly welcome all fields of friends to visit our company and negotiate trade.
