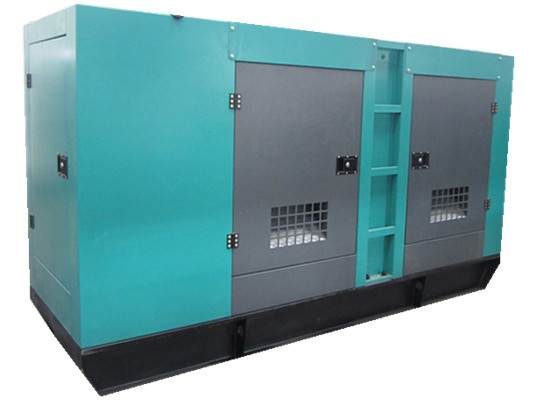

CE Approved 160kw Electric Power Diesel Generator by Cummins Engine
Price: |
US $ 18000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Product Description
1.International Warranty Service
2. Short delivery time
3. With ISO9001 SGS & CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator or Chinese alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz
Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER |
KVA | KW | KVA | KW |
OCL-225 | 225 | 180 | 200 | 160 | 6CTAA8.3-G2 | LTG274J1 | 6110 |
230/400VAC,50Hz,0.8PF (lag),Three phase four wires Generator set specificationsGovernor Class | ISO8528 G3 |
Potential Drop | 1% |
Steady Voltage Regulation | 1% |
Frequency Drop | Synchronous(0%) |
Steady-state Frequency | 0.25% |
R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
Fuel Consumption Rate ,g/kw.h(L/hr) | 210(39) |
Starting Battery Capacity ,A/hrhhr | 150*2 |
Total Coolant Capacity ,L | 40 |
Fuel Capacity (base tank),L | N/A |
Engine DataModel | 6CTAA8.3-G2 |
Type | In-line 6 Cylinder,4 Cycle |
Displacement ,L | 8.3 |
Compression Ration | 16.0:1 |
Aspiration | Turbo, Air / Air Cooling |
Fuel System | PB/W type Fuel Pump,EFC Electronic Governor |
Bore*Stroke(mm) | 114*135 |
Rated Speed ,rpm | 1500 |
Governor Type | Electronic |
Starting Voltage | 24V ,Negative ground |
Battery Charging System | 24V 35A |
Lubricant Capacity ,L | 24 |
Coolant Capacity, L | 40 |
Alternator DataProtection Class | IP21 |
Insulation Class | Class H |
Temperature Rise in Standard | 125 ºC(When Ambient Temp.is 40 ºC) |
Excitation Type | Brushless & Self-excited |
Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
Telephone Interference(TIF) | <50 |
Telephone Interference(THF) | <2% |
Exhaust SystemExhaust air flow | 29.1m3/min |
Exhaust Temperature | 545ºC |
Max Back Pressure | 10kPa |
Air Intake SystemMax Intake Restriction | 6.35kPa |
Burning Capacity | 11.2m3/min |
Air Flow | 300m3/min |
Lubricant System Total Lubricant Capacity | 24L |
Lubricant Consumption | ≤4g/kwh |
Engine Oil Tank Capacity | 18.9L |
Oil Pressure at Rated Speed | 276-414kPa |
FAQ(Frequently Asked Question): 1. What is your warranty period?Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period. 2. Does your generator have global warranty?Yes, most of our products like Cummins diesel generator enjoy the global warranty service. And the alternator we use like Leateck also enjoy the global warranty service, so you do not need to worry about the aftersales service. 3. Can you accept OEM?Yes, we can accept OEM. 4. What is your payment terms? We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. 5. What is your delivery time? Our normal delivery time is 20 to 25 days. But if your order is some special engine and alternator, then the delivery time is longer. Contact Details:FOSHAN ORIPO POWER ENGINEERING CO.,LTDContact person:Janet
Mobile:+8618923200408
Fax:0757-28791208
Web:http://en.oripo.com
Prod Model: |
OCL-225 |
Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Dimension: |
3700*1300*1887mm |
Type: |
Micro-Computer Control Automatic Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
