CE certificate
Canton fair booth

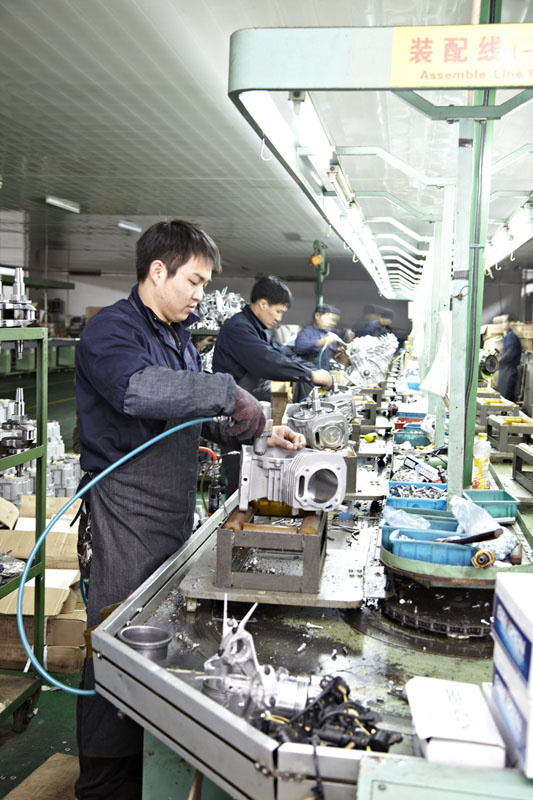

Factory
Warranty:16 months
MOQ:100 sets
Delivery time:20-25days after received deposit
The quotation show as picture are common supplied,we can supply as per your specific requests.
Port of Shipment: NingBo, China
Terms of Payment:1. 30% T.T deposit in advance,the balance payment before delivery 2. L/C At Sight

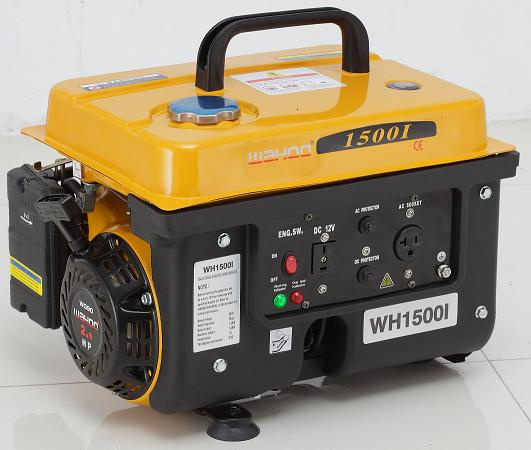

Model No. |
WH1500i |
Rated frequency(Hz) |
50 |
Rated voltage(V) |
230 |
Rated output power(kW) |
1.0 |
Max. output power(kW) |
1.2 |
Rated rotation speed(rpm) |
3000 |
DC output |
12V 8A |
Power factor |
1.0 |
Phase number |
singe |
Noise level dB@7m |
70-72 |
Fuel tank (L) |
7 |
Engine model |
WG90 |
Engien type |
Single cylinder, 4-stroke, air-cooled, OHV, gasoline engine |
Displacement (cc) |
87 |
Compression ratio |
8.5: 1 |
Rated rotation speed(rpm) |
2.6/3600 |
T. C. I. |
With |
Spark plug |
E7TC |
Starting system |
Recoil starter |
Rotation direction |
Clockwise |
Fuel type |
Automotive unleaded gasoline |
Lube oil brand |
SAE10W30 (above CC grade) |
Low oil alarm system |
With |
|
|
|
|
Packing |
|
|
|
Packing: natural carton box |
|
|
|
Net Weight(kg) |
22 |
Gross Weight(kg) |
23 |
Outer-Carton(mm) |
Length |
Width |
Height |
450 |
355 |
315 |
Container Type |
20FT |
40FT |
40HQ |
QTY |
|
|
|
