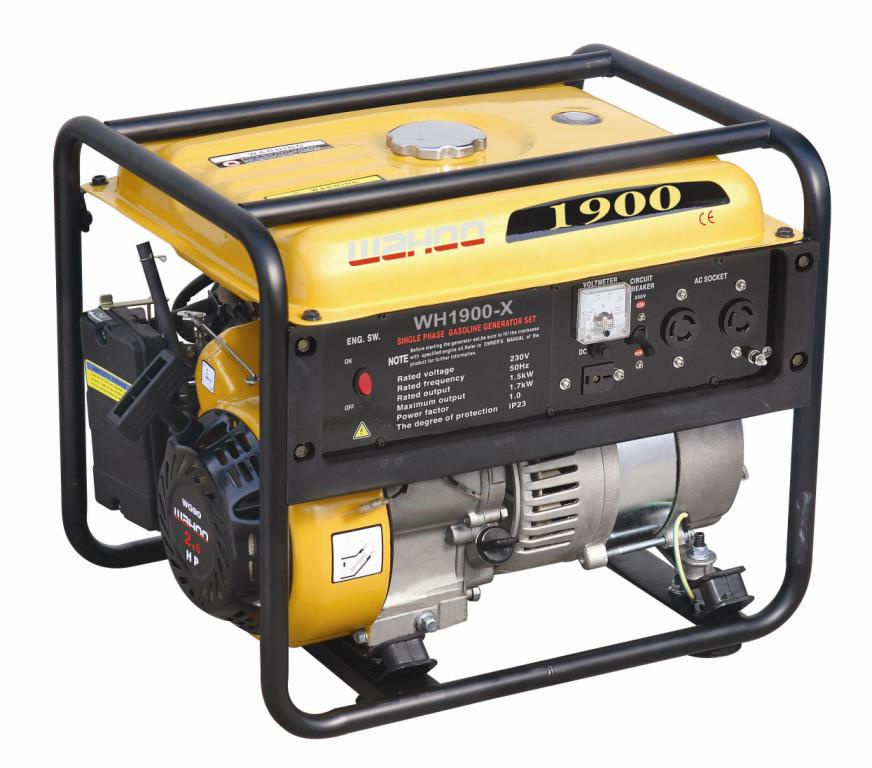

Model: WH1900-X
Specification:
Rated frequency (Hz): 50
Rated voltage (V): 230
Rated output power (kW): 1.5
Max output power (kW): 1.7
Rated rotation speed (rpm): 3000
DC output: 12V 8A
Power factor cos: 1.0
Phase number: Single phase
Noise level dB (A)/7m (zero load-full load): 68-72
Fule tank[L]: 18
Overall dimensions [mm] ( L x W x H ): 543 x434x445
N. W/G. W[Kg]: 40/42
Engine model: WG160
Engine type: Single cylinder, 4-stroke, air-cooled, OHV, gasoline engine
Displacement [CC]: 163
Compression ratio: 8.5: 1
Rated power [(HP/rpm]: 5.5/3600
Rated rotation speed (rpm): 3600
T. C. I: with
Spark plug: F6RTC
Starting system: Recoil starter
Rotation direction (view from flywheel): Clockwise
Fuel type: Automotive unleaded gasoline
Lube oil brand: SAE10W30 (above CC grade)
Low oil alarm system: with

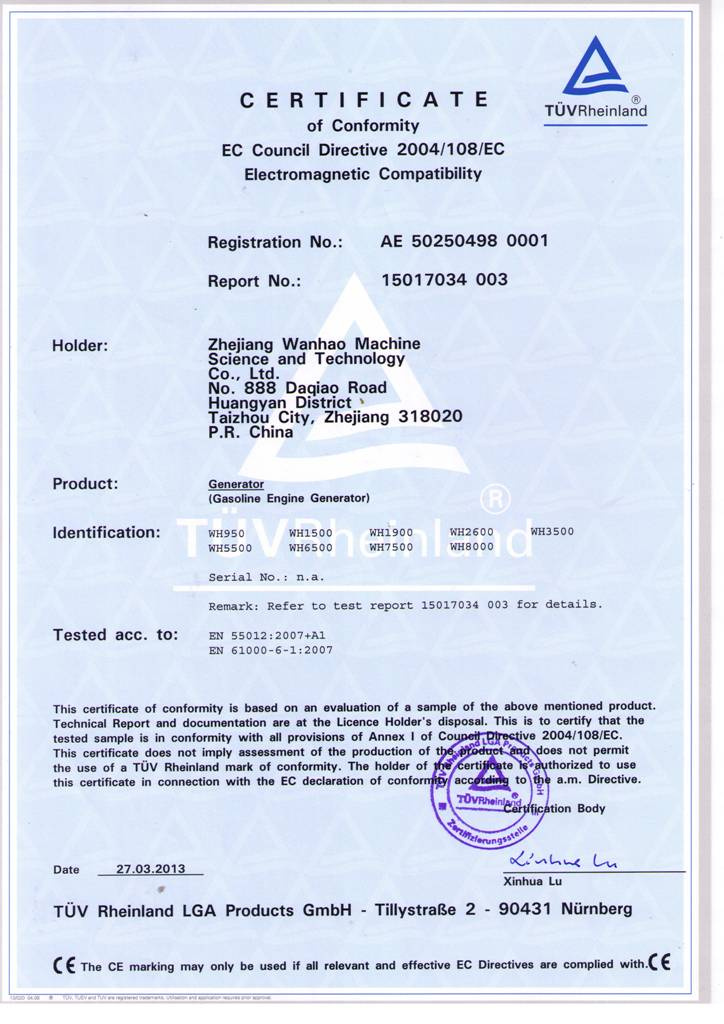

CE certificate

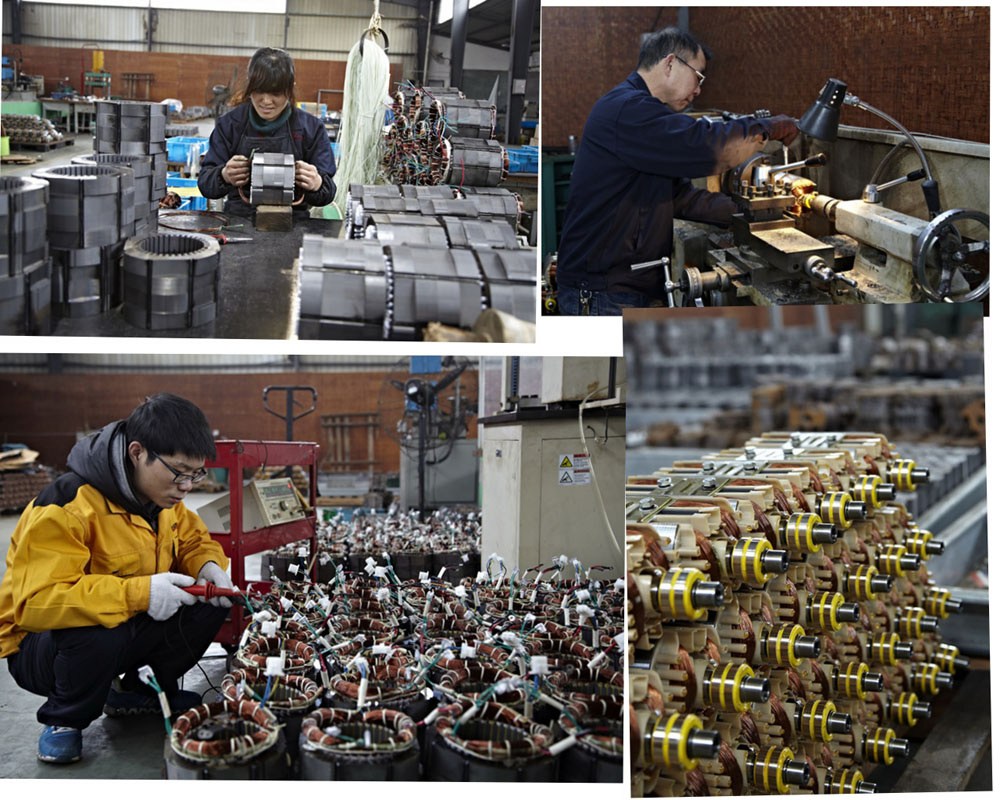

Workshop
Container loading
|
Machine Name |
Brand & Model No. |
Quantity |
Number of Year(s) Used |
|
Punching Machine |
J23, JB04-1 |
7 |
5.0 |
|
Cutting Machine |
215 |
3 |
5.0 |
|
Tube Bending Machine |
DB38 |
3 |
5.0 |
|
Plate Shearing Machine |
QC12Y-4*2500 |
1 |
5.0 |
|
Drilling Machine |
Z512,Z4116 |
8 |
5.0 |
|
Bench Milling Machine |
Xj51 |
1 |
5.0 |
|
Welding Machine |
TCW-32D, NBC-350, DN160 |
10 |
4.0 |
|
Winding Machine |
PR-2 |
2 |
4.0 |
|
Cleaning Machine |
ZQX-2000 |
1 |
3.0 |
|
Marking Machine |
HUAPU |
2 |
4.0 |
|
Hydraulic Machine |
MAOYI, 5T |
8 |
4.0 |
|
Testing Machinery:
|
Machine Name |
Brand & Model No. |
Quantity |
Number of Year(s) Used |
|
Withstand Voltage Tester |
CS2670A |
4 |
3.0 |
|
Low DC Resistance Tester |
TH2512, WB2511A |
2 |
3.0 |
|
Performance Test Bench |
No Information |
4 |
5.0 |
|
Spring Tension Tester |
TLS-S |
1 |
3.0 |
|
Rockwell Apparatus |
HR-150A |
2 |
3.0 |
|
Gear Runout Tester |
1-6mm |
1 |
3.0 |
|
Torque Tester |
NJ-100 |
1 |
3.0 |
|
Test Platform |
No Information |
1 |
3.0 |
|
Inverter Welder Tester |
SJ |
1 |
4.0 |
|
Turbine Dynamometer |
No Information |
2 |
4.0 |
