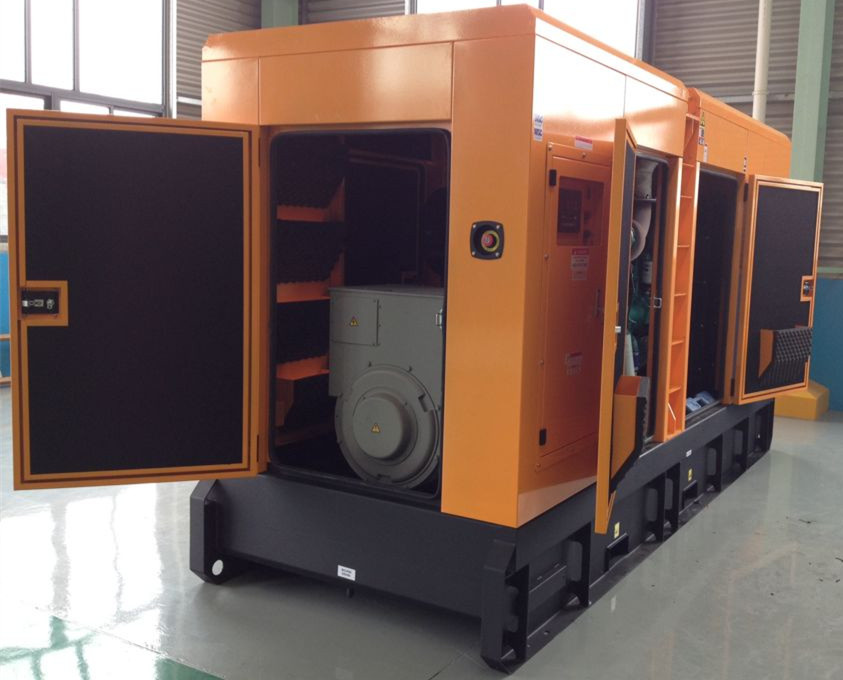

CE appoved 440kw/550kVA Electric Diesel Generator Silent (GDC550*S)
1. CE,ISO certificate
2. Genuine cummins engine, Deutz,Perkins,MTU is optional
3. Low noise type
Scope of Supply:
1-Brand new engine and brushless AVR controlled alternator
2-Set mounted Smartgen Auto Controller
3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown.
4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank.
5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables.
6-Genset equipped with industrial silencer and flexible exhaust hose.
7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade).
8-Genset with filtering systems including air filter, fuel filter & lub-oil filter.
9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternator
General features:
MODEL | GDC550*S |
| Standby Power ( 50Hz ) | 440KW /550KVA |
| Prime Power ( 50Hz ) | 400KW /500KVA |
| | | | | | | | | |
| ENGINE DATA |
| Brand and Model: | Cummins KTA19-G4 |
| Air Intake System: | Turbo, Water/Air cooling |
| Fuel System: | PT type fuel pump, EFC |
| Cylinder Arrangement: | 6 in line |
| Displacement: | 18.9L |
| Bore and Stroke: | 159×159 ( mm ) |
| Compression Ratio: | 14.5:1 |
| Rated RPM: | 1500rpm |
| Max. Standby Power at Rated RPM: | 504KW/684HP |
| Governor Type: | Electronic |
| Exhaust System |
| Exhaust Gas Flow: | 1604L/s |
| Exhaust Temperature: | 557 °C |
| Max Back Pressure: | 10kPa |
| Air Intake System |
| Max Intake Restriction: | 6.23kPa |
| Burning Capacity: | 579L/s |
| Fuel System |
| 100%(Prime Power) Load Consumption: | 203 g/Kw.h |
| 75%(Prime Power) Load Consumption: | 207 g/Kw.h |
| 50%(Prime Power) Load Consumption: | 216 g/Kw.h |
| Oil System |
| Total Oil Capacity: | 50L |
| Oil Consumption: | ≤ 4g/kwh |
| Cooling System |
| Total Coolant Capacity: | 91L |
| Thermostat: | 82-93 °C |
| Max Water Temperature: | 104 °C |
| | | | | | | | | |
| ALTERNATOR DATA |
| Brand and Model: | Kaijieli TWG II 354C |
| Prime Power: | 500 KVA |
| Frequency and Speed: | 50Hz and 1500RPM |
| Connecting Type: | 3 Phase and 4 Wires, "Y" type connecting |
| Power Factor: | 0.8 |
| Protection Grade: | IP22 |
| Altitude: | ≤ 1000m |
| Exciter Type: | Brushless, self-exciting, with AVR |
| Insulation Class, Temperature Rise: | H/H |
| | | | | | | | | |
| GENERATING SET DATA |
| Voltage Regulation: | ≥ ±5% |
| Voltage Regulation, Stead State: | ≤ ±1% |
| Sudden VoltS Warp(100%): | ≤ +25% |
| Sudden Voltage Warp(Sudden Increase): | ≤ -20% |
| Voltage Stable Time: | ≤ 6S |
| Frequency Regulation, Stead State: | ≤ 5% |
| Frequency Waving: | ≤ 0.5% |
| Sudden Frequency Warp(100%): | ≤ +12% |
| Sudden Frequency Warp(Sudden Increase): | ≤ -10% |
| Frequency Recovery Time: | ≤ 5S |
| Open Type Size: | 3450 ( mm ) *1350 ( mm ) *1980 ( mm ) |
| Open Type Weight: | 4130 kg |
| Container Type Size: | Standard 20ft Container |
| Container Type Weight: | 6430kg |
