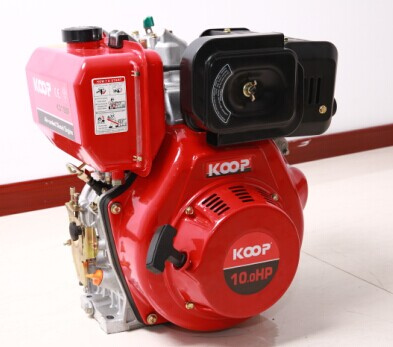

Diesel Engine (KD186F/FE)
1. EPA approved powerful output.
2. Light and handy in structure.
3. Simple installation & stable operation.
4. Fuel-saving, quick starting
5. Low noise & convenient maintenance.
6. Green power environmentally friendly.
7. Wide application, such as generating sets & water pump sets
Model
|
KD 186F /FE
|
Type
|
Vertical, 1-cylinder, 4-stroke, air-cooled
|
Combustion system
|
Direct injection
|
Bore× stroke [mm(in)]
|
86×70 (3.39×2.76)
|
Displacement [L(cc)]
|
0.406 (406)
|
Compression ratio
|
19:1
|
Rated power [KW/rpm]
|
5.7/3000,6.3/3600
|
Rated power [HP/rpm]
|
7.7/3000,8.6/3600
|
Rated speed (rpm)
|
3000/3600
|
Starting system
|
F: Recoil starter; E: Electric starter
|
Fuel tank capacity [L(US.gal)]
|
5.5 (1.45)
|
Lube capacity [L(US.gal)]
|
1.65 (0.44)
|
Fuel consumption [g(ml)/KWh]
|
3000rpm: 275 (376)
|
3600rpm: 281 (385)
|
Fuel
|
0 (summer), -10 (winter) diesel oil
|
Lube
|
SAE10W30 (above CC grade)
|
Overall dimension [mm(in)](L×W×H)
|
420×440×495 (16.53×17.32×19.49)
|
Net weight [kg(lbs)]
|
Recoil starter type: 48 (105.6)
|
Electric starter type: 53 (116.6)
|
Rotation direction (view from flywheel)
|
Clockwise
|
KOOP is a pioneer enterprise which involves in the research and manufacture of small power engine and standby power system. The core team consists of industrial senior technology experts and management elites, who acquire the advanced design ability as well as abundant experience in internal combustion engine, electrical and electric field. After many years' efforts, with Changzhou KOOP Power Machinery Co., Ltd., Changzhou KOOP Imp. & Exp. Co., Ltd., and Changzhou Powermart Imp. & Exp. Co., Ltd. As sub-companies, KOOP has become a leading manufacturer of engine power industry in China.
Changzhou KOOP Power Machinery Co., Ltd., the manufacturing base of KOOP Group, which locates in the California Technology Park, Changzhou Development Zone, Jiangsu, China, is a modernized garden-like factory with convenient traffic and beautiful environment. The company has a construction area around 20000m2, including 5000m2 none-dust workshop and large logistics center, with an annual production capacity of 50, 000 air-cooled diesel engines and generator sets.
From the many years passed to now, KOOP has always been following the concept of 'Technology as priority, Quality as foundation'. Every product is elaborately manufactured and strictly tested according to standard, to ensure its high quality when delivered to customer. At present, the company has established and perfected the quality management system in accordance with TS16949 standard. KOOP will make continuous efforts to ensure the products quality and plant the quality as culture into the hearts of our staff. At the same time, KOOP will feed back our customers with best quality and price through design innovation, scientific management and lower cost.
KOOP is making ceaseless efforts to build itself the best engine power supplier in China. We are willing to develop with all the partners and create a bright future together.
