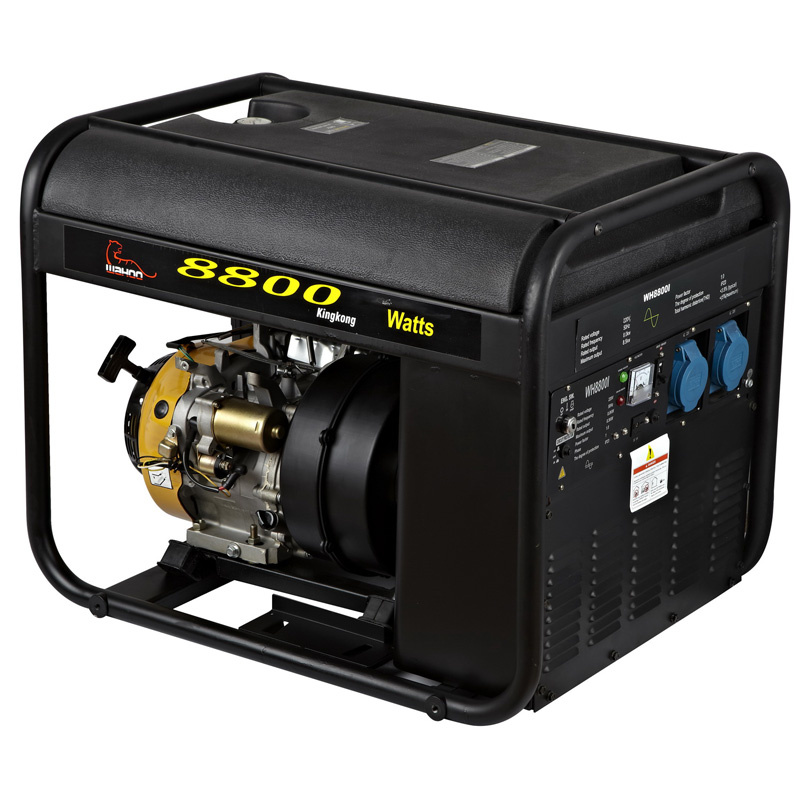

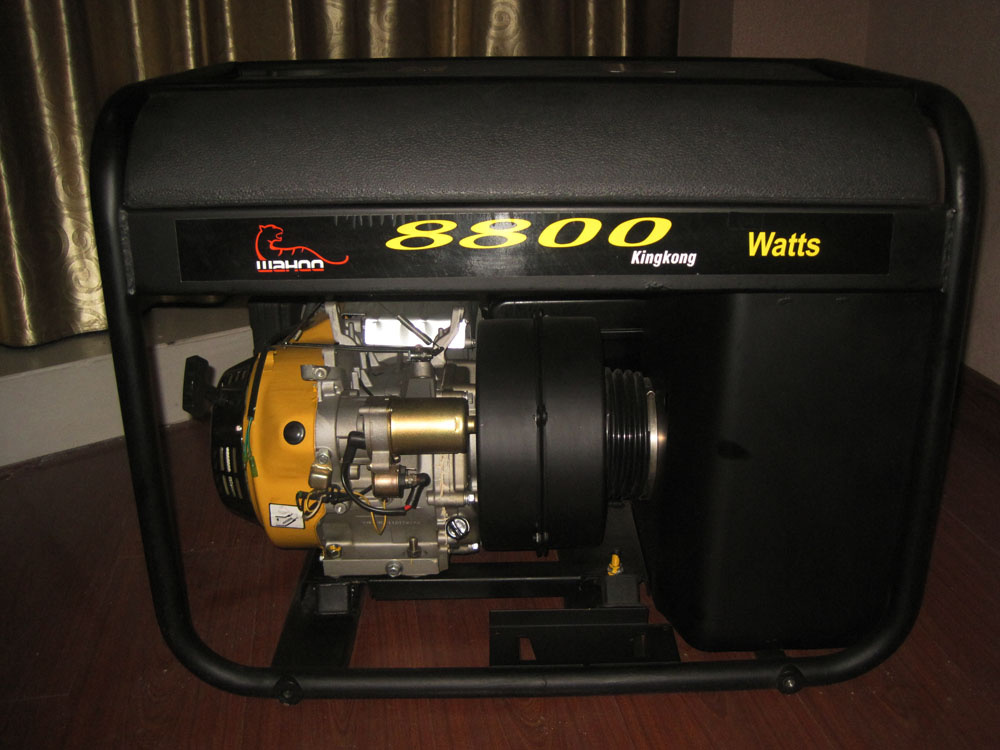

Wahoo inverter generator 405CC(14HP) OHV engine provides worksite reliability
8000watts peak output, 8500watts rate output
Low oil shut-off protects engine
Circuit breaker protect generator and application
Super quiet muffler reduces engine noise
Weather Protected Control Panel protects your control panel from rain, dirt, dust and debris.
Model No. |
WH8800i |
Rated frequency(Hz) |
50 |
Rated voltage(V) |
230 |
Rated output power(kW) |
8.0 |
Max. output power(kW) |
8.5 |
Rated rotation speed(rpm) |
3000 |
DC output |
12V 8A |
Power factor |
1.0 |
Phase number |
singe |
Noise level dB@7m |
70-72 |
Fuel tank (L) |
40 |

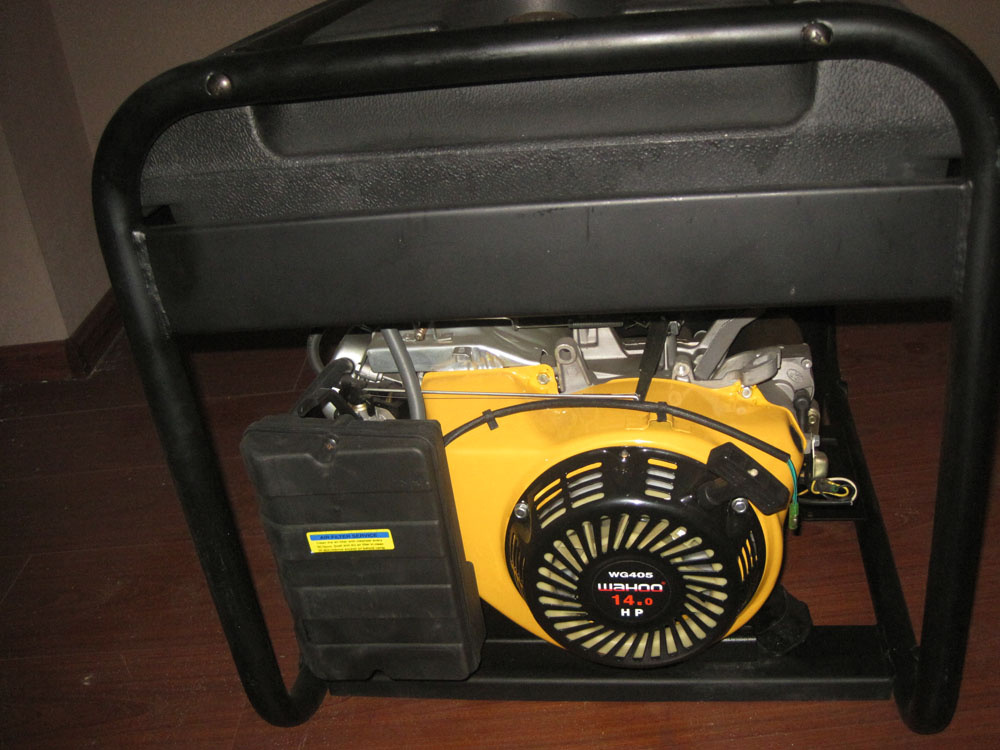

Engine model |
WG405 |
Engien type |
Single cylinder, 4-stroke, air-cooled, OHV, gasoline engine |
Displacement (cc) |
405 |
Compression ratio |
8.5: 1 |
Rated rotation speed(rpm) |
14/3600 |
T. C. I. |
With |
Spark plug |
E7TC |
Starting system |
Recoil starter |
Rotation direction |
Clockwise |
Fuel type |
Automotive unleaded gasoline |
Lube oil brand |
SAE10W30 (above CC grade) |
Low oil alarm system |
With |
|
|
|
|
Packing |
|
|
|
Packing: natural carton box |
|
|
|
Net Weight(kg) |
112 |
Gross Weight(kg) |
115 |
Outer-Carton(mm) |
Length |
Width |
Height |
820 |
620 |
650 |
Container Type |
20FT |
40FT |
40HQ |
QTY |
|
|
|
