Professional generator/OEM factory in Guangzhou
Stock available
SGS SONCAP
Trade Terms of Products
Generator Warranty | 1800 hours or 1 year subject to the ealier one. |
Delivery Items | FOB,CNF,CIF,EXW,Delivery Guangzhou |
Delivery Time | 15-20 days after receiving advanced payment. |
Generator MOQ | 1PCS |
Package | PE Film+Pearl Wool+Iron Frame (standard export packing) |
Certificate | SGS;Cummins Authorized Factory;TUV;Soncap |
Port | Guangzhou,Shenzhen,Shanghai |
Payment | T/T Cash or Western Union |
Please give detail needs in your inquiry, so that we can make power solutions for you. |
Description of Products

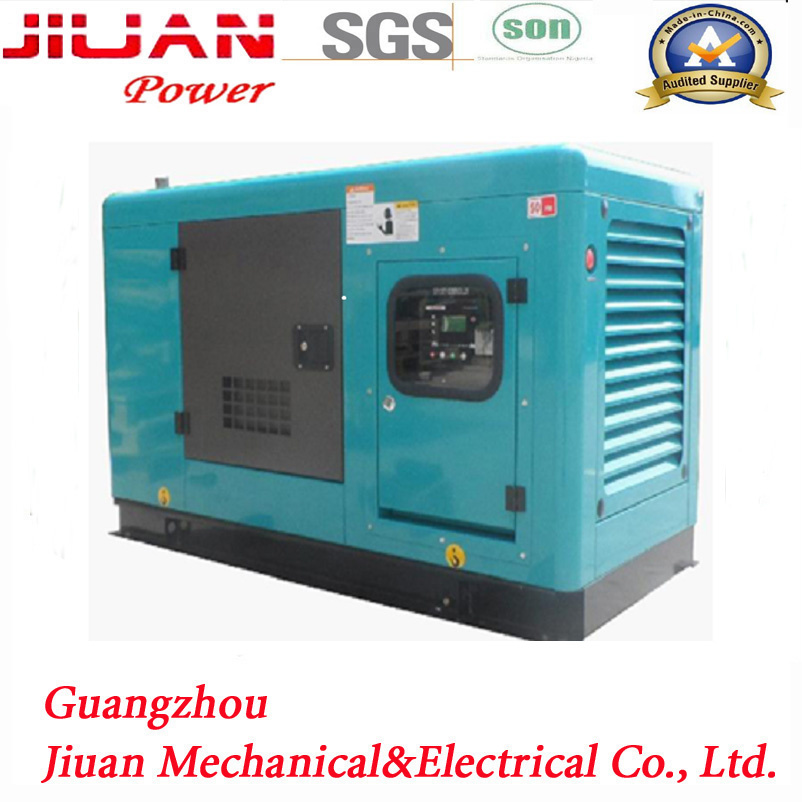

China Brand Generator
Model | CDC40kva |
Generator Set Power | 40KVA |
Generator Powered by cummins Engine |
Diesel Engine Model | 4BT3.9-G2 |
Engine Characters | Water-cooled, in line, 4-cYDle, direct injection, 1500rpm |
Bore x Stroke (mm) | 102*120 |
Rated Output | 11kw/13.75kva |
Fuel Consumption (g/kw.hr) | 262 |
Lube Consumption (g/kw.hr) | 2.72 |
Compression Ratio | 18 |
Starting | Electric (12V) |
ALTERNATOR MODEL | Stamford copy PI144J |
Rated Power | 40KVA |
Voltage (V) | 220/380 240 |
Current (A) | 1 4 |
FreYuency (Hz) | 50 |
Power Factor (cos ) | 0.8 |
Brush/Brushless | Brush less |
Dimensions (LxWxH) mm | S: 2300*1000*1400 2600*1100*1650(super silent) |
Gross Weight (KGS) | 600 |
20FT | 12 PCS |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
