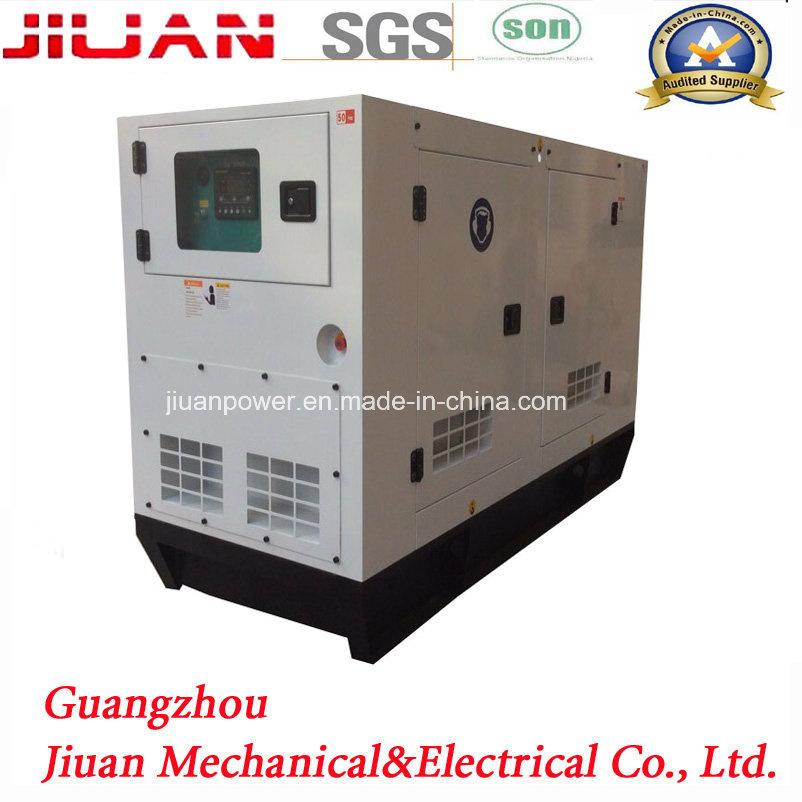

Cdy10kVA Chinese Yangdong Super Silent Water Cooled Diesel Electric Generator (CDY10kVA)

Cdy10kVA Chinese Yangdong Super Silent Water Cooled Diesel Electric Generator (CDY10kVA)
Price: US $ 600-50000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
OEM factory in Guangzhou
SGS SONCAP
Model NO.: HYD10
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Self-Starting Diesel Generator
Output Type: AC Three Phase
Frequency: 50/60Hz
Speed: 1500/1800rpm
Rated Power Output: 10kw
Engine: Yandong 385D
Alternator: Copy Stamford Wt-164c 10kw
Controller: Harsen 3311
Noisel Level: 65dba/7m Away
Optional Parts: ATS (Automatic Transfer Switch)
Guarantee: 12month
OEM Service: Color, Logo...
Export Markets: Global
Product Description
10kw Yangdong Water Cooled Diesel Electric Generator


Features of Gen-Set powered by YANGDONG Engines (Chinese Engine):
1.12months parts Warranty Service
2. Short delivery time, as we always have FAWDE engine in stock
3. With ISO9001 & CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Copy Stamford alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz
8. Rigorous test including 50% load, 75% load, 100% load and 110% load
9. Equipped with HARSEN 3311 digital controller

Yangdong engine features
1. Yangdong engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily

Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, ENGGA, Marathon, Mecc-Alte or copy Stamford
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ± 1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Control system
1) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
2) Operation display:
3) Unit voltage, 3-phase load current and frequency display
4) Water temperature, oil pressure display
5) Fuel level, fuel temperature display
6) Audible and visual alarm lamps and buzzers
7) Starting system: DC alternator is used to start engine
8) Short circuit protection: MCCB air switch
9) Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40° C
10) Filter system: Oil, fuel and air filter
11) Accessories: Exhaust elbow, bellow, muffler
Type:YangDong series
Phase NumberSingle/Three Phase
Model:HYD10
Rated Frequence (Hz)5060
Rated output power (kVA)1010
Rated rotation speed (rpm)15001800
DC output12V
Power factor1
Noise level (dBA(@)7m)(zero load~full load)70
Structure TypeSlient type
ExcitationSelf-excitation and constant voltage(AVR)
Starter systemElectric
Engine model385D
Engine typedirect injection, water cooled, 4-stroke
Displacement [L(cc)]1.809(1809)
Alternator TypeWT-164C 10KW
Fuel tank capacity (L)40
Fuel consumption (g/kw.h)≤245
Continuous running time10H
Bore×Stroke [mm(in)]80x90
Displacement [L(cc)]1.809
Shape parameter
Overall dimension [mm(inch)]( 1750 Χ 850 Χ 1000 )
Dry weight [kg(lbs)]565 ( )
Gross Weight (kg)625

Prod Model: CDY10KVA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Generator: Cdy10kVA
Generator Alternator: Brushless with AVR
Generator Alternator Model: Stamford or Leatech
Controller: Samrtgen
Generator Standdard: Muffler
Stroke: Four Stroke
Type: Self-Starting Diesel Generator
Cooling Method: Water Cooling
Installation Method: Fixed
Output Type: AC Three Phase
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.

Our Diesel Generator Set Production Range is as follows:

* Engine (motor) for Choice

1. Cummins (USA ) 20kVA - 1500kVA

2. Perkins (UK) 8kVA-1000kVA

3. Deutz (Germany) 20kVA - 150kVA

4. ISUZU (Japanese) 20kVA - 40kVA

5. Kubota (Japanese) 7kVA-50kVA

6. Lovol (China) 20kVA - 150kVA

7. Yangdong (China) 8kVA - 40kVA

8. Weichai (China) 8kVA - 150kVA

9. Shanghai Engine

10. Yuchai Engine

* Canopy for Choice

1. Silent type (75- 80 dB(A) at 7 meters)

2. Super Silent type (65-70 dB(A) at 7 meters )

3. Open type

4. Trailer type (mobile)

5. Container Type

6. Parallel System

* Alternator for Choice

1. Stamford

2. Leroy Somer

3. Marathon

* Controller

1. Smartgen

2. Deepsea (UK Brand and imported)
