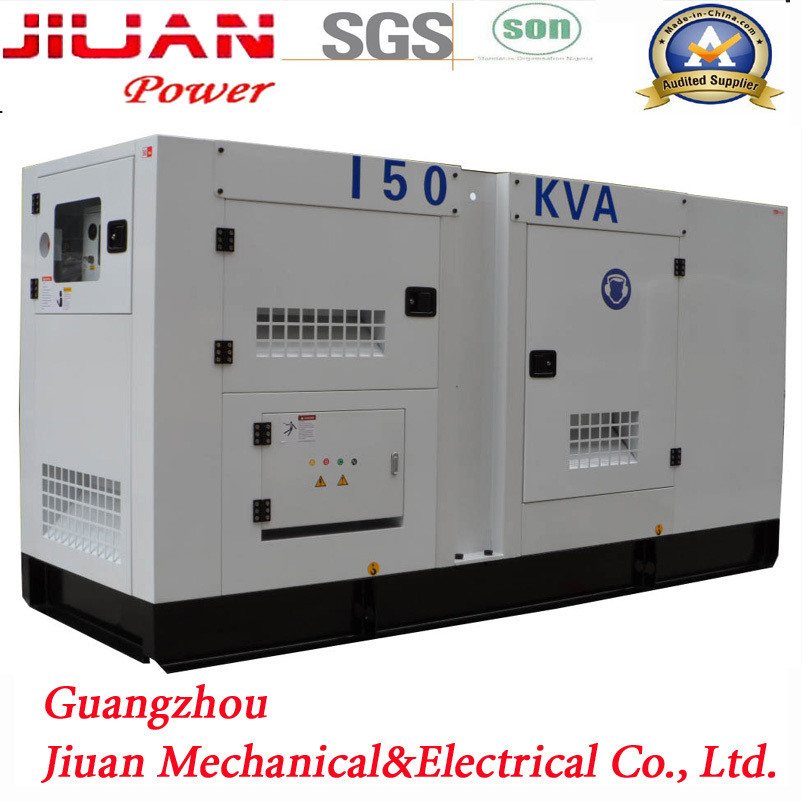

Home Generator Products Cdc120kw Cummins Engine Diesel Power Generator (CDC120KW)

Cdc120kw Cummins Engine Diesel Power Generator (CDC120KW)

Cdc120kw Cummins Engine Diesel Power Generator (CDC120KW)
Price: US $ 600-50000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
Professional generator/OEM factory in Guangzhou
Stock available
SGS SONCAP
10kVA, 60kVA, 100kVA. 150kVA, 200kVA, 250kVA, 300kVA. 600kVA are available

Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: JIUAN
Model Number: CDC150kVA
Output Type: AC Three Phase
Speed: 1500/1800rpm
Frequency: 50/60Hz
Rated Power: 150kVA
Rated Voltage: 110V
Rated Current: 91A @ 380V
Diesel Generator: Cummins Generator 150kVA
Cummins Generator 150kVA
Diesel Generator factory in Guangzhou
Generator Noise: SUPER SILENT 65 dB(A) at 7 meters
Generator Engine: 6CTA8.3-G2
Generator Engine Displacement: 3.9 LG
Generator Alternator: Brushless with AVR
Generator fuel tank: 50 L
Generator fuel consumption: 13 L/H at full loading
60kVA Generator controller: Smartgen 6110/6120
Packaging & Delivery
Packaging Details: Standard Export Packing (Ironframe or pollywood)
Delivery Detail: 10days
Specifications

Cummins Generator Diesel
1. Power 20-1200kVA
2. Auto or manual start
3. Silent, super silent or open frame type
4. OEM factory



Cummins Generator 150kVA
CUMMINS OEM Factory in City GUANGZHOU
CUMMINS Generator (Cummins diesel generator) power range 20-1200kVA

JIUAN Generator production range as follows:

Diesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine: Cummins, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator: Stamford, Marathon, Leroy Somer etc.

Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400, 220/380, 110V, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
MODELCD-C134kw/168kva
Powered by Cummins Engine
Prime Power (60HZ)134kw/168kva
Standby Power (60HZ)145kw/180kva
Power Factor0.8 (Lagging)
Phase Wires3-phases 4-Wires
Start ModelElectric
ProtectionLow oil-pressure, High water temperature,
Over-speed, Over-current
Engine ModelCummins 6CTA8.3-G2
Cylinders6
Cylinder ArrangementL
Bore x Stroke(mm)114X 135
Compression Ratio16.5:1
Speed1800rpm
Cooling MethodWater – cooled
Starting Method24V DC electrical start
25% Full Load Diesel Consumption (L/H)13
50% Full Load Diesel Consumption (L/H)21
75% Full Load Diesel Consumption (L/H)31
100% Full Load Diesel Consumption (L/H)42
Engine Displacement (L)8.3
Inspiration  (L)Turbocharged Intercooler
Lube Volume  (L)24.3
Coolant Volume  (L)28
Noise (Db)≤ 95
Alternator ModelStamford copy 274E
Alternator Power134kw/168kva
Voltage380v/220v
ProtectionIP23
Voltage Regulation±4%
Insulation ClassH
Voltage ControlAVR
Net Weigh (KGS)2150
Dimensions (L x W x H) mm2800*1200*1800 (S)
40FT Container  4 units (S)
OptionalATS (auto transfer switch)
Prod Model: CDC120KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electrical Generator Model: Cdc150kVA
Electrical Generator Engine: 6CTA8.3-G2
Electrical Generator Engine Brand: Cummins
Electrical Generator Alternator: Stamford
Electrical Generator Alternator Brand: Newage Stamford or Leadteach
Controller Brand: Smartgen or Deepsea
Controller System: Auto
Generator Cylinder: 6
Voltage: 220V/380V
Stroke: Four Stroke
Type: Self-Starting Diesel Generator
Cooling Method: Water Cooling
Installation Method: Fixed
Output Type: AC Three Phase
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.

Our Diesel Generator Set Production Range is as follows:

* Engine (motor) for Choice

1. Cummins (USA ) 20kVA - 1500kVA

2. Perkins (UK) 8kVA-1000kVA

3. Deutz (Germany) 20kVA - 150kVA

4. ISUZU (Japanese) 20kVA - 40kVA

5. Kubota (Japanese) 7kVA-50kVA

6. Lovol (China) 20kVA - 150kVA

7. Yangdong (China) 8kVA - 40kVA

8. Weichai (China) 8kVA - 150kVA

9. Shanghai Engine

10. Yuchai Engine

* Canopy for Choice

1. Silent type (75- 80 dB(A) at 7 meters)

2. Super Silent type (65-70 dB(A) at 7 meters )

3. Open type

4. Trailer type (mobile)

5. Container Type

6. Parallel System

* Alternator for Choice

1. Stamford

2. Leroy Somer

3. Marathon

* Controller

1. Smartgen

2. Deepsea (UK Brand and imported)
