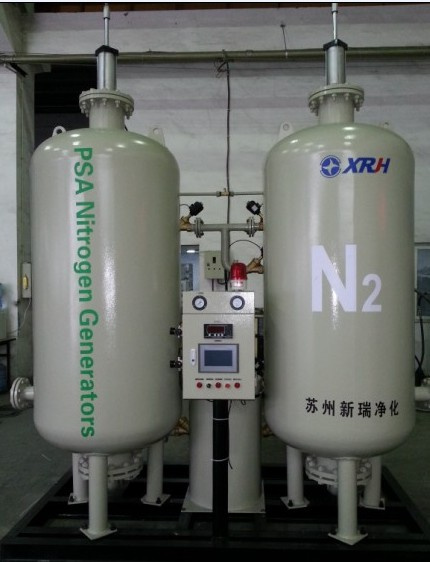

Carbon molecular sieve nitrogen gas plant is based on the technology of PSA or Pressure Swing Adsorption.
Ambient air, having being compressed and purified to remove oil, water and dust, enters the adsoption swing adsorping device with two adsorption towers filled with carcon molecular sieve(CMS). Carbon molecular sieve is acted as the adsorbent. The compressed air flow to the adsorption tower from the bottom to up. At higher pressures, CMS has a higher affinity for oxygen and trace ammount of water vapor. So in the process, oxygen molecular is adsorbed, while nitrogen flows out of the upper side of adsorption tower and then enters the buffer tank. After a period of time, the CMS in the adsorption tower is saturated by the oxygen adsorbed. At this time, regeneration is needed. It is realized by stopping adsorbing step and releasing pressure in the adsorption tower. Adsorption and regeneration are conducted alternatively in the two adsorption towers to ensure the consecutive output of nitrogen gas.
This kind of nitrogen gas plant possess the properties of simple technology, low space requirement, quick start up, simple maintenance&operation, good applicability, high automation, low operation cost, low investment, etc.
Turn Key Packages is availabe from our company, inclusing air compressor, air buffer tank, filters, refrigerated dryer, the PSA nitrogen generator, nitrogen storage vessel.
The compressor package is included, unless customers have available plant air to supply the PSA nitrogen generator.
The filters and refrigerated dryer offer the air treatment for PSA nitrogen generator. They ensure that only cleanand dry compressed air can enter the PSA adsorption towers.
The PSA nitrogen generator utilizes pressure swing adsorption technology. Two adsorption towers are filled with CMS. Programmable Logic controller(PLC) simply operates the process valves(solenoid valves and pneumatic valves are which is world famous brand) on a cyclic basis, for automatic stop/start. Nitrogen/oxygen analyzer can monitor the flow rate of product gas continuously.
In order for higher purity nitrogen ( as high as 99.999% or 99.9995%), the purifying unit can be added to the PSA generation unit. There three kinds of purifying methods of our company, one is by hydrogenation, one is by carbon deoxidization, and the third is highly efficient de-oxidization.
Suzhou Xinrui Purification Equipment Co., Ltd is a share-holding high-tech enterprise, which is located in Xuguan Industrial Park in New & High-tech Zone of Suzhou. Specializing in researching&producing, developing, designing, producing, manufacturing and selling as well as services of all kinds of industrial gas equipment, it provides professional industrial gas resource and matching products.
The company, always sticking to the concept of "people-oriented, practical-minded and innovation, customer foremost and quality first", is keeping on exploring actively and developing new crafts and technologies and constantly bringing in advanced technologies and scientific achievements home and broad. Several unique technologies of the company, such as Molecular sieve filling technology and systemic fully automatic technology, are widely used in dominating field of Petrochemical, chemical fiber, heat treatment, metallurgy, glass, food, medicine, electronics, national defense and aerospace, so on and so forth. Through new and advanced technologies, stable and reliable quality, rapid and professional service, strict and effective management, the company can provide the customers with more valuable techniques and products. Xinrui products bring in service concept from the beginning of designing, while sale is only the beginning of customer service. Taking clients as center, Xinrui reinforce each service work and fully implement the "customers satisfying project" to provide each single customer with professional, rapid and satisfying service.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
