HMain Features
Suit for: Motorcycle, Car, Light Truck

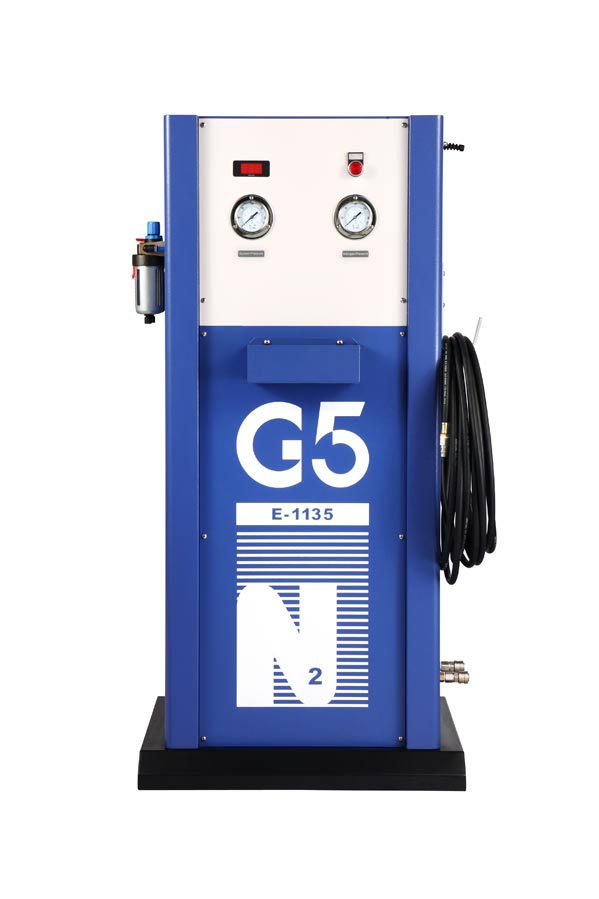

E-1135 Technical Data Summary
Dimensions (Height*Width*Depth)
1255mm*700mm*435mm
49.4''*27.6''*17.1''
Net Weight 87kg/191.8lbs
Gross Weight 104kg/229.3lbs
Packing Size(Height*Width*Depth)
1380mm*730mm*510mm
54.3''*28.7''*20.1'''
Power Requirement 100-240VAC 50/60Hz
Power Consumption 20VA
Operating Temperature Range -20/-4° F to 70 / 158° F
Compressed Air Input Range 87-123PSI/6-8.5bar /600-850kPa
Nitrogen Purity 95-99+%
Nitrogen Output
50L/min(1.8cfm)@116PSI/8bar/800kPa
Absorption pressure
Maximum Nitrogen Pressure in Tank 102PSI/7bar/700kPa
Specifications
1. Generates nitrogen from your compressed air
2. Auto Shut-Off
3.2 Pre-Filters
4.50L/13.2gal (us) internal nitrogen storage tank
5.1 Nos. *10m/32.8ft standard hose with 2 quick couplers to connect the unit and your inflation gun
6. Nitrogen purity test port
Operation Steps
1. Connect air hose to your tyre inflation gun - supplied separately.
2. Remove the tyre valve core to exhaust the residual air from the tyre.
3. Re-fit tyre valve core.
4. Inflate the tyre to the target pressure with your tyre inflation gun.
We Zhuhai EST Corporation is specialized in manufacturing Nitrogen Tyre Inflation System and Automatic Air Tyre Inflator with brand name of G5.
EST Corporation is one of the earliest PSA Nitrogen Tyre Inflation System manufacturer in the global market. EST Corporation is the technical leader in this industry.
There are more than 30, 000 clients in over 60 countries using G5 Nitrogen Tyre Inflation System throughout the world.
Our monthly production capacity in our 6, 000m2 factory reaches 800 Nitrogen Tyre Inflation Systems and 1000 Automatic Air Tyre Inflators.
Constantly Innovation, Enhance Versatility, Superior Performance are reflected in our products. We warmly welcome you, our esteem customers to place us G5-branded order or OEM and ODM orders.
