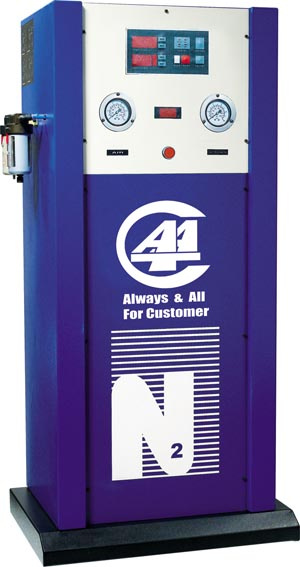

Detailed Product Description
Technical Data Summary
Dimensions:
Height 1260mm/49.6"
Width 620mm/24.4"
Depth 430mm/16.9"
Power Requirement 110Vac/220Vac 50/60HZ
Power Consumption 30VA
Operating Temperature Range -20/-4 degree F to 70 / 158 degree F
Compressed Air Input Range 87-145PSI/6-10bar /600-1000kPa
Nitrogen Purity ≥95%
Nitrogen Output 58L/min(2.0cfm)@116PSI/8bar/800kPa
Absorption pressure
Maximum Nitrogen Pressure in Tank
102PSI/7bar/700kPa
Operation Range 15-72PSI, 1.0-5bar, 0.1-0.5MPa, 1.0-5kgf/cm2
Resolution 1PSI, 0.1bar, 0.01MPa, 0.1kgf/cm2
Units of measurement PSI, bar, MPa, kgf/cm2
Specifications:
Generates nitrogen from your compressed air
2 Pre-Filters
50L/13.2gal(us)internal nitrogen storage tank
Auto-start inflation
Remain at last setting
Audible and visual end of the cycle signal indicators
LED display
1 No. *10m/32.8ft standard hose with single clip-on open type chuck
To increase the purity of nitrogen in the tire, the valve cores must be removed manually and allow all the air to escape from the tire before inflate tire with nitrogen, firstly the unit will pump the air 0-99 seconds from the tire by the internal vacuum generator, then inflate nitrogen to the target setting tire pressure.
Shanghai AA4C AUTO Maintenance Equipment Co., Ltd is professional auto maintenance equip ment manufacture since 1995. AA4C means Always and All for(4) Customer. Our factory covers an area of more than 20, 000 squares meters and with our up-today manufacturing facilities, high-tech industrial, product developing manufacturing sales and perfect after-service with a total capital of more than ten millions. For many years our company has been awarded as "Enterprise with High Reputation" "Enterprise with High Credit in Quality " and "China National Grade AAA Enterprise, etc. Besides, Wehave passed ISO9001, authenticated by 2000 International Quality Control System.
Tire changers, Wheel balancers, car lifts are the goods produced by ourself, other goods are supplied by our cooperated factories in order to decrease customers' trouble to buy many goods from many factories. We are mainly dealing AA4C products development, product design as well as OEM/ODM manufa-cturing...Our Product has been shipped to worldwide (Europe, East Europe, North & South America, Africa, Australia, Middle East, Asia as well as different province in China).
Facing the future opportunites and challenges, AA4C will be still adhering to "Seeking higher & being practical" trying to enlarge the intercourses and cooperation with other producers in the fieid both at home and aboad; And exert ourselves to pay back our clients with high-quality products and perfectafter-service. Our goal is: Always and All for(4) Customer.
