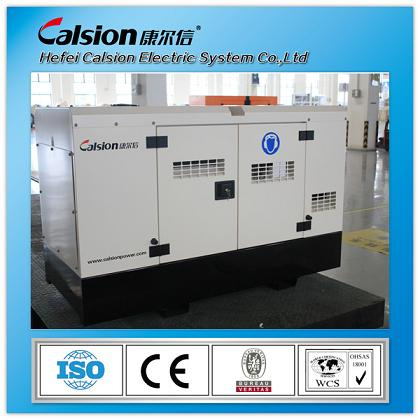

Calsion silent type price diesel generator 15kva
China generator Supply Scope:
1, Various Voltage available but coupled alternator model may be changed. For detailed inquiry, pls contact Calsion sales.
2, Faraday(Stamford) Brushless Alternator, Single Bearing, Flange Connection, IP23, Insulation Class H, AVR Fitted. (Stamford, Engga and Marathon for Option)
3, China generator with 8 Working Hours Base Fuel Tank(for the both of open & silent genset ≤ 650kVA prime, only Base Frame for other models), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
4, China generator with Delixi Breaker, ABB Breaker for Option
5, Complete Operation/Maintenance Manuals for Generator/Engine/Alternator, China generator testing report
6, Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.
Optional China Generator Accessories:
Engine | Heaters | | |
Alternator | Single phase, three phase | Brushless, carbon brush | High Voltage |
Control System | Key Start/Auto Start Controller | Remote Controller | ATS Controller Synchronization Controller |
Fuel System | Outside Fuel Tank | | |
Generator Type | Weatherproof/Soundproof Type | Container Type | Trailer/Vehicle type |
Spare Parts | Oil filter, air filter, tank pad, Triangle Belt, tools and Engine Parts Drawing List, etc |
Compliance Standards:
To BS4999/5000 pt 99, VDE 0530,UTE5100, NEMA MG1-22, CEMA, IEC 34,
CSAA22.2, AS1359, BSS 5514, ISO 3046 and ISO 8528
Calsion Diesel Generator Set
CM Series Selection Table
Generator Model | Rated Power Output 50Hz/400V/3P4W | Engine Model MTU | Alternator Model (Leroy Somer) |
KW | KVA | A |
C275M | 220 | 275 | 417 | 6R1600G10F | LSA46.2 L9 |
C313M | 250 | 313 | 474 | 6R1600G20F | LSA46.2 VL12 |
C370M | 296 | 370 | 562 | 8V1600G10F | LSA47.2 VS2 |
C410M | 328 | 410 | 622 | 8V1600G20F | LSA47.2 S4 |
C450M | 360 | 450 | 683 | 10V1600G10F | LSA47.2 S5 |
C500M | 400 | 500 | 759 | 10V1600G20F | LSA47.2 M7 |
C600M | 480 | 600 | 911 | 12V1600G10F | LSA47.2 L9 |
C660M | 528 | 660 | 1002 | 12V1600G20F | LSA49.1 S4 |
C640M | 512 | 640 | 972 | 12V2000G25 | LSA49.1 S4 |
C775M | 620 | 775 | 1177 | 12V2000G65 | LSA49.1 M75 |
C910M | 728 | 910 | 1382 | 16V2000G25 | LSA49.1 L11 |
C1000M | 800 | 1000 | 1519 | 16V2000G65 | LSA49.1 L11 |
C1310M | 1048 | 1310 | 1990 | 12V4000G21R | LSA50.2 L7 |
C1600M | 1280 | 1600 | 2430 | 12V4000G23 | LSA50.2 VL10 |
C1700M | 1360 | 1700 | 2582 | 12V4000G23 | LSA51.2 S55 |
C1900M | 1520 | 1900 | 2886 | 12V4000G63 | LSA51.2 M60 |
C2160M | 1728 | 2160 | 3281 | 16V4000G23 | LSA51.2 L70 |
C2500M | 2000 | 2500 | 3798 | 20V4000G23 | LSA51.2 VL95 |
C2650M | 2120 | 2650 | 4025 | 20V4000G23 | LSA53.1 M80 |
C2910M | 2328 | 2910 | 4420 | 20V4000G63 | LSA53.1 M80 |
C3125M | 2500 | 3125 | 4747 | 20V4000G63L | LSA54 M75 |
CP Series Selection Table
Generator Model | Rated Power Output 50Hz/400V/3P4W | Engine Model UK engine | Alternator Model (Leroy Somer) |
KW | KVA | A |
C9P | 7.2 | 9 | 12 | 403A-11G | LSA40 VS1 |
C13P | 10 | 13 | 18 | 403A-15G1 | LSA40 VS2 |
C20P | 16 | 20 | 28 | 404A-22G | LSA40 M5 |
C30P | 24 | 30 | 43 | 1103A-33G | LSA42.2 L9 |
C45P | 36 | 45 | 64 | 1103A-33TG1 | LSA42.3 M7 |
C60P | 48 | 60 | 86 | 1103A-33TG2 | LSA42.3 L9 |
C100P | 80 | 100 | 144 | 1006TG2A | LSA44.2 VS45 |
C150P | 120 | 150 | 216 | 1006TAG2 | LSA44.2 M95 |
C200P | 160 | 200 | 288 | 1306C-E87TAG3 | LSA46.2 M5 |
C250P | 200 | 250 | 360 | 1306C-E87TAG6 | LSA46.2 L6 |
C300P | 240 | 300 | 432 | 1606A-E93TAG5 | LSA46.2 VL12 |
C410P | 328 | 410 | 591 | 2206C-E13TAG3 | LSA47.2 S4 |
C500P | 400 | 500 | 721 | 2506C-E15TAG2 | LSA47.2 M7 |
C660P | 528 | 660 | 952 | 2806A-E18TAG2 | LSA49.1 S4 |
C800P | 640 | 800 | 1154 | 4006-23TAG3A | LSA49.1 M75 |
C1000P | 800 | 1000 | 1443 | 4008TAG2A | LSA49.1 L11 |
C1350P | 1080 | 1350 | 1948 | 4012-46TWG3A | LSA50.2 L7 |
C1720P | 1376 | 1720 | 2482 | 4012-46TAG3A | LSA51.2 S55 |
C2050P | 1640 | 2050 | 2958 | 4016TAG2A | LSA51.2 M60 |
C2015P | 1612 | 2015 | 2908 | 4016-61TRG2 | LSA51.2 M60 |
C2250P | 1800 | 2250 | 3247 | 4016-61TRG3 | LSA51.2 VL90 |
Established in 1996, Hefei Calsion Electric System Co., Ltd. is specialized in the development, manufacture, marketing and service of generators. Our company is located in Hefei Economic and Technological Development Zone, with a professional R&D center, a modern production base and an excellent test system. Our production base covers an area of 20, 000 square meters with the annual production capacity of 10, 000 units.
Insisting on the policy of "oriented by market demand, driven by technical innovation", Calsion offers all kinds of emergency power systems, common-used power solutions and system integrated construction services. Our products include diesel generators, gasoline generators, gas generators, radiation systems, control systems, distribution systems, etc. Our generator sets include open type, silent type, trucks, trailers, mobile gensets, lighting towers and so on, with the power range from 1.5kW to 3, 200kW.
With global sales networks, Calsion offers products and services to customers in Southeast Asia, the Middle East, Africa, Europe, America and other countries and regions. Our products with the first-class reliability and durability can be used in any harsh environment and high-altitude condition. Our products are widely used in national defense, energy, electricity, transportation, communication, finance, medical industry, tourism, real estate, mines, factories, etc.
As an OEM partner of MTU, Volvo, Cummins, YANMAR, Leroy Somer and Stamford, Calsion has long-term close partnerships with world-famous groups.
Calsion has a strict quality management system and got ISO9001, ISO14001 and OHSAS18001 certificates. With strict testing capability, excellent performance and brilliant quality, we also got TLC and CE certificates.
