Specifications
Universal generator avr 12A
1. Universal 7 AMP 1/2 Wave Self Excited DIP-Switch Progmmable 2. AVR for 100-150kw generator

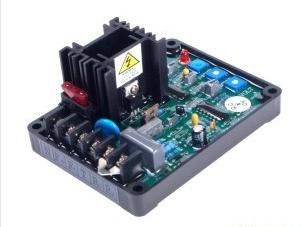

Universal Generator AVR 12A
Gavr-12A
Universal 7AMP 1/2 Wave Self Excited DIP-Switch Progmmable avr
Features
Voltage Regulation < ± 1%
220/440VAC Programmable Input
Rugged Compact Desigh
Soft Start Voltage Ramping
with Under Frequency Roll Off Protection
EMI Suppression
Built-in High Capacity 10AMP Fuse
Sensing input Voltage 110/220/400VAC, 1 phase 2 wire
Power Input voltage 100-260VAC, 1 phase 2 wire
Output voltage max 90 VDC at 240VAC input
Current Continuous 3 A, intermittent 5A for 10secs
Resistance Min. 15 ohm, Max 100ohm
Voltage Build-up residual voltage at avr terminal >5VAC
Voltage Regulation < ± 1% with 4% engine governing
Operating Temperature (-40° C to +60° C
Storage Temperatue (-65° C to +85° C
External Volts Adjutment ± 7% with 1k ohm 1 watt trimmer
EMI Suppression Internal electromagnetic interference filtering
Unit Power Dissipation Max. 8 watt
Under Frequency Protection 60Hz system presets knee point at 55Hz
50Hz system presets knee point at 45Hz
Dimensions 107mmL*82mmW*50mmH.
