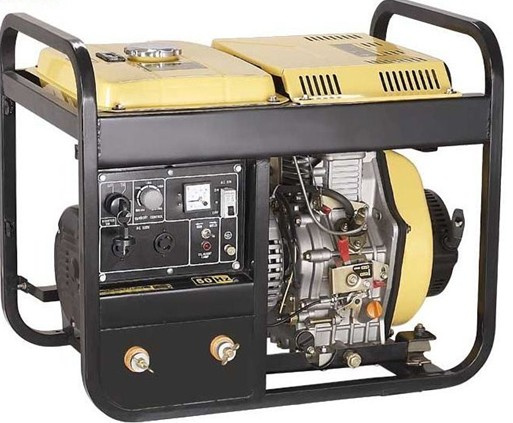

Model: JDG7500X(E)
Generator
Type: Bushless, Self-exciting, 2-poles, Single Phase
AC Output(V): 115/230, 220, 230, 240, 110, 120, 110/120, 120/240V
AC Freuency(Hz): 50/60Hz
Cont. AC Output(kVA): 6.0/6.5
Max. AC Output(kVA): 7.0/7.5
DC Output(V/A): 12V-8.3A(100W)
Insulation: F
Power Factor: 1.0
No-load Voltage(DC)(V): 50
Cont. Current(DC)(A); 180
Cont. Rated Voltage(DC)(V): 25-35
Continuous Load Rate: 60%
Continuous Load Rate(A): 80-210
Engine
Model: JD420
Type: Air-cooling diesel engine, 4-strkoe, Single-cylinder
Displacement: 420CC
Engine Speed: 3000/3600
Starting System: Electric
Max. Power Output: 15HP
Fuel Tank Capacity: 25L
Continuous Operating: 7.5/8.0
Operating Noise Level: 70.
|
Model |
600E |
6500X(E) |
7500X(E) |
|
Generator |
Type |
Bushless Self-exciting 2-poles Single Phase |
|
AC Output(V) |
50/60HZ |
|
AC Freuency(HZ) |
115/230, 220, 230, 240, 110, 120, 110/120, 120/240V |
|
Cont. AC Output(KVA) |
4.5/5.0 |
5.0/5.5 |
6.0/6.5 |
|
Max. AC Output(KVA) |
5.5/6.0 |
5.5/6.0 |
7.0/7.5 |
|
DC Output(V/A) |
12V-8.3A(100W) |
|
Insulation |
F |
|
Power Factor |
1 |
|
No-load Voltage(DC)(V) |
50 |
|
Cont. Current(DC)(A) |
180 |
|
Cont. Rated Voltage(DC)(V) |
25-35 |
|
Continuous Load Rate |
60% |
|
Continuous Load Rate(A) |
80-210 |
|
Model |
420 |
420 |
420 |
|
Engine |
Type |
Air-cooling gasoline engine, 4-strkoe, Single-cylinder |
Air-cooling diesel engine, 4-strkoe, Single-cylinder |
|
Displacement |
418cc |
420cc |
|
Engine Speed |
3000/3600 |
|
Starting System |
Electric |
Recoil/Electric |
|
Max. Power Output |
10HP |
15HP |
|
Fuel Tank Capacity |
12L |
16L |
25L |
|
Continuous Operating |
7.5/8.0 |
9.4/7.5 |
9.0/8.0 |
|
Operating Noise Level |
70 |
80 |
|
Package |
Dimension(L*W*Hmm) |
880*570*760 |
960*570*760 |
|
Net Weight(kg) |
140 |
175 |
The main products of Jindi company are Electric Motor, Alternator, Gasoline water pump, Diesel water pump, Gasoline generator and Diesel generator, for house hold, Industrial and Agricultural use. Our company has obtained ISO90001: 2000Quality Management System Certificate in 2003, and some of the products have been granted by"CE", "SONCAP", while some of the products are granded by"CQC"with"CCC" certificate.
