Brushless Excitation Generator/eco turbine generator
Specification
Type: SFW-w400-6/740
Power: 300-1200KW
Efficiency: 50Hz 60Hz
Class of insulation F
Power factor: 0.8
(1) There are two types of generators: Horizontal and vertical.
(2) The terminal voltage can reach 400V, 6300V and 10500V and the insulation class is F/F.
(3) The excitation method includes excitation of double winding shunt with SC and brushless excitation.
(4) The horizontal generator adopts steel-welded frame with public base plate, slide bearing construction. It adopts two and four fulcrums with turbine and the two form hydro-generator unit.
(5) The vertical generator adopts suspension type, bracket and hydraulic jacks which are fitted at the lower parts of rotor

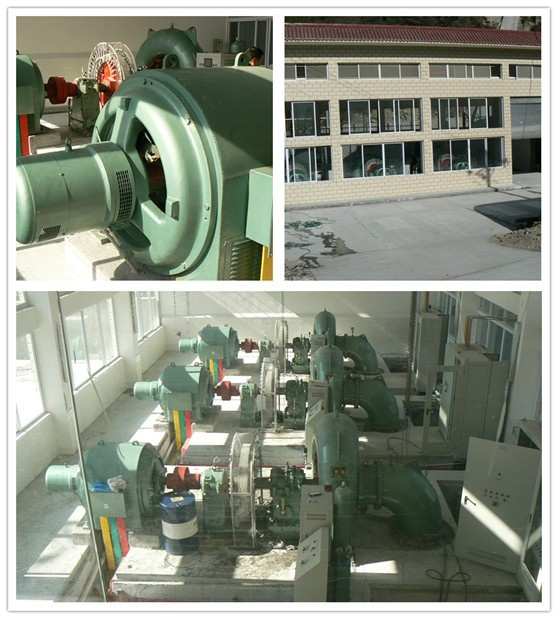

Name of the Power Station: GouKou Power Station
Parameters: Water head__45m Output: 3*800KW
Type of the water turbine: HLA551-WJ-55
Type of the generator: Brushless excitation generator
SFW-W-800kw-6/990
Hongya Power Generating Equipment to Utilities Limited, is a professional manufacturer of hydro power generating equipments. It has high quality products include mainly water turbine, generator and governor. Water turbines units with an individual capacity of 50kw~20000KW, we have jet turbines, Pelton turbines, Francis Type turbines, and axial turbines. All these products are produced and tested according to national standards, and machinery trade standards. The products have such characters as rational structure, reliable operation, high efficiency, standardized spare parts, high generalization, and convenient maintenance. They are available in every variety and model, and have reliable quality.
Hongya Power Generating Equipment to Utilities Limited has obtained the certification of ISO9001/2008, SGS certificate and is the member of Chinese Society of Electrical Industry. Products are sold all over China and exported to Albania, Nepal, Indonesia, Turkey, Vietnam and Myanma, etc
Stepping into the past and looking forward to the future, we will continuously strengthen the innovation on products and techniques, strictly control the product quality and build up more perfect after-sale service system.
