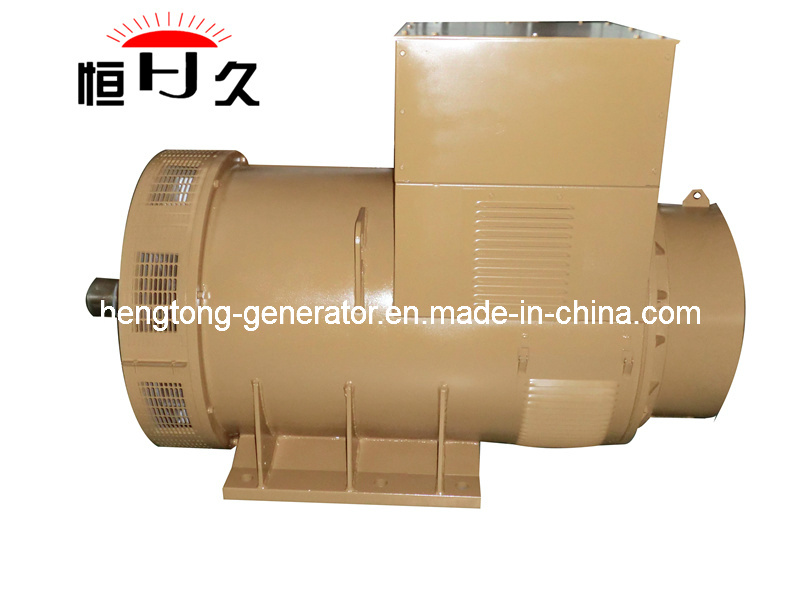

Brushless Electric Generator 450-825kVA (HJI 400-536KW)

Powerful Robust and Universal Brushless Alternator, technology authorized by Shanghai Stamford with 100% Copper Wires and 100% Rated Power Guarantee.

Original Place: Jiangsu, China ( Mainland )
Type: Stamford.
Brand Name: Hengjiu
Model No.: HJI 400-536KW
Output Type: AC Three Phase/ One Phase
Frequency: 50/ 60Hz 1500RPM/ 1800RPM
Phase/ Connecting method: Three - Phase, Four - Wires
Rated Power: 450-825kVA
Rated Voltage: 120 - 690V
Voltage Regulation: 0.5 % AVR
Bearing: Single/Double
Insulation class: H
Exciting system: Self-Excitation
Protection Class: IP23-IP44

Packaging & Delivery:
Packaging Details: Wooden, Plywood or as requirement.
Delivery Time: Less than 25 days after receiving prepayment.

Price and Payment Term:
Price Term: FOB Shanghai
Minimum Quantity: 1 Set
Supply Ability: 1000 Sets per month
Payment Term: L/C or T/T

Specifications:
2/3 Pitch winding as standard to avoid excessive neutral currents
Single or two bearings construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
Standard maintenance-free sealed bearing
IP23 as standard or higher class for optional
Standard MX321 AVR and PMG Excitation
3 Phase sending detection and + 0.5% voltage regulation.

Options & Accessories:
Winding temperature sensor RTD
Thermal resistance and winding temperature protection relay
Anti condensation heates
Air filters
Quadrature droop kit for parallel operation
Rfi suppression to ec standards
Power factor control module (PFC3)
2 pipe damage detection module
Fall excitation protection
Manual voltage regulator
Resistance temperature detector RTD
Grease lubricated bearing
IP 44 for option

SX460, SX440, SX421, MX341 or MX321 AVR
1. The main stator provides power for excitation of the exciter field via AVR
2. Output power of exciter's rotor is input to that of mains through 3-phase full wave rectifier. Two ends of the rectifier are 3. Connected with piezoresistance for restraining surge voltage and avoiding the impact caused by short circuit or parallel synchronization loss.
4. Exciter's Stator is equipped with permanent magnetic steel, it can make generator starting smoothly in any occasions.
5. Voltage regulation (0.5 %) and low frequency protection, exterior voltage adjustment of SX440, MX341 and MX321 suitable for the generator with permanent magnetic generator (PMG).

FEATURES:
1. Any permanent magnetic generators, providing invariable excitation on all occasions.
2. Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current.
3. Balanced rotor with single or two sealed ball bearings
4. Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
5. Wide range of Flange adaptor and single bearing coupling disc
6. All industrial standard generators is IP 23.
TERMINAL AND TERMINAL BOX:
The three-field generator has 12 leads brought out to the terminals in terminal box. The terminals are put on the non drive end. The box is equipped with removable panels

ENGINE ADAPTOR AND COUPLING DISC:
1. HJI Series generators have two kinds construction.
2. HJI Series single-bearing, engine adaptor: SAE0, 1, 2, 3 and 4; Coupling discs: SAE8, 10, 11, . 5, 14 and 18 are available.
3. HJI Series double-bearing, engine adaptor: SAE0, 1, 2, 3, 4 and 5 are available.

VOLTAGE REGULATION:
Voltage regulation refers to the change of voltage from non-load to with power factor ranging from 0.8 to 1 and 3%'s fluctuation of the speed of engine. Voltage is adjusted via potentiometer of AVR.
