Home Generator Products Brushless Electric Generator 25kVA (HJI 20KW)

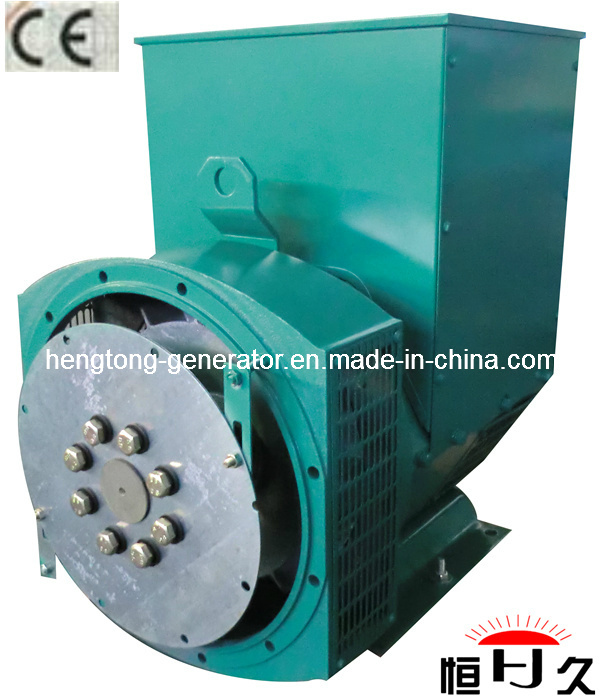

Brushless Electric Generator 25kVA (HJI 20KW)

Brushless Electric Generator 25kVA (HJI 20KW)
Price: US $ 850.00-1200.00/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Powerful Robust and Universal Brushless Alternator, technology authorized by Shanghai Stamford with 100% Copper Wires and 100% Rated Power Guarantee.

Original Place: Jiangsu, China ( Mainland )
Type: Stamford.
Brand Name: Hengjiu
Model No.: HJI 20KW
Output Type: AC Three Phase/ One Phase
Frequency: 50/ 60Hz 3000RPM/ 3600RPM
Phase/ Connecting method: Three - Phase, Four - Wires
Rated Power: 25kVA
Rated Voltage: 120 - 600V
Voltage Regulation: 0.5 % AVR
Bearing: Single/Double
Insulation class: H
Exciting system: Self-Excitation
Protection Class: IP23-IP44
Manufacturer: Jiangsu Hengtong Generator Manufacture Co., Ltd.

Packaging & Delivery:
Packaging Details: Wooden, Plywood or as requirement.
Delivery Time: Less than 25 days after receiving prepayment.

Price and Payment Term:
Price Term: FOB Shanghai
Minimum Quantity: 1 Set
Supply Ability: 1000 Sets per month
Payment Term: L/C or T/T

Specifications:
2/3 Pitch winding as standard to avoid excessive neutral currents
Single or two bearings construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
Standard maintenance-free sealed bearing
IP23 as standard or higher class for optional
Standard MX321 AVR and PMG Excitation
3 Phase sending detection and + 0.5% voltage regulation.

Options & Accessories:
Winding temperature sensor RTD
Thermal resistance and winding temperature protection relay
Anti condensation heates
Air filters
Quadrature droop kit for parallel operation
Rfi suppression to ec standards
Power factor control module (PFC3)
2 pipe damage detection module
Fall excitation protection
Manual voltage regulator
Resistance temperature detector RTD
Grease lubricated bearing
IP 44 for option

SX460, SX440, SX421, MX341 or MX321 AVR
1. The main stator provides power for excitation of the exciter field via AVR
2. Output power of exciter's rotor is input to that of mains through 3-phase full wave rectifier. Two ends of the rectifier are 3. Connected with piezoresistance for restraining surge voltage and avoiding the impact caused by short circuit or parallel synchronization loss.
4. Exciter's Stator is equipped with permanent magnetic steel, it can make generator starting smoothly in any occasions.
5. Voltage regulation (0.5 %) and low frequency protection, exterior voltage adjustment of SX440, MX341 and MX321 suitable for the generator with permanent magnetic generator (PMG).

FEATURES:
1. Any permanent magnetic generators, providing invariable excitation on all occasions.
2. Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current.
3. Balanced rotor with single or two sealed ball bearings
4. Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
5. Wide range of Flange adaptor and single bearing coupling disc
6. All industrial standard generators is IP 23.
TERMINAL AND TERMINAL BOX:
The three-field generator has 12 leads brought out to the terminals in terminal box. The terminals are put on the non drive end. The box is equipped with removable panels

ENGINE ADAPTOR AND COUPLING DISC:
1. HJI Series generators have two kinds construction.
2. HJI Series single-bearing, engine adaptor: SAE0, 1, 2, 3 and 4; Coupling discs: SAE8, 10, 11, . 5, 14 and 18 are available.
3. HJI Series double-bearing, engine adaptor: SAE0, 1, 2, 3, 4 and 5 are available.

VOLTAGE REGULATION:
Voltage regulation refers to the change of voltage from non-load to with power factor ranging from 0.8 to 1 and 3%'s fluctuation of the speed of engine. Voltage is adjusted via potentiometer of AVR

  3-phase Class H Temperature Rise (125ºC)
Voltage 50Hz 3000rpm 60Hz 3600rpm
Series Star 380 400 415 416 440 460 480
Parallel Star 190 200 208 208 220 230 240
Connection Delta 220 230 240 240 254 267 277
HJI 10 Rated Volumn 12.5 12.5 12.5 14.7 15.6 15.6 15.6
Rated Power 10 10 10 11.8 12.5 12.5 12.5
Efficiency % 72.6 73.5 74.2 71.4 71.8 72.6 73.4
HJI 12 Rated Volumn 15 15 15 17.8 18.8 18.8 18.8
Rated Power 12 12 12 14.5 15 15 15
Efficiency % 76.2 77 77.5 75 75.4 76.2 76.7
HJI 14 Rated Volumn 17.5 17.5 17.5 20.8 21.9 21.9 21.9
Rated Power 14 14 14 16.6 17.5 17.5 17.5
Efficiency % 78.4 79.1 79.5 77.3 77.7 78.3 78.9
HJI 20 Rated Volumn 25 25 25 29.6 31.3 31.3 31.3
Rated Power 20 20 20 23.7 25 25 25
Efficiency % 82 82.6 83 81.2 81.5 82.1 82.5
  1-phase Class H Temperature Rise (125ºC)
Voltage 50Hz 3000rpm 60Hz 3600rpm
Series Star 220 230 240 220 230 240
Parallel Star 110 115 120 110 115 120
Connection Delta N/A N/A N/A N/A N/A N/A
HJI 10 Rated Volumn 8.4 8.4 8.4 10 10 10
Rated Power 6.7 6.7 6.7 8 8 8
Efficiency % 67.3 67.9 68.4 64.5 65.3 66
HJI 12 Rated Volumn 10 10 10 12.4 12.4 12.4
Rated Power 8 8 8 9.9 9.9 9.9
Efficiency % 71.2 71.7 72 68.8 69.5 70.1
HJI 14 Rated Volumn 11.8 11.8 11.8 14.4 14.4 14.4
Rated Power 9.4 9.4 9.4 11.5 11.5 11.5
Efficiency % 73.6 74 74.3 71.4 72.1 72.6
HJI 20 Rated Volumn 16.8 16.8 16.8 20.6 20.6 20.6
Rated Power 13.4 13.4 13.4 16.5 16.5 16.5
Efficiency % 76.7 77.1 77.4 74.7 75.3 75.9

Prod Model: HJI 20KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power(kVA): 25kVA
Voltage(V): 120-600V
Voltage Regulation: AVR +/-0.5%
Bearing: Single or Double
Insulation Class: H
Protection Class: IP23-IP44
Output Type: AC Three Phase
Jiangsu Hengtong Generator Manufacture Co., Ltd.Is located in Yangzhou city, (3 hours distance by car from Shanghai) which is established in 1986.As a manufacturer, we offer quality Brushless Alternator and Generator Set for Domestic and Overseas Market for more than 20 years.Up to now the total area of factories and offices is almost to 80, 000 M2 and 180 staffs work in our company.

Hengtong started the research and manufacture of 6.5-1760KW brushless AC Synchronous Alternator at 2004 and we've already developed the annual production to 10, 000 sets.Hengtong also produces quality Generator Sets with world class diesel engine such as Cummins, Volvo, Perkins, Daewoo, Styer, Deutz, Shangchai, Wudong, Paou, Jichai, Weichai and so on.Because of stronger research and engineers' hard working, Our Generator sets are applicable as normal and backup power source to communication project, oil industry, airport, air defense, highway and real estate industry.

Our brand "Hengjiu" has been awarded as a Yangzhou famous brand at 2006 which encourages all Hengtong people to offer a better service for our worldwide customers.

For advantaged equipment, standard workshop and high skilled workers, our company has got CE, ISO, CQC, CCS Certificates and other honors.Furthermore, Hengtong has professional sales and after-sales service team for Domestic and Overseas Markets.Under the guidance of the core philosophy "Customer and Service First", Hengtong Generator does provide top quality products and perfect service for all customers.
