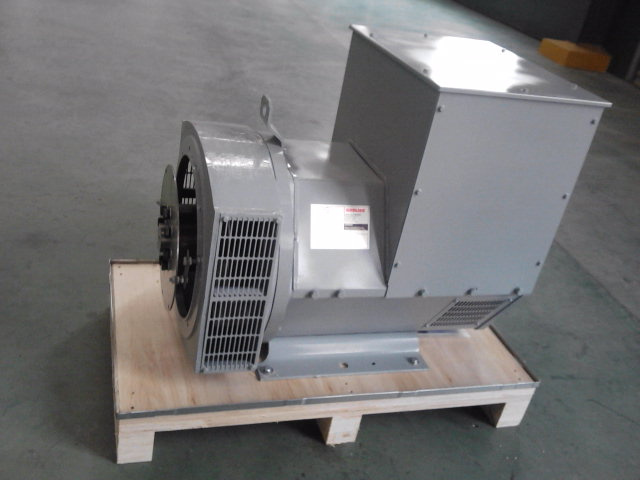

Brushless AC Alternator (JDG Series)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Basic info
Model number:JDG274G
Output type;AC Three phase
Additional info:
Trademark:GODLIKE
Packing:in strong Plywood
Standard:ISO9001,CE
Origin:China
specifications:
1)Power range:190kva/152kw
2)Stamford type of electric generator
Featurers
1)AVR ( Automatic Voltage Regulator ) controlled
2)12 wire reconnectable winding
3)100% famous brand copper wire
4)2/3 pitch windings avoid excessive neutral currents
5)permanent Magnet Generator (PMG) is available as an option
6)Easily coupled with power networks or other generator set
7)Balance rolor with single or two sealed ball bearing available
8)wide range of flange adaptor and single bearing coupling disc.
parameters
1)Rated voltage 400V.110-690V for option
2)Three phase / single phase for option
3)double bearing / single bearing for option
3)50HZ/1500rpm / 60hz/1800rpm for option
4)Insulation class H
Standards & Certifications
1) GODLIKE generators are comformity to international standards of IECBS 5000,IEC34
2) GODLIKE generators are certified of CCC CE ISO9001 SGS
Solutions
1) Easily coupled with industrial & marine ,diesel & gasoline engines ,world first-class of Cummins ,Lovol, deutz, man, yanmar, doosan
2)Widely used in industrial, commercial real estate, hospital, hotel, railway, telecommunication, datacenters and mining etc.
Warranty
2years,GODLIKE POWER DHL new parts for replacement within 3 days upon customers complaint.
|
Model |
50hz / 1500rpm/3 phase |
60 hz/ 1800rpm/ 3 phase |
|
190 ~ 454V |
110 ~ 240V/230 ~ 690V |
|
KVA |
KW |
KVA |
KW |
|
|
|
|
|
|
|
JDG 274C |
100 |
80 |
125 |
100 |
|
JDG 274DS |
120 |
96 |
146 |
117 |
|
JDG 274D |
125 |
100 |
150 |
120 |
|
JDG 274ES |
140 |
112 |
178 |
142 |
|
JDG 274E |
150 |
120 |
187.5 |
150 |
|
JDG 274F |
160 |
128 |
206 |
165 |
|
JDG 274G |
190 |
152 |
225 |
180 |
|
JDG 274H |
200 |
160 |
255 |
204 |
|
JDG 274J |
230 |
184 |
300 |
240 |
|
JDG 274K |
250 |
200 |
312.5 |
250 |
| Prod Model: |
JDG274G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specialize: |
100% Famous Material |
| 50Hz Prime Power: |
From 100kVA to 250kVA |
| 60Hz Prime Power: |
From 125kVA to 312.5kVA |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Micro-Computer Control Automatic Diesel Generator |
| Output Type: |
AC Three Phase |
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
