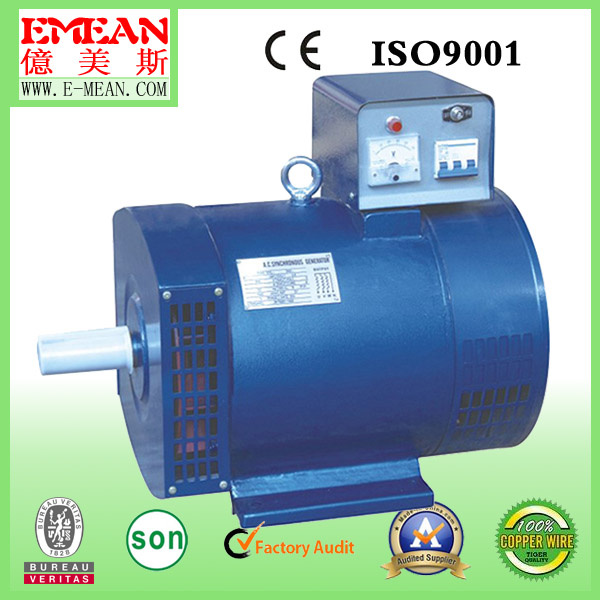

Brush Alternator Copy Stamford Alternators 100% Copper Wire St/Stc

Brush Alternator Copy Stamford Alternators 100% Copper Wire St/Stc
Price: US $ 145-235/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 30/Piece
Pay Type: L/C,T/T

TYPEOutputCurrent(A)Pole NumberSychronous Speed(r.p.m)
KVAKW
Single phase 230V 50Hz/1500r/min
ST-2228.741500
ST-3331341500
ST-55521.841500
ST-7.57.57.532.641500
ST-10101043.341500
ST-12121252.241500
ST-15151565.341500
ST-2020208741500
Three phase 400V 50Hz/1500r/min
STC-333.85.441500
STC-556.3941500
STC-7.57.59.413.541500
STC-101012.518.141500
STC-12121521.741500
STC-151518.827.141500
STC-20202536.141500
STC-303037.554.141500
STC-40405072.241500
STC-505062.590.241500
The ST series generators are mainly designed to serve as power source of small capacity which supply electricity for lighting purpose in ships as well as for household electric devices used in towns or villages. The generators are excellent in appearance, consolidate in construction and easy to maintain. Dimensions adopt IEC standard. They are suitable for Australia, Europe, America and other countries if the end covers are mabel B.

The generator adopt harmonic wave self-excitation constant voltage system and automatic voltage control excitation constant voltage system, both of them have excellent dynamic characteristic performance, convenient and reliable in operation

Copper wire three phase Generator/ Alternator (STC)

1. OEM, Factory Price
2. ISO9001, CE, SGS, CCC Certificate
3. Quality first, Service first

(1)Copper STC Generators/ Alternators are to be used in town, the countryside, work sites, mountains and pasture lands as a electric power source for lighting purpose. It can also be used as a reserved power source for emergent case.
(2)Copper STC Generator/ Alternator is of drip-proof with rotary field type and harmonic excitation system, making use of the star connection with neutral point.
(3)The rated line voltage is 400V; Phase voltage is 230V; Frequency is 50Hz; Power factor is 0.8(lag). We can provide the generator with 60Hz and the other voltage according to request.
(4)Copper STC Generator/ Alternator can be coupled with a prime mover directly or through V-belt, rotating right or reverse continuously at the rated speed.
(5)When the revolution slip of prime mover is 3% and the load varies in the range of 0-100%, the power facter is 1.0-0.8, the constant voltage keeps excellent. After a sudden change (increase or decrease) of load, the generators will soon return to their normal working state.
(6) Copper STC Generator/ Alternator can directly start an unloaded squirrel cage induction motor without any starting devices.
1)ST STC Series AC Synchronous Generator
2)single phase or three phase
3)CE, ISO9001 certification



Professional generator manufactrurer with R&D capacity
Reliable quality, reasonable price, desirable service
Tell us your demand, provide what you want
Contact us now, let's make a deal.........
EMEAN LIGHT UP YOUR LIFE!



Prod Model: ST-10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output: 10kw
Phase: Single Phase
Dimension: 700X440X590mm
N.W.: 130kgs
G.W.: 141.5kgs
Qty/20ft: 148PCS
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Fuzhou Emean Electric Machinery Co., Ltd. is one of the biggest enterprises, lies in "China Electrical Machinery and Appliances City"--Fuan. EMEAN is a private enterprise established in 2003, which is a comprehensive electrical machinery manufacturing company integrating product designs, production, marketing and service.

Rely on scientific and technological development, we continue to provide users high-tech products, which is our consistent pursuit. On the basis of absorbing the foreign advanced technology, we have already fetched in 10 lines advanced international machinery production. The main products manufactured by our company consist of more than 10 series, over 100 types, involving generators, diesel generating sets, gasoline generating sets and concrete cutter, of which all of our products have been passed the national attestation CCC, CE certificate, Nigeria Soncap and EPA certificate.

EMEAN is a young enterprise, but she owns the fresh and great-hearted blood, which make her more charmful. "Quality assurance, user first" is the agreement of EMEAN executives. Communicate with the domestic industry, scientific research institutions exchange and cooperation so as to improving the quality, such as: Design and production, commissioning and maintenance. Then occupy the market, and expand the scale of the company. We have been moving forward to a more prosperous achievement under the fierce competition.

Today, EMEAN staff pursue the guidelines--"aggressive, realistic, strict and unity" to blaze new trails. We make technology as the core, quality as life and users to God, dedicated to provide you with the highest & cost-effective products and meticulous after-sales service in order to shape a bright future.
