Brown Gas Generator runs on water and electricity only! It produces a stable hybrid hydrogen-oxygen gas, with many unique properties. The generator provides a superior gas for most conventional brazing, soldering and metal cutting, heating treating, boiling operations.
Brown Gas generator Multi-functions:
1. Burn with other fuels together for boilers, cooking stoves, melting metals.
2. Cutting iron, steel
3. Glass & Ceramic Fabrication, Welding, Cast Iron, Fusing, Soldering, Heating, Glass, Quartz,
4. Car engine carbon clean
Brown Gas Generator Advantages:
· Economy: It's up to 90% less expensive than acetylene in gas costs.
· A Healthier Working Environment: No toxic fumes and zero emissions of carbon based emissions.
· Operational Safety: Brown Gas is light and dissipates rapidly into the atmosphere compared to acetylene, which is dense and seeks ground level.
· Environmentally Friendly: Brown Gas produces zero pollution when burning, while hydrocarbon-based fuel gases pollute the environment.
· New Applications: In addition to performing most conventional brazing, soldering and cutting operations, 2000 l/h brown Gas Generator can be used in many exotic cutting, brazing, and fusing applications as well as glass treatment and blowing applications that cannot be performed by conventional methods and processes.
Technical Data Sheet of Kingkar oxy-hydrogen generator in boiler combustion:
| Model | Kingkar-3000 | Kingkar-5000 | Kingkar-7000 | Kingkar-10000 |
| Voltage(V) | 380 ±10%,50/60Hz,three phase |
| Rated capacity(KVA) | 9 | 15 | 22 | 31 |
| Working pressure(Mpa) | ≤0.2 |
| Relative humidity(%) | ≤90 |
| Rated gas output(L/H) | 3000±10% | 5000±10% | 7000±10% | 10000±10% |
| Water consumption(L/H) | 1.6 | 2.7 | 3.8 | 5.8 |
| Cooling way | Air cooling |
| Insulation class | F |
| power protection grade | IP2S |
| Flame temperature(T) | 800-3200 adjustable |
| Working medium | Filtered water or deionized water or soft water |
| Working | continuous |
| environment temperature(T) | 0-40 |
| Dimension(L×W×H)mm | 1020*770*1270 | 1250*830*1720 | 1300*930*1820 | 1500*930*1940 |
| Weight(KG) | 293 | 567 | 653 | 894 |
Thank you for visiting. Any questions, please feel free to contact us. I am Mr.Huang Renhua here.
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.

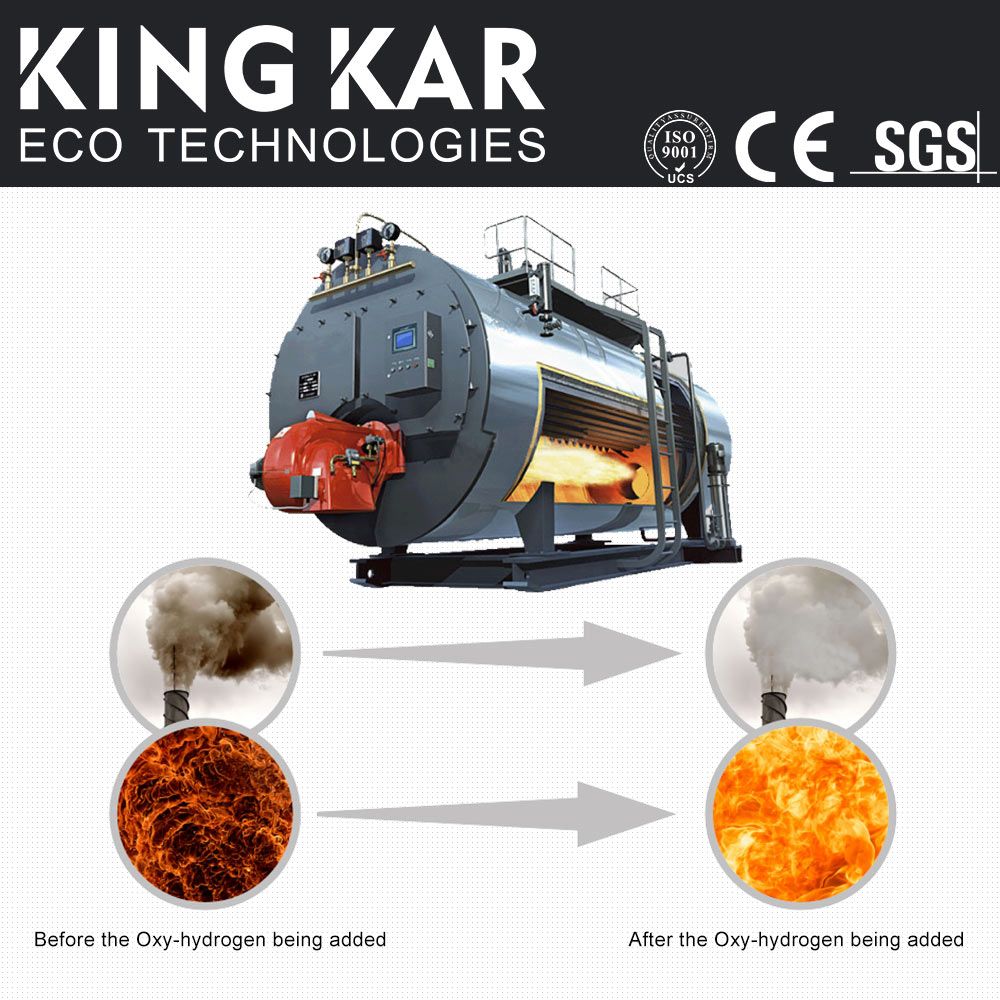

KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
