Brotie Oxygen Plant

Brotie Oxygen Plant
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

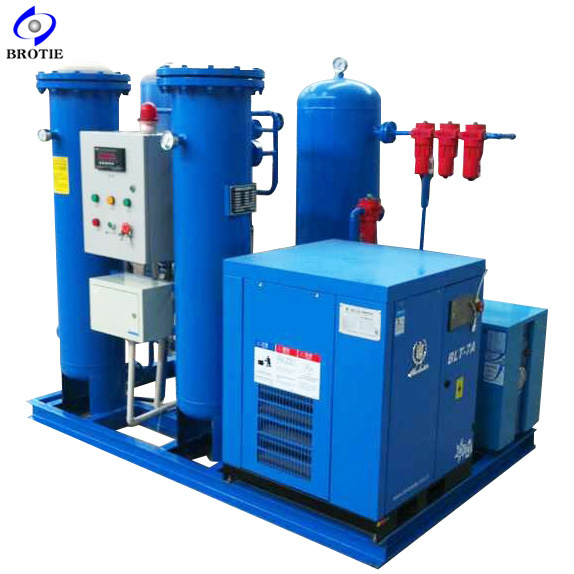

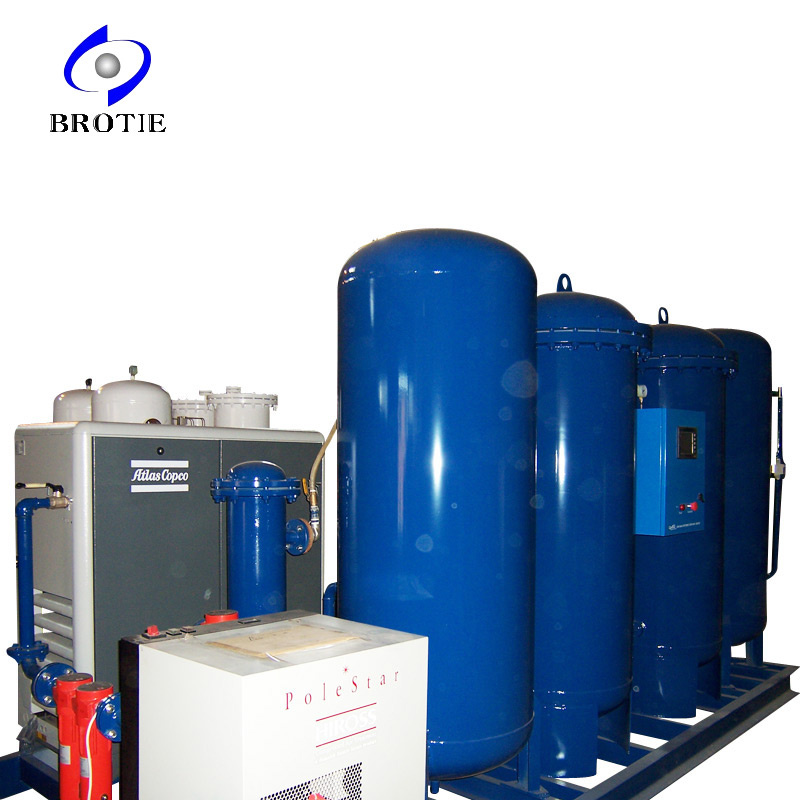

BROTIE PSA Oxygen Generator(BRHO/BRIO)

Principles:

Customized PSA oxygen generator, purity 90-95% with no purification system, capacity from 1Nm3/h-50Nm3/h, pressure from 0.1bar to 150bar, uses zeolite molecular sieve as sorbent, produces oxygen by making use of the PSA principle. Professional energy saving design provided with each of BROTIE oxygen generator system, low air consumption means more economical for customers. The BRO-CONTROL system is provided, all the parameters can be read and the operation can be actualized by one touch only. Alarming system can work automatically when the purity, the capacity and pressure is lower than required, it means more reliable and more humanistic for customers.

Applications:

1. After the oxygen generator,  the oxygen purification system is equipped to guarantee the quality of the O2 and removing dust, eliminating bacteria and stabilizing pressure to ensure the oxygen outputted stably and meeting medical standards.
2. Users only need to turn the start/stop button to gain the oxygen with designing required flow capacity and purity within 30 minutes.

3. Single line and double lines types are available for option. Users are suggested to choose the single line type when they only require a stable flow capacity; choose double lines when demand is unstable and sometimes meet extra peak values.

BRHO series is for medicla purpose.
BRIO series is for industrial purpose.
All the models can be customized, please contact for free.

Model Construction Dimensions Inlet& Outlet Weight(Kg)
BRHO-1 Four towers 620*505*1260 G1/4; G1/4 226
BRHO-2 Four towers 1000*900*1500 DN15; G1/2" 418
BRHO-3 Four towers 1000*950*1580 DN15; G1/2" 515
BRHO-4 Four towers 1200*1100*1800 DN15; G1/2" 622
Two towers 1050*600*1700 DN15; G1/2" 433
BRHO-5 Four towers 1300*1200*1750 DN25; G1/2" 694
Two towers 1100*600*1620 DN25; G1/2" 459
BRHO-6 Four towers 1300*1200*1850 DN25; G1/2" 749
Two towers 1100*600*1850 DN25; G1/2" 502
BRHO-7 Four towers 1400*1300*1800 DN25; G1/2" 853
Two towers 1200*650*1650 DN25; G1/2" 586
BRHO-8 Four towers 1400*1300*1850 DN25; G1/2" 937
Two towers 1200*650*1820 DN25; G1/2" 640
BRHO-10 Four towers 1500*1400*1850 DN25; G1/2" 1076
Two towers 1300*700*1750 DN25; G1/2" 758
BRHO-15 Four towers 1700*1550*2120 DN40; G1" 1352
Two towers 1400*750*2120 DN40; G1" 923
BRHO-18 Four towers 1800*1650*2060 DN40; G1" 1531
Two towers 1550*800*2060 DN40; G1" 1062
BRHO-20 Four towers 1800*1650*2250 DN40; G1" 1618
Two towers 1550*800*2250 DN40; G1" 1130
BRHO-25 Four towers 1800*1650*2700 DN50; G1" 1899
Two towers 1550*800*2700 DN50; G1" 1327
BRHO-30 Four towers 1900*1750*2700 DN50; G1" 2166
Two towers 1650*850*2700 DN50; G1" 1524
BRHO-35 Four towers 2100*1900*2600 DN50; G1" 2424
Two towers 1750*900*2600 DN50; G1" 1686
BRHO-40 Four towers 2100*1900*2900 DN50; G1" 2633
Two towers 1750*900*2900 DN50; G1" 1847
BRHO-45 Four towers 2200*2000*2850 DN65; G1" 2831
Two towers 1850*950*2850 DN65; G1" 2167
BRHO-50 Four towers 2100*1950*3100 DN65; G1" 3179
Two towers 1850*950*3100 DN65; G1" 2325
BRHO-55 Four towers 2300*2100*3000 DN65; G1" 3328
Two towers 1900*1050*3000 DN65; G1" 2411
BRHO-60 Four towers 2300*2100*3210 DN65; G1" 3599
Two towers 1900*1050*3210 DN65; G1" 2615
Prod Model: BRIO, BRHO
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Purity: 93-95%
Working Principle: Psa
Pressure: 1-150bar
Optional1: Oxygen Cylinder Filling System
Optional2: Bro-Control System
Touch Screen: Siemens
Flow Meter: SMC
Language: Chinese, English, Russian
Color: Blue or White
Gas Source: Gas
Registered in Beijing, BROTIE is specialized in air separation solutions, gas boosting solutions, gas analyzing and related industrial gas solutions. Our products include PSA nitrogen generators, PSA oxygen generators, totally oil-free gas compressors, gas analyzers and related equipments.

So far, BROTIE has extended its business scope from simple gas equipment to gas supply so as to provide particular product, technical consultations and solutions for global users in gas and gas equipment field. Owing to our self-motivated passion in researching and developing gas technologies with the cooperation of some professional researching institutes, our prompt and customer-oriented services have reached many countries over the world. You can find BROTIE in United States, Russia, Kazakstan, Tajikistan, Turkey, Philippines, Korea, Bolivia, Brazil, Colombia, Czech, Germany, Kenya, Korea, Turkey, India, Palestine, Senegal, Singapore, Indonesia, Iran, Saudi Arabia, Austrilia, Cyprus, Netherland, Thailand, Sudan, Surname, Ecuador and so on.

With the strategic location of BROTIE, we have got continuous development of technologies and more than 20 long-term partner suppliers located in China such as Siemens, Kobelco, Atlas Copco, Domnick Hunter, Mitsubishi, CKD and SMC. So, BROTIE is able to be one of the best air separation solution manufacturers and one of the most comprehensive Chinese industrial source solution providers for customers at every corner of the world.

Understanding that every application, location and every customer's demand is unique, BROTIE experienced engineers work closely with the customer to analyze the special requirements and the working conditions to provide gas generation systems which meet the specifications of flow, purity and pressure, and customize the system to meet every special requirement.

We believe in that the never stop improvement of ourselves and the support from the cooperators, professional, technical on-top and service concept, BROTIE is continuously supplying more and more professional solutions of on-site gas generation for customers.
